Southbend (Middleby) 4603CC-3GR Ultimate Gas Ranges
Description

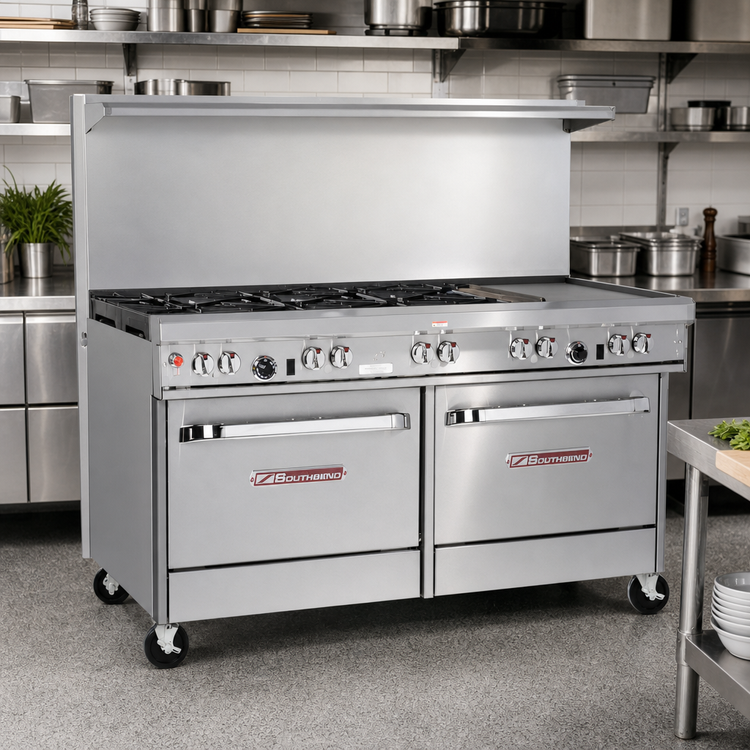

Southbend Ultimate 60" Gas Restaurant Range
(4) 33,000 BTU Star/Sauté Burners • 36" Right-Side Griddle • Dual Stainless Cabinet BaseEngineered for high-volume kitchens that demand maximum versatility, the Ultimate Series 60" range condenses 196,000 BTU of cooking power, built-to-last construction and smart storage into a single, space-saving footprint.
Key Features

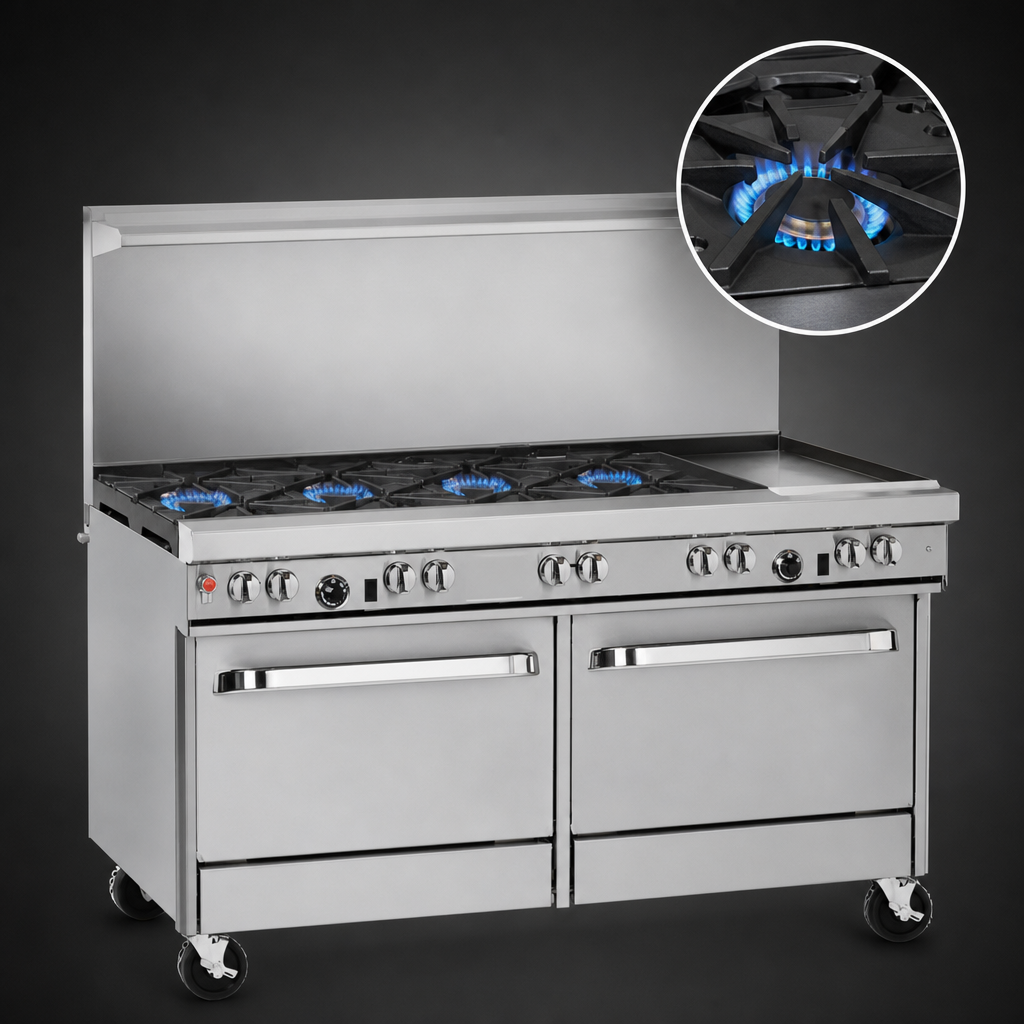

- Four 33,000 BTU cast-iron star/sauté burners deliver even, edge-to-edge heat.
- 1/2" thick, 36" polished steel griddle (right-side) with raised splash—ideal for breakfast items, searing proteins or toasting buns.
- Two full-width stainless steel cabinet bases keep cookware and sheet pans close at hand.
- 22 ½" flue riser with heavy-duty integrated shelf for plating or small equipment.
- Front-mounted gas shut-off and factory-installed regulator for quick, code-compliant hook-up.
- All-stainless front, sides, shelf and 6" adjustable legs stand up to daily abuse.
- Standing pilots on open burners for reliable, instant ignition.
- cCSAus, CSA Flame, CSA Star & NSF certifications for safety and sanitation.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specs
| Series / Type | Ultimate Restaurant Range – Cabinet Base |
|---|---|
| Overall width | 60 ⅞" (1543 mm) |
| Overall depth | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Riser height | 22 ½" (572 mm) with shelf |
| Total input | 196,000 BTU/hr (Natural gas) |
| Open burners | (4) Star/Sauté, 33,000 BTU each |
| Griddle | 36" W × 27" D, smooth steel plate, manual control – 64,000 BTU |
| Base | (2) Stainless steel cabinets with adjustable shelves |
| Gas connection | 3/4" NPT rear; 7" W.C. Nat. / 11" W.C. LP |
| Construction | Stainless front, sides, shelf & legs |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor (commercial use) |
Need casters, quick-disconnect hose or rear step-up burners? Ask—most Southbend factory options can be added before shipment.
Why Star/Sauté Burners?
- Radial port pattern blankets pan bottoms for fewer hot spots.
- One-piece, clog-free cast iron for lifetime durability.
- High 33,000 BTU output tackles rapid boils and flash-sauté work with ease.
Installation & Use Notes
- Use a 3/4" I.D. ANSI Z 21.69 flex hose when mounting on casters—add a restraining device to prevent strain.
- Limit cookware over 12" Ø to rear grates to avoid overheating the front rail.
- Scrape and oil the griddle after each service to preserve the polished surface.
Upgrade your cookline with the power, capacity and reliability chefs trust—order the Southbend Ultimate 60" Range today and keep every ticket on time.
