Southbend (Middleby) 4603CC-2TR Ultimate Gas Ranges
Description

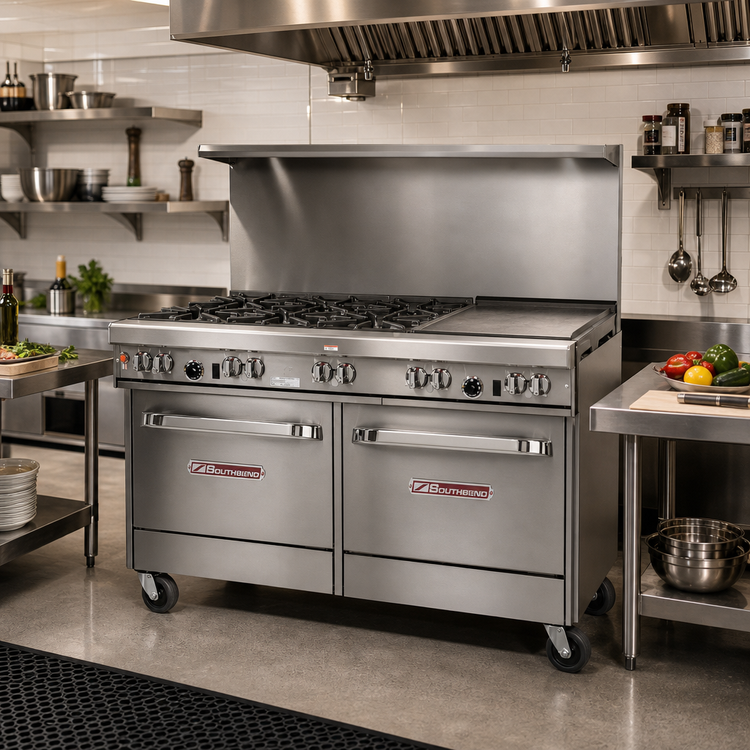

Southbend Ultimate 60″ Gas Restaurant Range
6 Star/Sauté Burners • 24″ Right-Side Thermostatic Griddle • Dual Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Ultimate Series packs a massive 246,000 BTU of cooking power into a rugged, all-stainless 60-inch frame. Whether you’re flash-sautéing, pan-searing, or running an all-day breakfast griddle, this range delivers the precision, capacity, and durability chefs demand.
Key Features

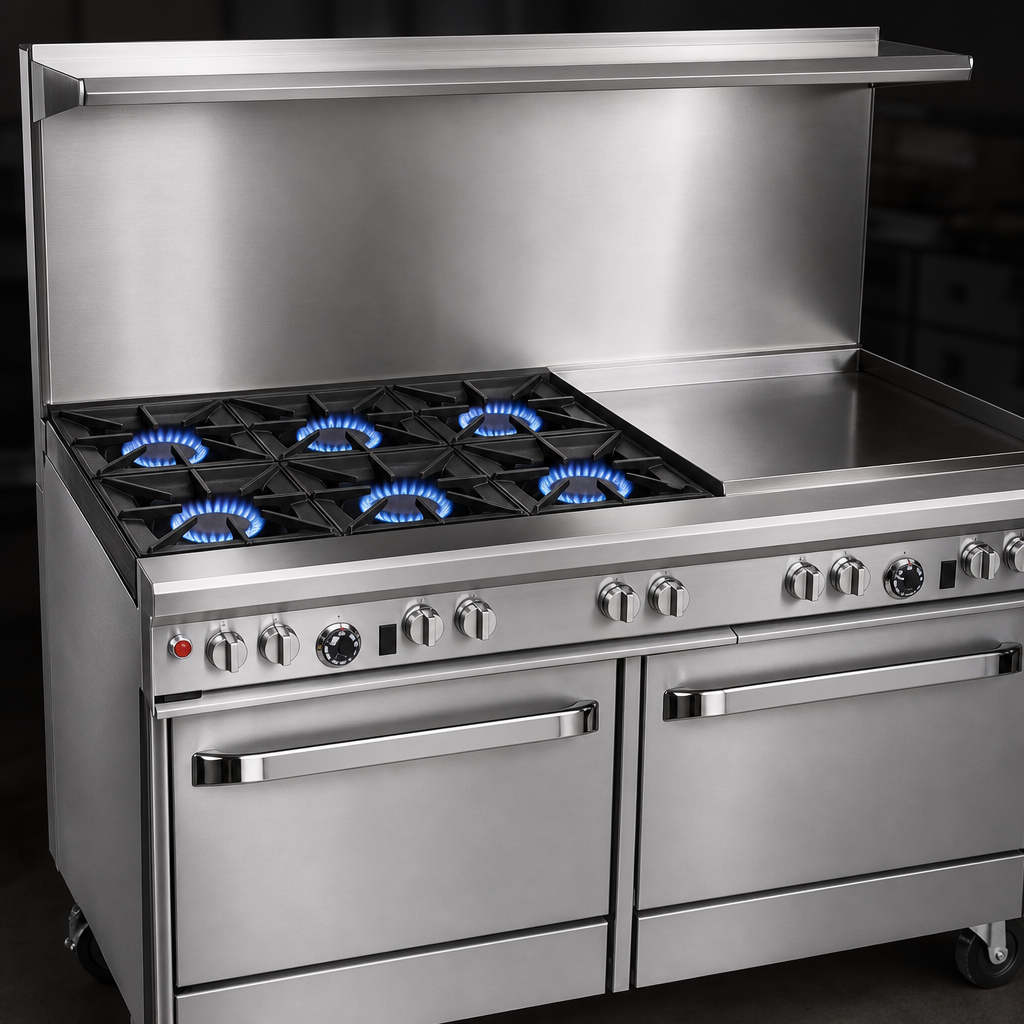

- Six 33,000 BTU cast-iron star/saute burners for even, edge-to-edge flame distribution.

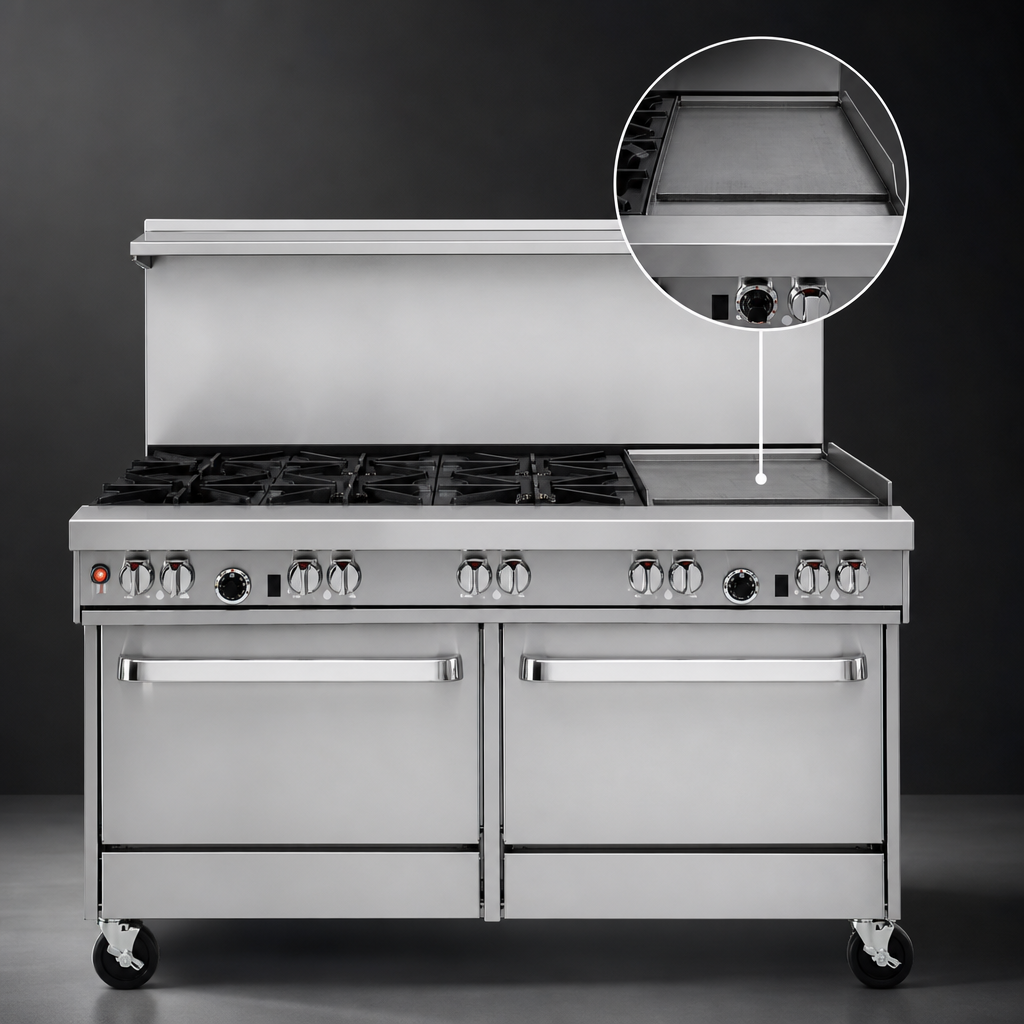

- 24″ right-hand griddle with ½″ polished steel plate and independent thermostatic controls (175 °F – 550 °F).
- Total input: 246,000 BTU/hr (natural gas).
- Two full-width stainless steel storage cabinets keep sheet pans, stock pots, and smallwares organized.
- 22 ½″ flue riser with heavy-duty stainless shelf—ideal for holding pans or warming plates.
- 4″ deep stainless front rail for plating and prep.
- Removable cast-iron grates accept stock pots up to 14″ on the rear sections.
- Front-mounted manual gas shut-off and factory-installed ¾″ pressure regulator for quick, safe servicing.
- Standing pilots on open burners; battery-spark ignition ready for optional components.
- All-stainless exterior (front, sides, shelf) with 6″ adjustable stainless legs—approved for installation on combustible floors.
- Certified cCSAus, CSA Flame/Star & NSF for sanitation and safety.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Work-surface height | 37″ (940 mm) |
| Flue riser height | 22 ½″ (572 mm) with shelf |
| Cooking surface | 6 open burners + 24″ griddle (right) |
| Burner rating | 33,000 BTU each (open tops) |
| Griddle rating | 48,000 BTU |
| Total input | 246,000 BTU/hr |
| Gas connection | Natural gas, ¾″ NPT (7″ W.C. min inlet) |
| Base configuration | Dual stainless cabinets with center-opening doors |
| Construction | Stainless steel front, sides, shelf & legs; porcelain-enamel drip trays |
| Certifications | cCSAus, CSA Star-Flame, NSF |
| Shipping weight | Approx. 1,075 lb (488 kg) |
| Warranty | 1-year parts & labor |
What’s Included
- Factory-installed ¾″ pressure regulator
- Removable drip trays beneath open burners
- Battery pack for spark ignition (upgrade-ready)
- User, installation, and warranty documentation
Installation must comply with local codes; a properly vented exhaust hood is recommended for optimal performance and safety.
