Southbend (Middleby) 4603CC-2RR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
6 Star/Sauté Burners • 24" Raised Griddle/Broiler • Dual Stainless CabinetsBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series packs the cooking power of a full cook-line into just five feet of space. Six high-performance star burners, a space-saving raised griddle/broiler and rugged stainless construction let you sear, sauté, grill, finish and hold—all on one unstoppable platform.
Performance Highlights
- Six 33,000 BTU cast-iron star/sauté burners for even, edge-to-edge flame distribution.

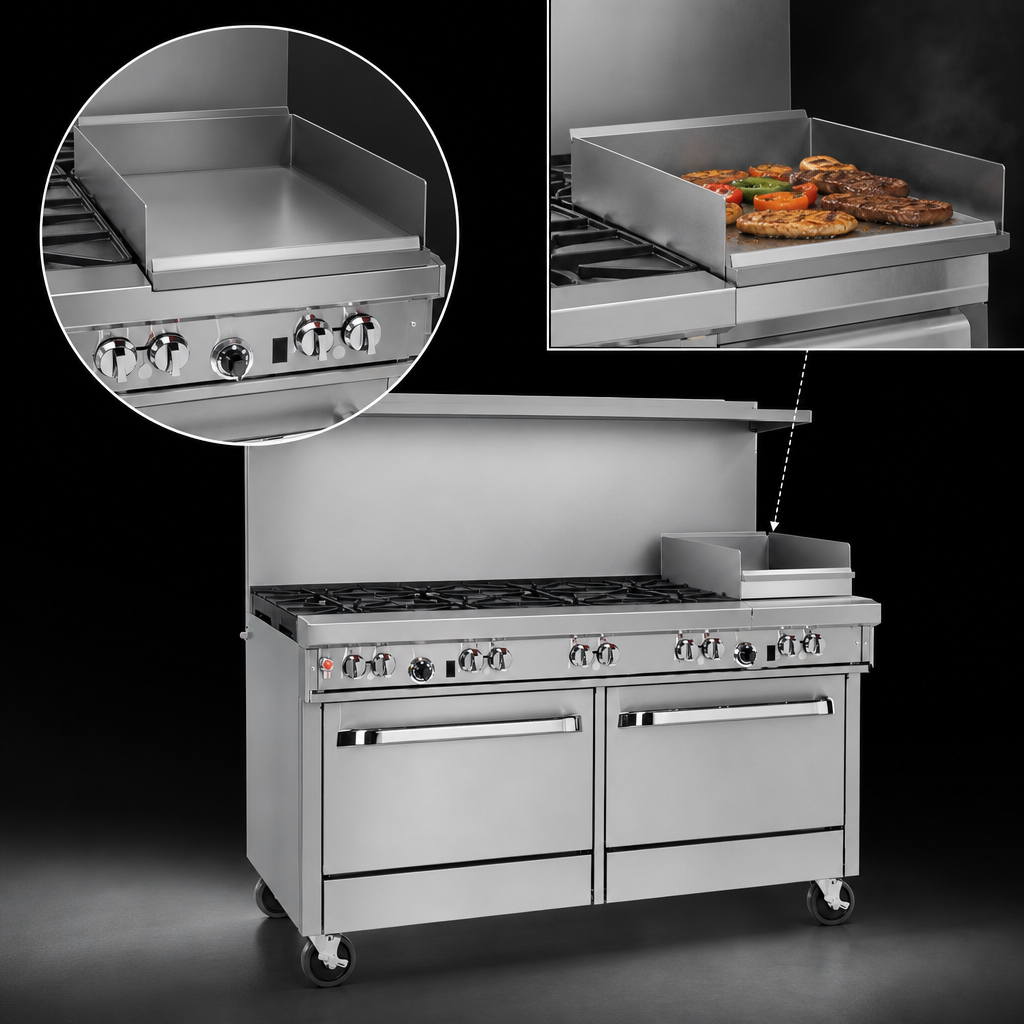

- 24" raised griddle/broiler combo
- ½" polished steel plate for quick recovery and uniform browning
- 64,000 BTU burner system (manual control) with broiler rack beneath—perfect for finishing steaks or melting cheese while the griddle stays in use
- Standard heavy-duty cast-iron grates handle stock pots up to 14".
- 22 ½" flue riser with integrated stainless shelf keeps utensils and seasonings within arm’s reach.
- Two full-width stainless cabinet bases keep sheet pans, smallwares or prep ingredients right at the range.
- Front-mounted main gas shut-off for fast, single-motion safety control.
- Factory-installed regulator and standing pilots for simple, reliable gas ignition.
- All-stainless exterior (front, sides, shelf & 6" adjustable legs) stands up to the harshest cookline conditions.
Key Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Cooking height | 37" / 940 mm (to work surface) |
| Burners | 6 × 33,000 BTU star/sauté (cast iron) |
| Griddle/Broiler | 24" raised, ½" polished plate + broiler rack, 64,000 BTU |
| Total input | 231,500 BTU/hr (natural gas) |
| Base | 2 stainless storage cabinets, center-opening doors |
| Cooking surface depth | 27" |
| Flue riser | 22 ½" with heavy-duty shelf (standard) |
| Gas connection | ¾" FNPT, factory regulator included (Nat or LP) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Limited warranty | 1-year parts & labor (see warranty statement) |
Why Chefs Choose the Ultimate Series
- Power-dense cooktop eliminates the need for multiple pieces of equipment.
- Modular design makes future upgrades—such as hot tops or charbroilers—simple.
- Star burner pattern minimizes hot spots, improving sauce and sauté consistency.
- Field-proven durability backed by Southbend’s nationwide service network.
- Intended for commercial use under a properly vented hood.
- For non-quarry tile floors, contact the factory for approved installation methods.
- Limit oversized cookware (12"+ diameter) to the rear grates to protect front rail components.
- Minimum gas supply pressure: 7" WC (Nat) / 11" WC (LP).
