Southbend (Middleby) 4603CC-2GR Ultimate Gas Ranges
Description

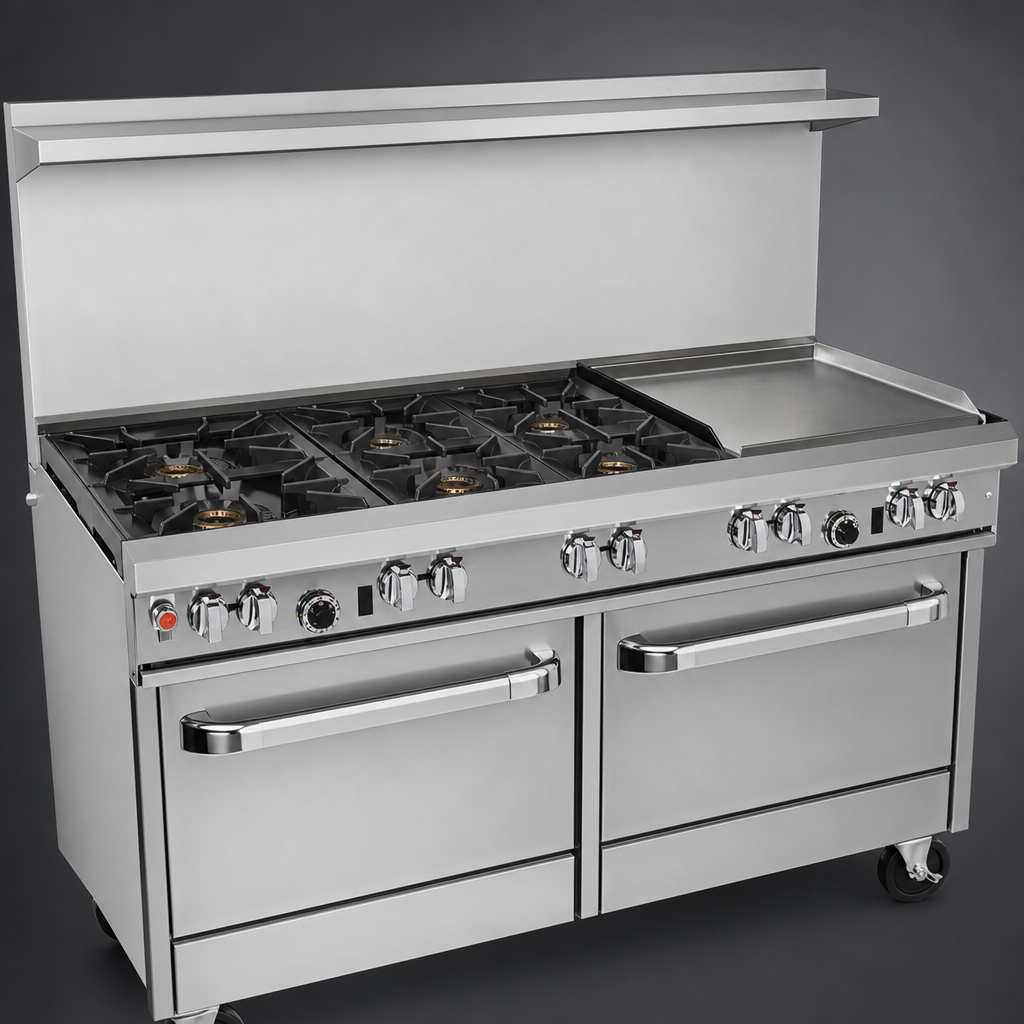

Southbend Ultimate 60" Gas Restaurant Range
6 Star/Sauté Burners • 24" Right-Side Griddle • Dual Cabinet BaseBuilt for chefs who refuse to compromise, the Southbend Ultimate Series packs 246,000 BTU of cooking muscle into a 60-inch footprint. Sear, sauté and griddle with precision on a rock-solid stainless body that’s ready for the longest services.
Key Performance Features
- 6 × 33,000 BTU cast-iron star burners – one-piece, clog-free design delivers even flame distribution from tip to rim.

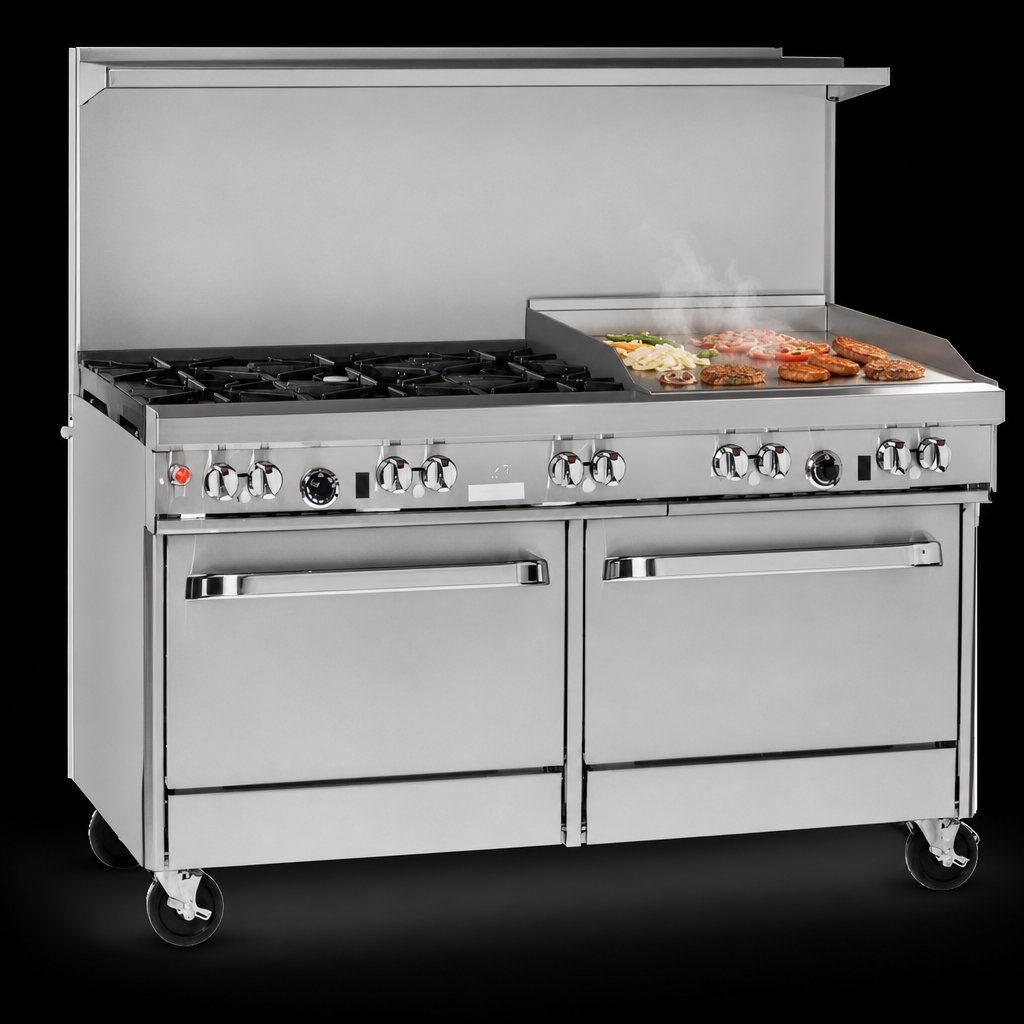

- 24" polished steel griddle (right) – ½" smooth plate with raised sides; perfect for everything from breakfast staples to smash burgers.
- Stainless dual cabinet base – keep hotel pans, smallwares and bulk ingredients within arm’s reach; optional doors available at no charge.
- 22½" flue riser with heavy-duty shelf – stage garnishes, utensils or platters without sacrificing workspace.
- All-stainless exterior & 4" front rail – resists dents, corrosion and daily wash-downs.
- Front-mounted main gas shut-off & factory regulator for safe, instant control.
- Standing pilots for open burners; battery-spark ignition available for griddle and bases.
- Certified cCSAus, CSA Flame & Star, NSF for hassle-free code compliance.
Technical Specifications
| Series / Model | Ultimate 60" Range – Star Burner/Griddle Configuration |
|---|---|
| Overall width | 60.75" (1543 mm) |
| Overall depth | 34.00" (864 mm) |
| Cook-top height | 37.00" (940 mm) on 6" adjustable legs |
| Flue riser height | 22.5" (572 mm) with integrated shelf |
| Total input | 246,000 BTU/hr (Natural Gas) |
| Open burners | 6 × 33,000 BTU cast-iron star/sauté |
| Griddle | 24" W × 27" D, 48,000 BTU, ½" smooth steel, right-side |
| Base | (2) open stainless cabinets |
| Gas connection | ¾" NPT (rear, left or right depending on griddle location) |
| Clearances* | 0" side / 10" rear to non-combustible surfaces |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
*Consult local codes; install under an adequate vent hood.
What’s Included
- Factory-installed pressure regulator
- (4) removable drip trays under burner banks
- Standing pilots for open burners
- Stainless 22½" flue riser shelf
- 6" stainless adjustable legs
Popular Accessories (sold separately)
- Stainless cabinet doors (no-charge option)
- All-swivel locking caster set
- ¾" quick-disconnect hose kit (3 ft, 4 ft or 5 ft)
- Shelf mounts for salamander or cheesemelter
Total BTU shown for Natural Gas. For LP configuration or additional options, please contact our team. This appliance is intended for commercial kitchens only.
