Southbend (Middleby) 4603AD-7L Ultimate Gas Ranges
Description

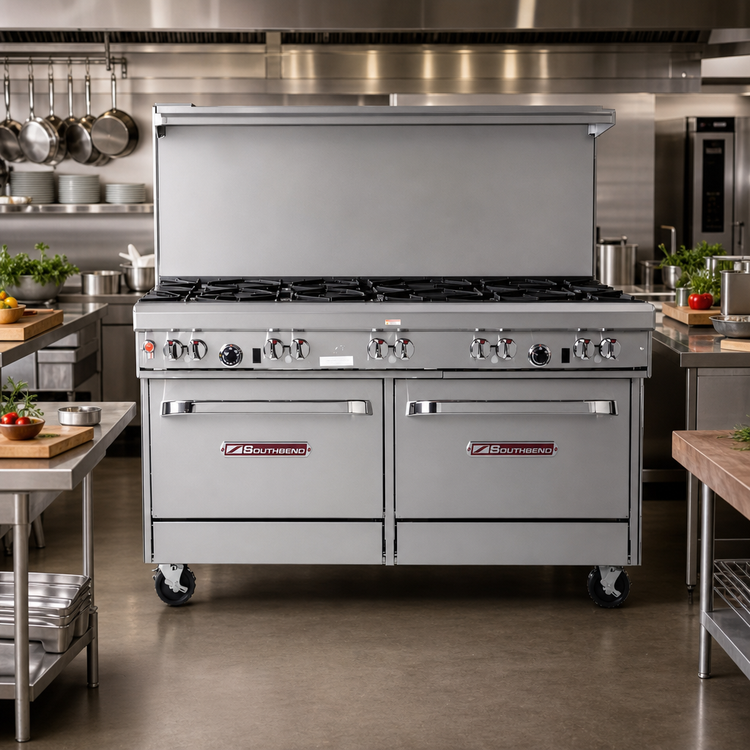

Southbend Ultimate 60" Gas Restaurant Range
4 Star/Sauté Burners • 4 Pyromax Burners • Standard & Convection Ovens • 369,000 BTUBuilt for peak dinner rushes and marathon prep sessions alike, the Southbend Ultimate Series puts heavy-duty power and rock-solid reliability in a single 60 inch footprint. This factory-configured model couples high-output Pyromax burners with precise star/sauté burners and two versatile oven cavities, giving chefs everything they need to sear, sauté, roast and bake without skipping a beat.
Key Performance Features

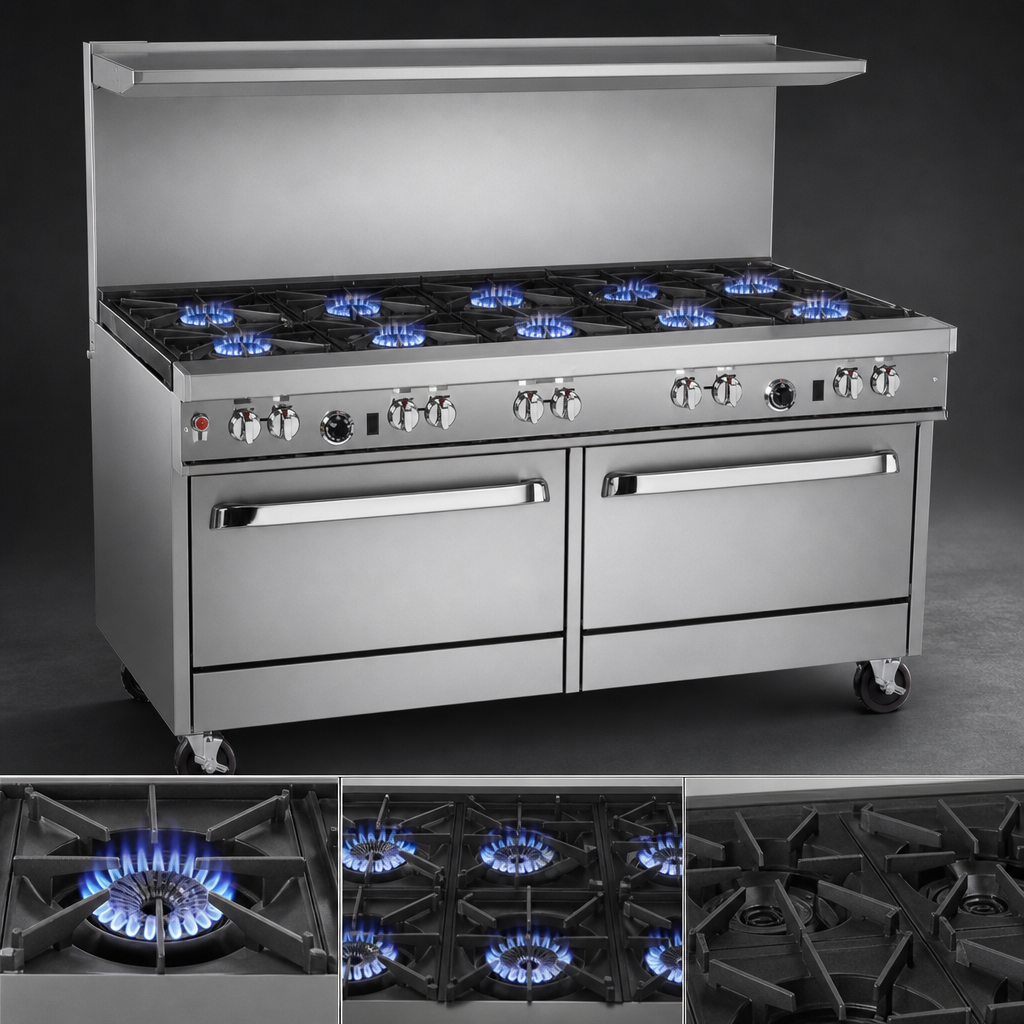

- Four 33,000 BTU cast-iron star/sauté burners—even flame pattern for delicate sauces & fast pan work.
- Four 40,000 BTU Pyromax burners (left bank)—patented three-piece, non-clog design for wok-level heat.
- Total range-top power: 288,000 BTU with standing pilots for instant, match-free lighting.

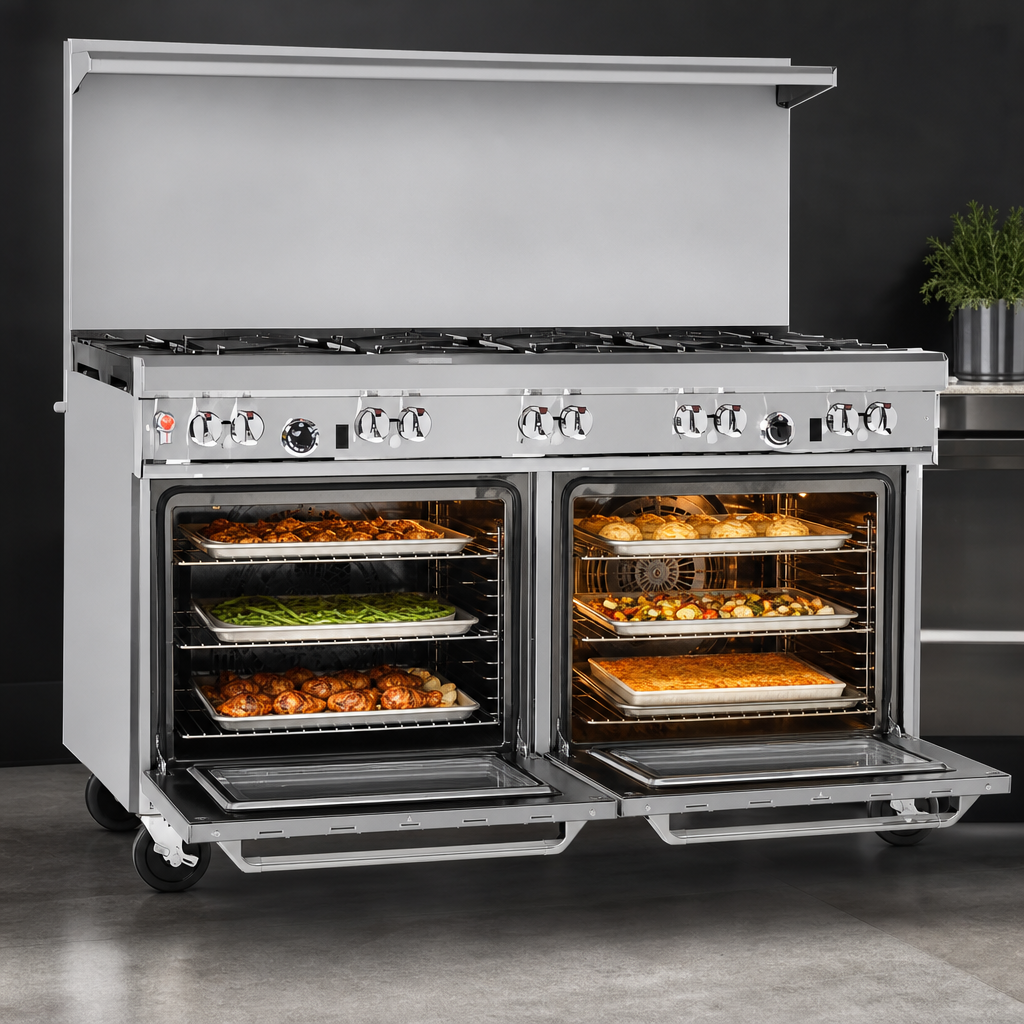

- Right-side standard oven (45,000 BTU) and left-side convection oven (32,000 BTU) – both with battery-spark ignition, no hard-wiring required.
- Four nickel-plated oven racks included (two per cavity) with multi-position side rails.
- 22½" flue riser with built-in shelving keeps plates, pans and spices within easy reach.
- All-stainless front, sides, riser shelf & 6" adjustable legs for long-lasting good looks and easy cleaning.
- Front-mounted manual gas shut-off for the entire range simplifies daily safety checks.
At-a-Glance Specifications
| Manufacturer / Series | Southbend Ultimate Restaurant Range |
|---|---|
| Item ID | 7706 (auto_quotes_api) |
| Overall Width | 60 3⁄4 in (1543 mm) |
| Overall Depth | 34 in (864 mm) |
| Cook-top Height | 37 in (940 mm) |
| Total Height w/ Riser | ≈59.5 in (1511 mm) |
| Range-top Burners | 4 Star/Sauté @ 33 k BTU ea + 4 Pyromax @ 40 k BTU ea |
| Oven Bases | 1 Standard (45 k BTU), 1 Convection (32 k BTU) |
| Total Input | 369,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾" NPT, min 7" W.C. inlet pressure |
| Electrical | 115 V / 60 Hz / 1 Ø, 5.9 A, 6' cord & 3-prong plug (convection fan) |
| Oven Interior (Std) | 26" W × 26.5" D × 14" H, porcelain enamel |
| Oven Interior (Conv) | 26" W × 24" D × 14" H, porcelain enamel, 1/2 HP fan |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see details below) |
Need additional capacity? Stainless cabinet bases, salamander mounts, quick-disconnect hose kits and other factory options are available—ask your sales rep for details.
Why Choose Southbend Ultimate?
- Unmatched durability – cast-iron grates, double-sided porcelain ovens, and steel-reinforced door springs.
- Chef-centric design – 27" deep cook surface, 4" wide front rail and rear stock-pot grate positions.
- Service friendly – front-mounted regulator, removable drip trays and readily available OEM parts.
- Energy smart – battery-spark ignition saves utilities by eliminating constant open-flame pilots in the ovens.
Peace-of-Mind Warranty
Southbend backs every Ultimate Series range with a one-year, parts-and-labor warranty serviced by a nationwide network of authorized agencies. Extended protection plans are available at checkout.
