Southbend (Middleby) 4603AD-6R Ultimate Gas Ranges

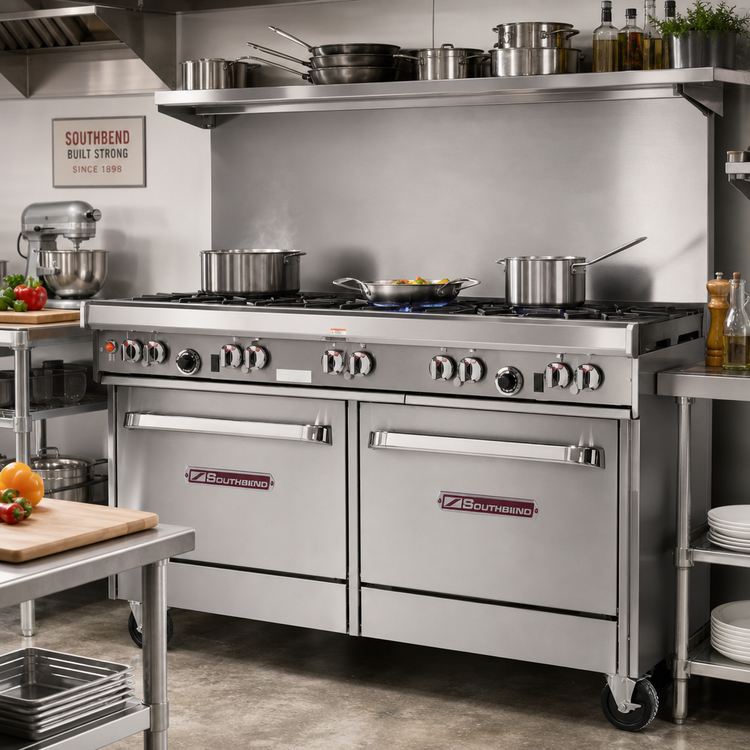

Southbend Ultimate 60″ Gas Restaurant Range

Built for kitchens that never slow down, the Southbend Ultimate Series 60-inch range delivers the power, capacity and durability chefs demand—without sacrificing valuable line space. A mixed-burner top, dual ovens and heavy-duty construction make this the last range you’ll need for years to come.

Key Features

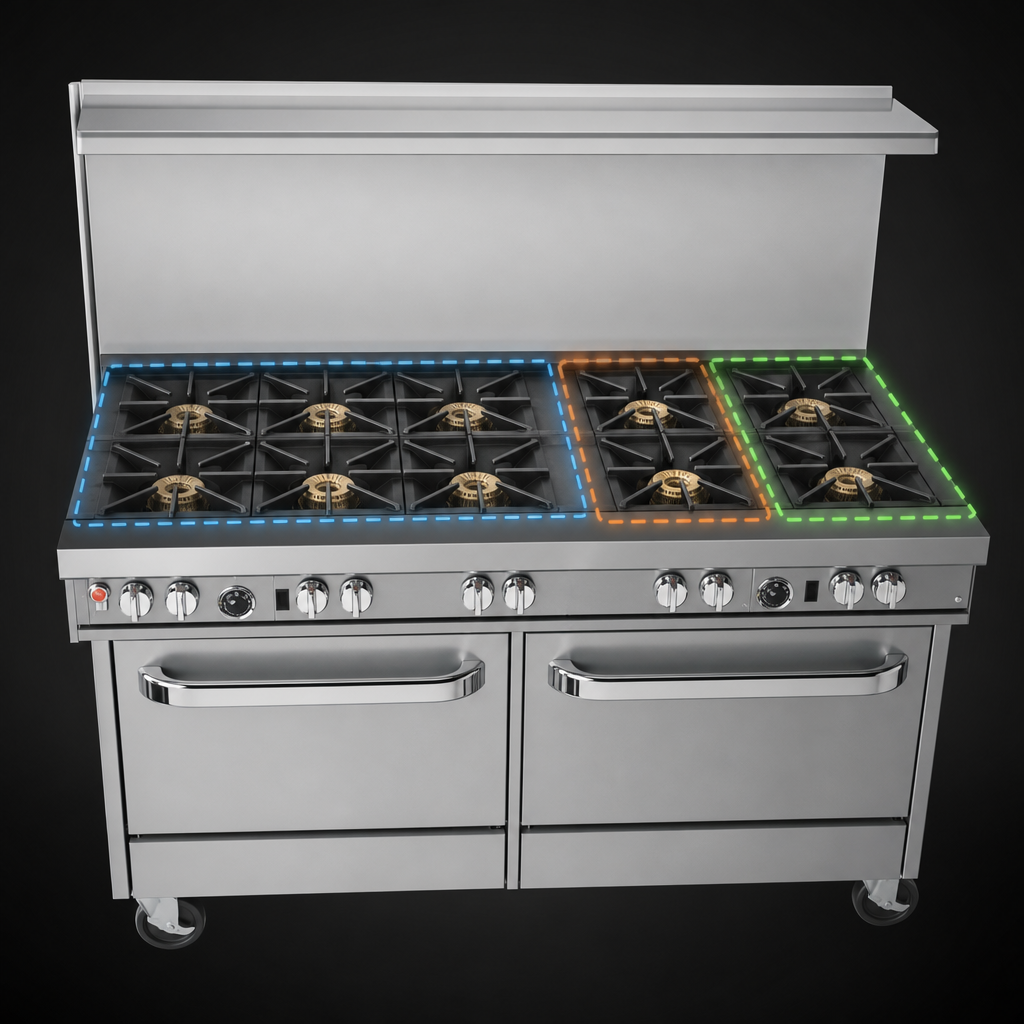

• 388,000 BTU total output for unmatched production capacity.
• Seven 33,000 BTU clog-free star/sauté burners for even, edge-to-edge flame.
• Two 40,000 BTU Pyromax burners (rear right) for rapid stock-pot, wok or skillet work.

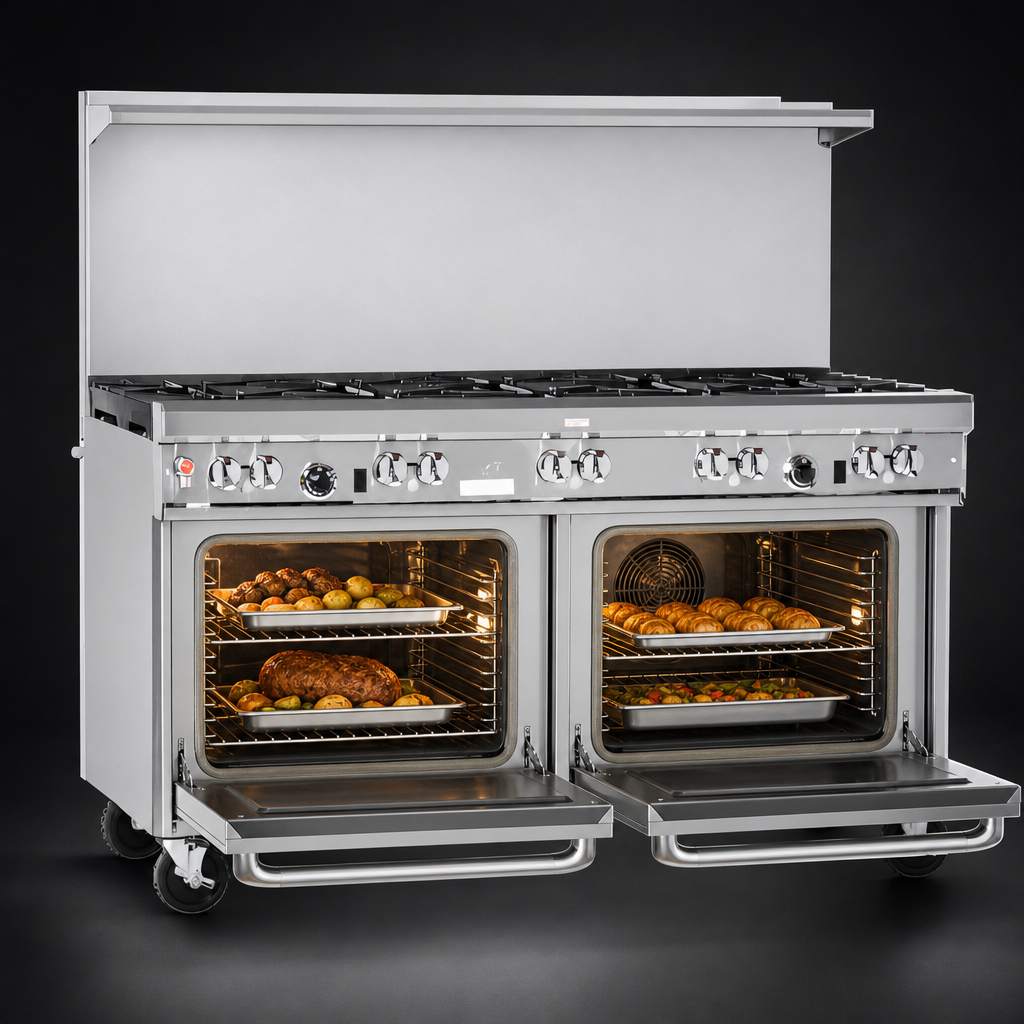

• Standard oven (45,000 BTU) + convection oven (32,000 BTU) — both with battery spark ignition.
• Includes four chrome oven racks; repositionable on two (standard) and five (convection) guides.
• 27″-deep cooking surface with lift-off cast-iron grates; rear sections accept 14″ stock pots.
• 22.5″ flue riser with integrated stainless shelf keeps plates and pans within arm’s reach.
• Front-mounted manual gas shut-off enhances on-line safety.
• Stainless steel front, sides, shelf and 6″ adjustable legs for easy cleaning and lasting shine.
• Standing pilots on open burners; factory-installed pressure regulator.
• CSA & NSF listed; backed by a 1-year parts-and-labor warranty.

Why It’s Ultimate

• Mixed burner platform lets you move from delicate reductions to rolling boils without changing stations.
• Convection cavity shortens bake times and evens browning—perfect for high-volume prep.
• Standard oven handles cast-iron skillets, braises or low-and-slow roasts simultaneously.
• Star burners’ unique port layout distributes heat evenly across pan bottoms, reducing hot spots.
• Tool-less, lift-off grates and porcelain-enameled interiors slash daily clean-up time.

Specifications

Included With Your Purchase

• (4) Heavy-duty oven racks
• Factory pressure regulator
• User, installation & warranty documentation

Need casters, extra racks or salamander mounts? Ask—factory-approved accessories can be added to your order.
