Southbend (Middleby) 4603AD-6L Ultimate Gas Ranges
$12,787.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4603AD-6L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AD-6L Ultimate Gas Ranges
$12,787.00
Unit price
/
Unavailable
Description

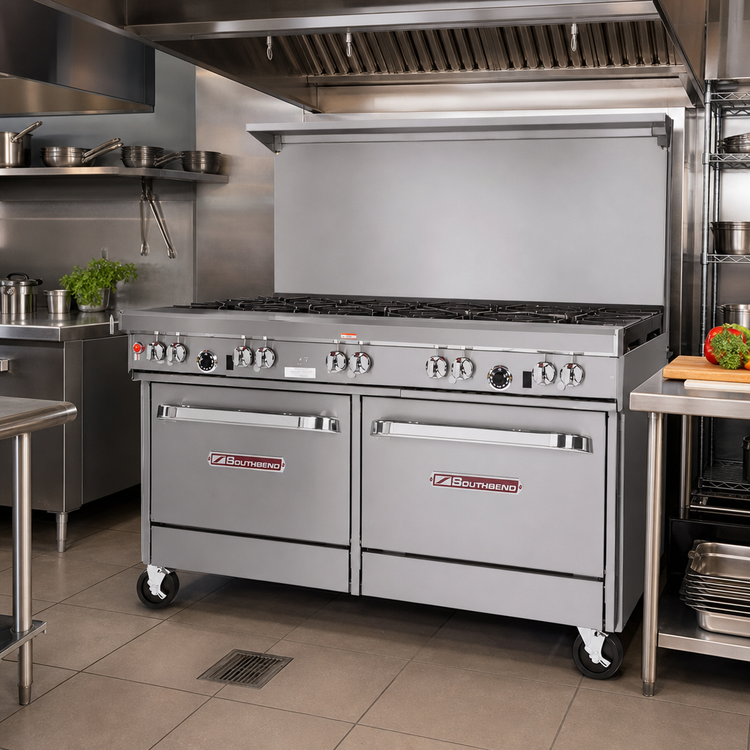

Southbend Ultimate 60" Gas Restaurant Range
3 Star/Sauté + 2 Pyromax + 4 Star/Sauté Burners | Standard + Convection Ovens | 388,000 BTUThe work-horse your cook-line has been waiting for. Southbend’s Ultimate 60 Series packs scorching sauté heat, ultra-fast stock-pot power and dual-oven versatility into one rugged, stainless-steel range built for round-the-clock service.

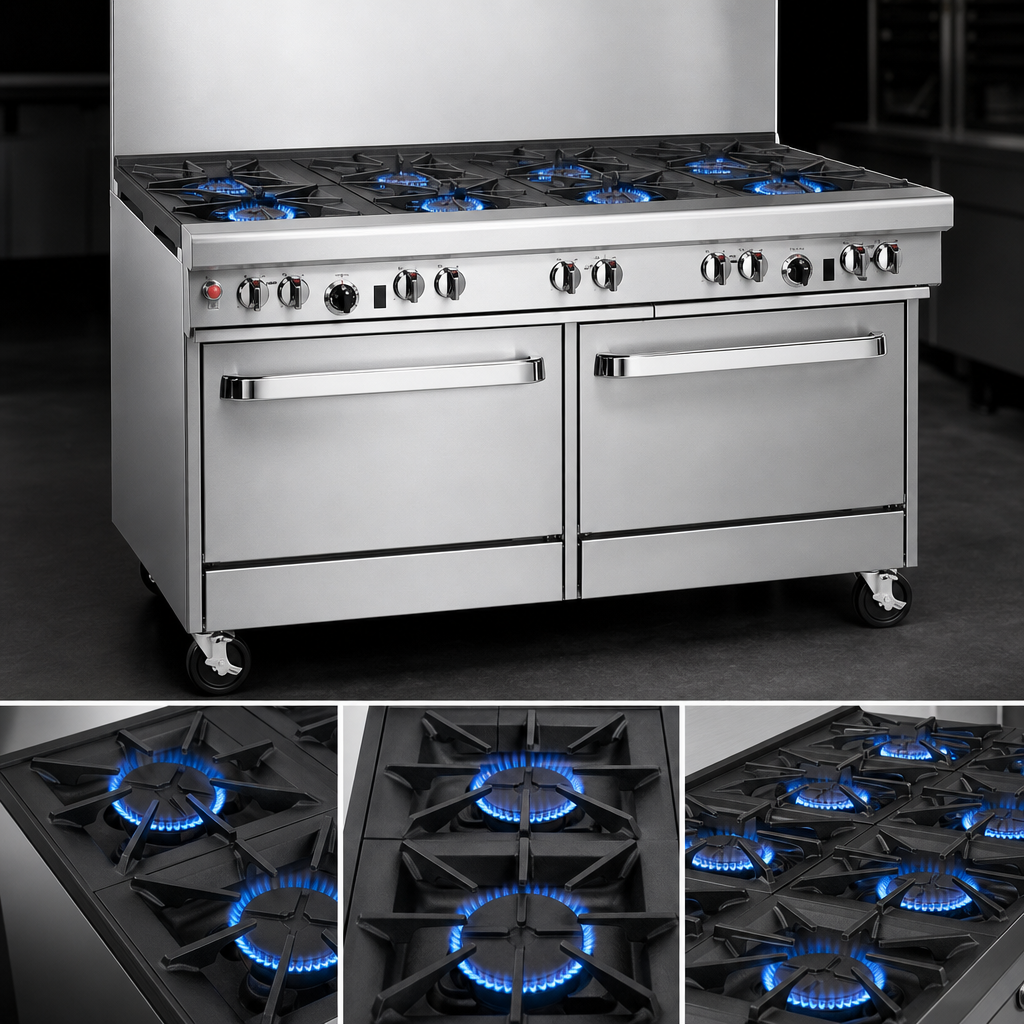

Key features- Nine open burners
- 7 × 33,000 BTU star/sauté burners for fast, even flame distribution
- 2 × 40,000 BTU Pyromax burners for rapid boil & wok work
- Total input: 388,000 BTU/hr

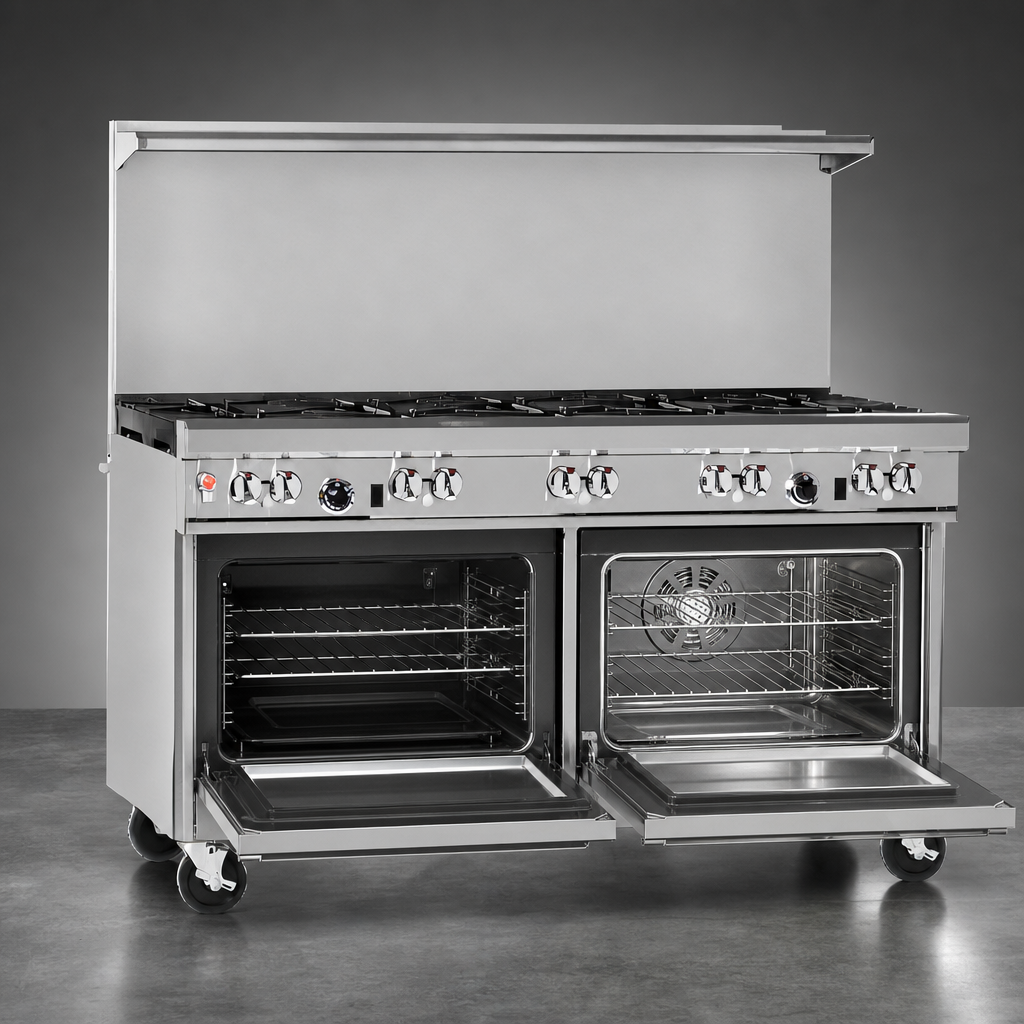

- Dual battery-spark ovens
- 45 k BTU standard oven – 14"H × 26"W × 26.5"D (1 rack included)
- 32 k BTU convection oven – 14"H × 26"W × 24"D, ½ HP fan (3 racks included)
- 4 lift-off cast-iron grates – rear sections accept 14" stock pots
- 22 ½" flue riser with heavy-duty utensil shelf
- Front-mounted manual gas shut-off & standing pilots on all top burners
- Stainless-steel front, sides, shelf & 6" adjustable legs for corrosion-free durability
- Factory regulator, CSA & NSF approvals included
- 1-year parts & labor warranty backed by Southbend’s nationwide network
| Model / Series | Ultimate 60 Series – 460-AD configuration |
|---|---|
| Overall width | 60.75" (1543 mm) |
| Overall depth | 42.13" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Open burners | 7 × 33 k BTU star/sauté + 2 × 40 k BTU Pyromax |
| Ovens | 1 standard (45 k BTU) + 1 convection (32 k BTU, 115 V fan) |
| Rack capacity | 4 racks (1 standard / 3 convection) |
| Total input | 388,000 BTU/hr |
| Gas connection | ¾" NPT female • min. inlet 7" WC (NAT) / 11" WC (LP) |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & NEMA 5-15P (convection fan only) |
| Ship weight | ≈ 1,075 lb (488 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor — see Southbend service & parts |
Need casters, salamander mounts or a quick-disconnect gas hose? Our team can configure the perfect Ultimate range for your kitchen.
Commercial use only: Install under a properly sized exhaust hood, maintain 10" clearance to combustibles, and keep oversized cookware on rear burners to prevent heat damage. Failure to follow installation guidelines may void warranty.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Top
(9) open burners
Base
(1) standard oven, (1) convection oven
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) star/sauté burners right, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 388,000 BTU, CSA, NSF
