Southbend (Middleby) 4603AD-5R Ultimate Gas Ranges
Description

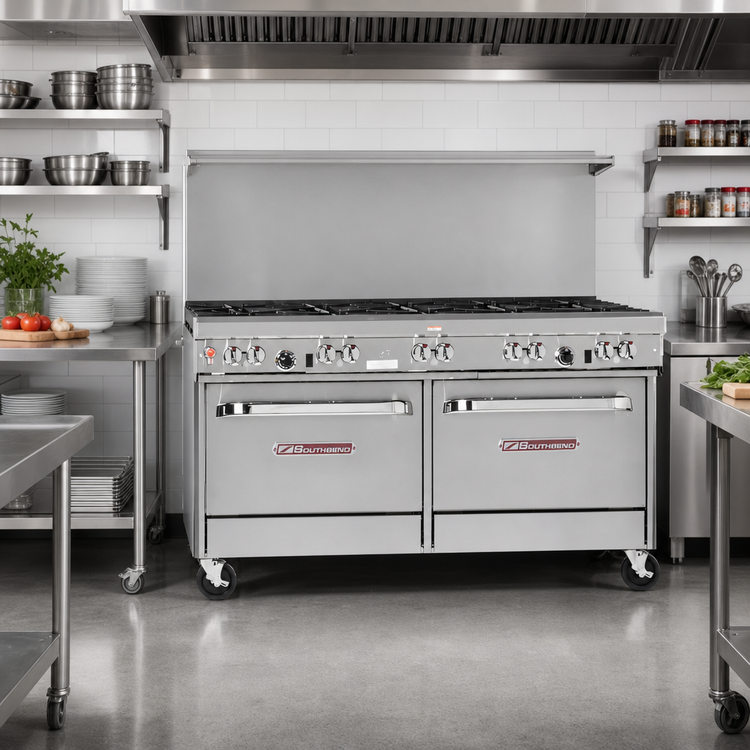

Southbend “Ultimate” 60″ Restaurant Range – Custom 9-Burner, Double-Oven Gas
3 Non-Clog | 2 Pyromax | 4 Star/Sauté | 388,000 BTU Total OutputOne range, unlimited possibilities. Southbend’s Ultimate Series puts 9 open burners, a full-size standard oven, and a high-performance convection oven under a single 60″ cooking surface— giving chefs the speed, flexibility, and rugged reliability they demand during peak service.
Performance Highlights

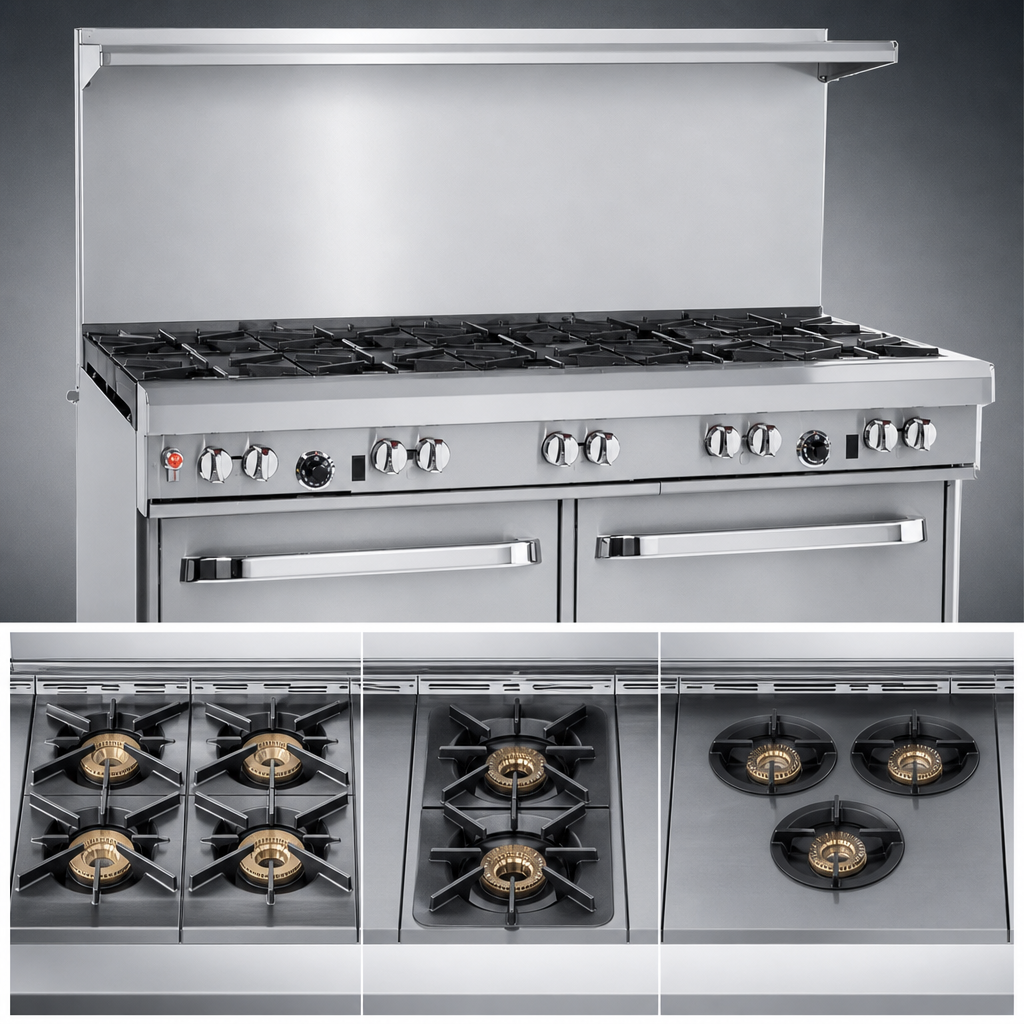

- Versatile 9-burner layout
- (4) 33,000 BTU cast-iron Star/Sauté burners (left)
- (3) 33,000 BTU lifetime Non-Clog burners (front-right)
- (2) 40,000 BTU Pyromax high-output burners (rear-right) – perfect for stockpots & woks

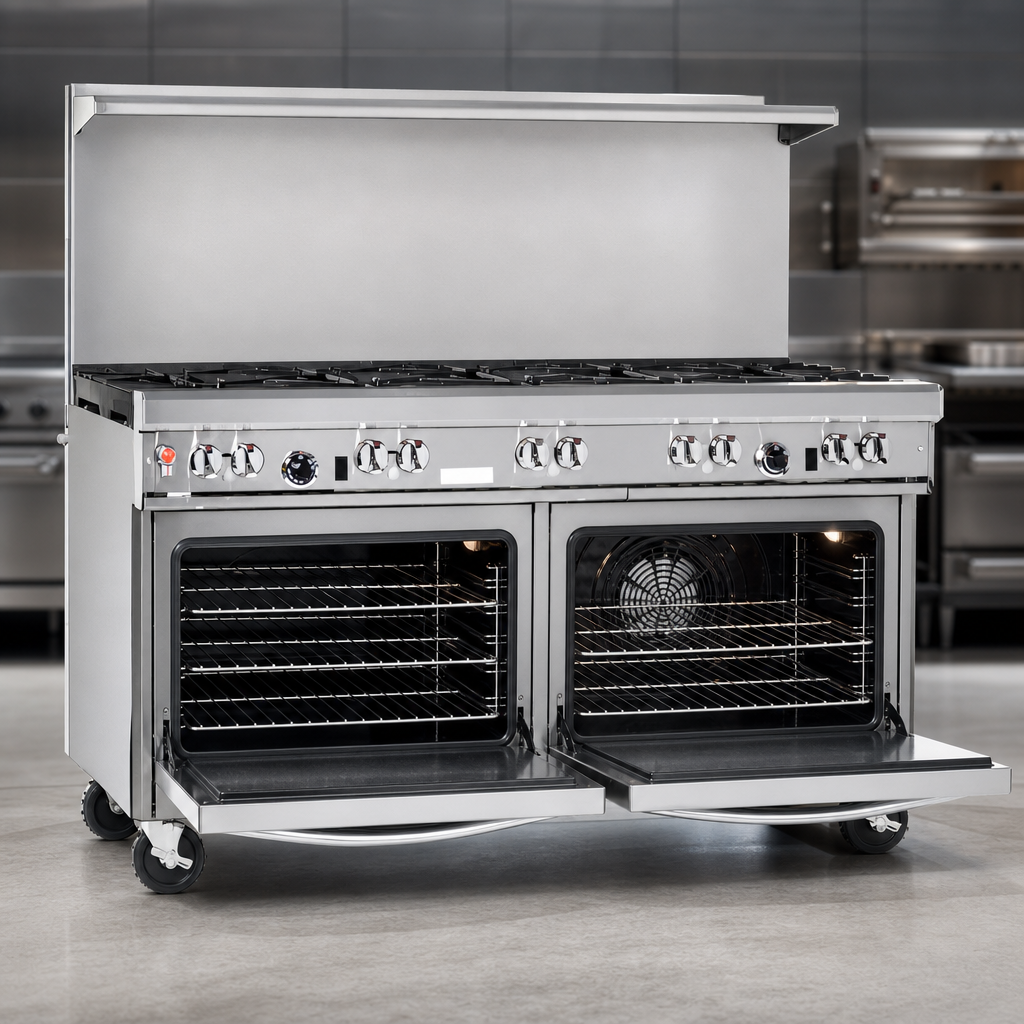

- Two full-size ovens
- Standard oven – 45,000 BTU, battery-spark ignition, fits 18″ × 26″ sheet pans both ways
- Convection oven – 32,000 BTU, battery-spark ignition, ½ hp fan motor for even baking
- Includes four heavy-duty racks (two per oven) with multi-position guides
- 22 ½″ flue riser with integrated utensil shelf keeps essentials within arm’s reach
- 4″ deep stainless landing rail and split, removable drip trays for fast clean-ups
- Front-mounted manual gas shut-off and factory pressure regulator
- Durable stainless-steel front, sides & shelf with 6″ adjustable stainless legs
- Standing pilots on all open burners; reliable battery-spark ignition on both ovens
- Certified to CSA & NSF standards – built exclusively for commercial kitchens
Technical Specifications
| Model | Ultimate 60″ Range – 3 NC / 2 PR / 4 SS Burners |
|---|---|
| Overall size (W × D × H) | 60 ¾″ × 42 ⅛″ × 59 ½″ (to top of flue) |
| Cooking surface height | 37″ |
| Total input | 388,000 BTU/hr (natural gas) |
| Gas connection | ¾″ NPT, min. 7″ W.C. NG / 11″ W.C. LP |
| Electrical (convection fan) | 115 V, 1 ph, 5.9 A – 6′ cord & 3-prong plug |
| Oven cavities (W×D×H) | Standard: 26″ × 26 ½″ × 14″ Convection: 26″ × 24″ × 14″ |
| Rack capacity | 4 chrome racks included |
| Warranty | 1-year parts & labor (factory-authorized service network) |
Built for the Rush
- Cast-iron grates support stockpots up to 14″ in diameter without sacrificing burner efficiency.
- Porcelain-enamel, coved-corner ovens wipe clean and eliminate hot spots.
- Modular burner mix lets you jump from delicate reductions to high-BTU flash-fry without swapping equipment.
- Heavy-gauge stainless and precise machining deliver years of trouble-free, 24/7 service.
