Southbend (Middleby) 4603AD-3GR Ultimate Gas Ranges
Southbend (Middleby) 4603AD-3GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AD-3GR Ultimate Gas Ranges
Description
Ultimate 60-inch Gas Restaurant Range
4 Star/Sauté Burners • 36" Right-Side Griddle • Standard + Convection OvensEngineered for chefs who refuse to compromise, the Southbend Ultimate Range delivers unmatched versatility, power and durability in a single 60" footprint. From rapid sauté work to all-day griddle service and high-capacity baking, this powerhouse keeps every station moving.
Why you’ll love it
- 273,000 total BTU of natural or LP gas performance.

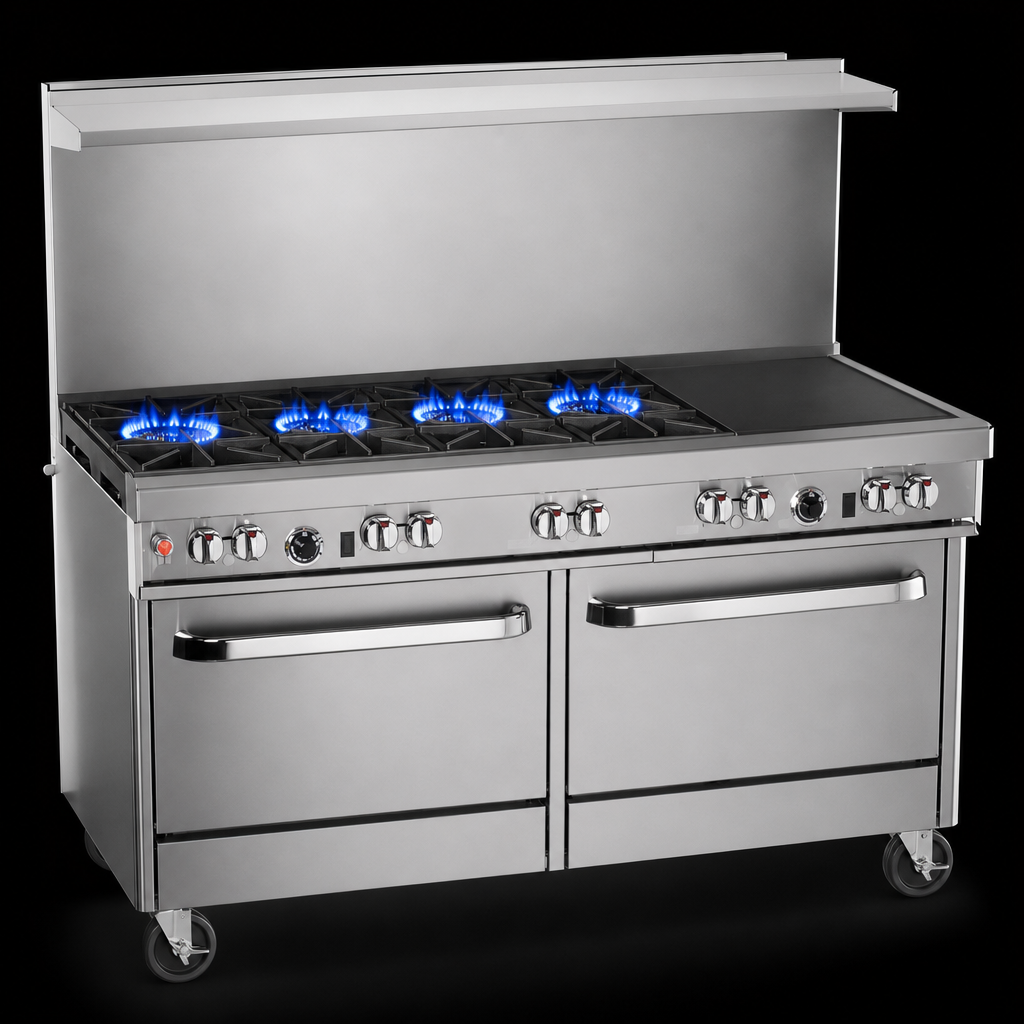

- Four 33,000 BTU star/sauté burners with cast-iron grates—perfect flame distribution for small pans or 14" stock pots.

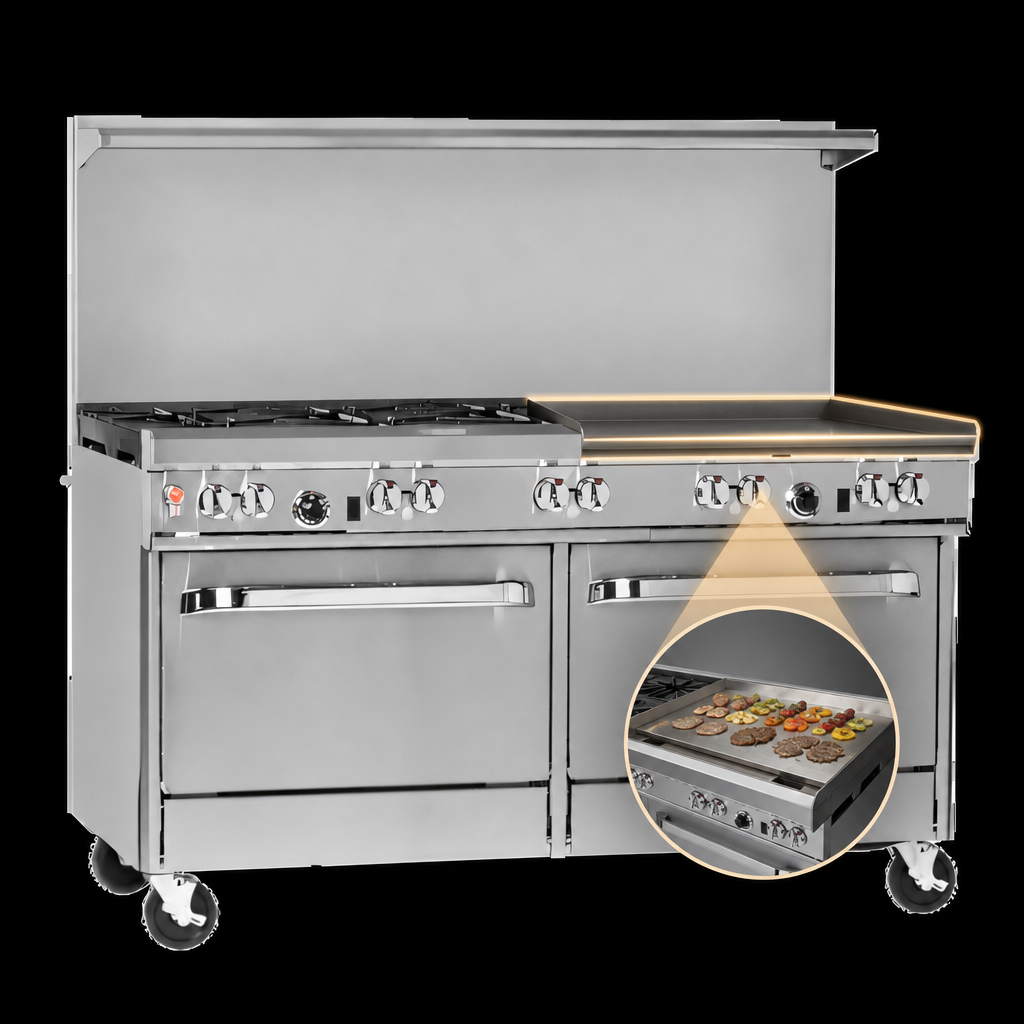

- 36" smooth steel griddle (½" plate) on the right side for breakfast, burgers or searing proteins.
-
Dual ovens:
- 45,000 BTU standard bake oven (175 – 550 °F).
- 32,000 BTU convection oven with ½ HP fan and five rack positions.
- Four heavy-duty racks included (interchangeable).
- Instant-ready standing pilots on open burners; battery-spark ignition for both ovens.
- Stainless steel front, sides, 4" front rail and 22 ½" flue riser shelf stand up to years of abuse.
- Front-mounted manual gas shut-off and factory pressure regulator for quick, code-compliant installation.
- (6) adjustable 6" stainless legs—meets health-code clearance on combustible floors.
- Certified cCSAus, CSA Star, CSA Flame & NSF for gas safety, sanitation and performance.
- Backed by a 1-year parts & labor warranty with nationwide authorized service.
At-a-glance specs
| Model | Southbend Ultimate 460 Series (AD base) |
|---|---|
| External width | 60 ¾" (1543 mm) |
| Depth | 42 ⅛" (1070 mm) with convection oven |
| Cook-surface height | 37" |
| Overall height | 59 ½" with 22 ½" flue riser shelf |
| Open burners | (4) Star/Sauté • 33,000 BTU each |
| Griddle | 36" W × 27" D, ½" polished steel plate, manual controls |
| Ovens | 1 Standard (45 kBTU) + 1 Convection (32 kBTU) |
| Total input | 273,000 BTU/hr |
| Gas connection | ¾" NPT, min 7" W.C. NAT / 11" W.C. LP |
| Electrical (convection) | 115 V, 1-phase, 5.9 A, 6' cord & 3-prong plug |
| Rack capacity | 4 full-size sheet pans (included racks fit both ways) |
| Legs / casters | 6" adjustable SS legs (casters optional) |
| Warranty | 1-year parts & labor (see warranty terms) |
Ideal applications
- High-volume restaurants & cafés
- Hotel banquet and prep kitchens
- Catering commissaries and ghost kitchens
- Install under a properly sized vent hood and provide the specified ¾" gas supply.
- For non-quarry tile floors, contact the factory for leg/caster recommendations.
- Limit oversized (12" +) cookware to the rear burners to protect the front rail components.
