Southbend (Middleby) 4603AD-2TR Ultimate Gas Ranges
$17,865.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4603AD-2TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AD-2TR Ultimate Gas Ranges
$17,865.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Gas Restaurant Range 6 Star/Sauté Burners • 24" Thermostatic Griddle • Standard + Convection Ovens
Consolidate sautéing, griddling, roasting, and high-volume convection baking in one rugged, 60 3/4" footprint. Built for demanding commercial kitchens, the Southbend Ultimate Restaurant Range (Model 7706) delivers a massive 323,000 BTU of cooking power with the reliability operators have trusted since 1898.
Key Performance Features
- Six 33,000 BTU cast-iron star/sauté burners provide even, clog-free flame ideal for rapid sautéing, boiling, and pan-roasting.

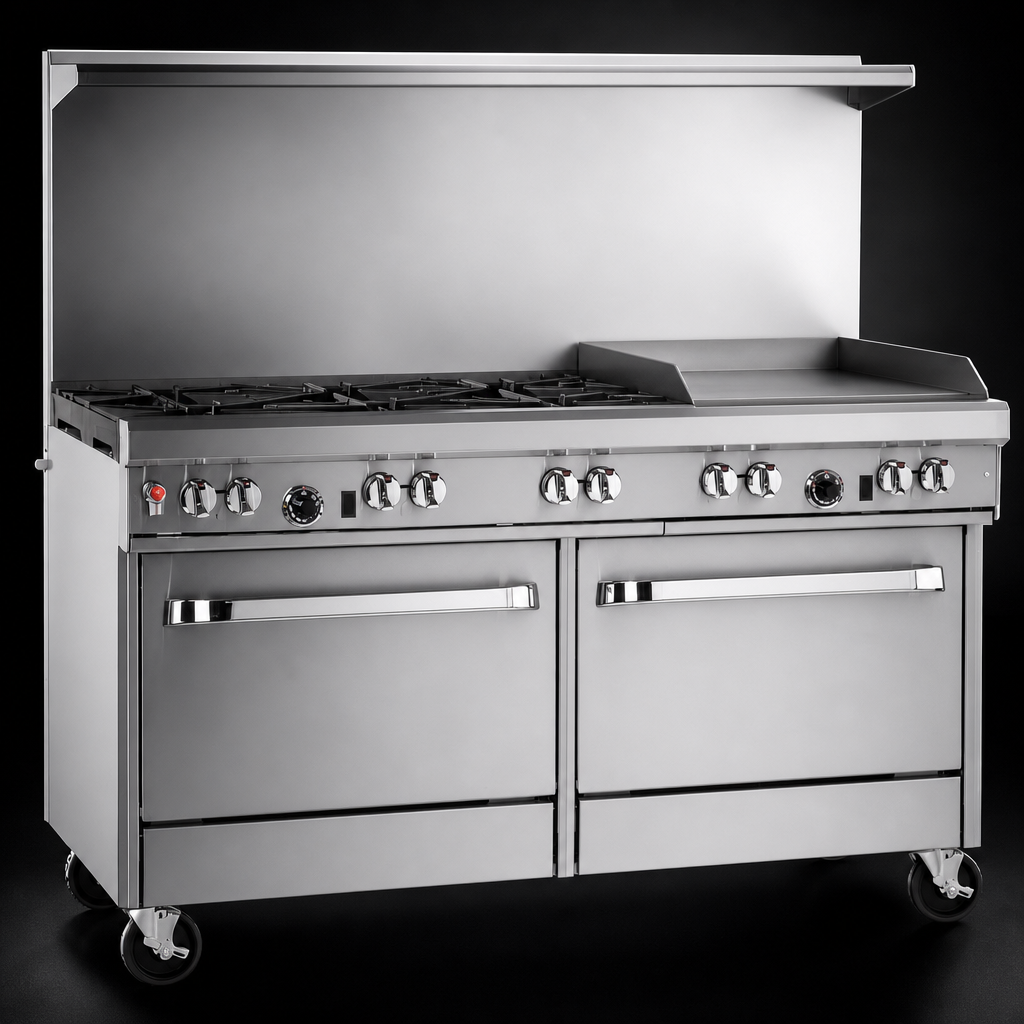

- 24" right-hand griddle with ½" polished steel plate and thermostatic controls for precise, repeatable results.
- Dual oven base: 45,000 BTU standard oven (left) plus 32,000 BTU battery-spark convection oven (right) for faster, more even baking.
- Four heavy-duty racks included (1 in standard, 3 in convection) with multiple slide positions for menu flexibility.
- Standing pilots on open burners; battery-spark ignition on both ovens for dependable start-up without electrical components.
- 22 ½" flue riser with integrated stainless shelf keeps plates warm and adds convenient storage space.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and service.
- All-stainless front, sides, shelf, flue riser, and 6" adjustable legs stand up to daily abuse and high-heat cleaning.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation compliance.
- Backed by a 1-year parts & labor warranty with nationwide Southbend authorized service support.
Technical Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 42 ⅛" / 1070 mm (with convection base) |
| Cooktop height | 37" on 6" adjustable legs |
| Burners | 6 × 33,000 BTU star/sauté (198,000 BTU total) |
| Griddle | 24" W × 27" D • ½" plate • thermostatic control |
| Standard oven (left) | 45,000 BTU • 175–550 °F • 1 rack / 2 positions |
| Convection oven (right) | 32,000 BTU • 175–550 °F • 3 racks / 5 positions • ½ hp blower |
| Total input | Approx. 323,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT • 7" W.C. NAT (11" W.C. LP) |
| Electrical (convection) | 115 V / 60 Hz / 1 ph • 5.9 A • 6' cord & 3-prong plug |
| Cooking surface depth | 27" |
| Front rail | 4" stainless wrap-around |
| Exterior | Stainless steel front, sides, flue shelf & legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
Perfect For
- High-volume restaurants and hotel banquets that need versatile cooking capabilities in one unit.
- Food halls and caterers looking to maximize production in limited back-of-house space.
- Institutional kitchens demanding heavy-duty construction and rapid recovery times.
Want to spread out the cost? Middleby Equipment Financing offers fast credit decisions and fixed monthly payments.
Commercial use only. Install under a properly sized, ventilated hood and follow all local gas, electrical, and fire codes.
Warranty is void if the range is installed in a non-commercial setting.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Top
(6) open burners, (1) 24" griddle with thermostat
Base
(1) standard oven, (1) convection oven
Control Type
thermostatic controls
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (6) star/sauté burners, (1) 24" griddle right, thermostatic controls, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 323,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
