Southbend (Middleby) 4603AD-2GR Ultimate Gas Ranges
Description

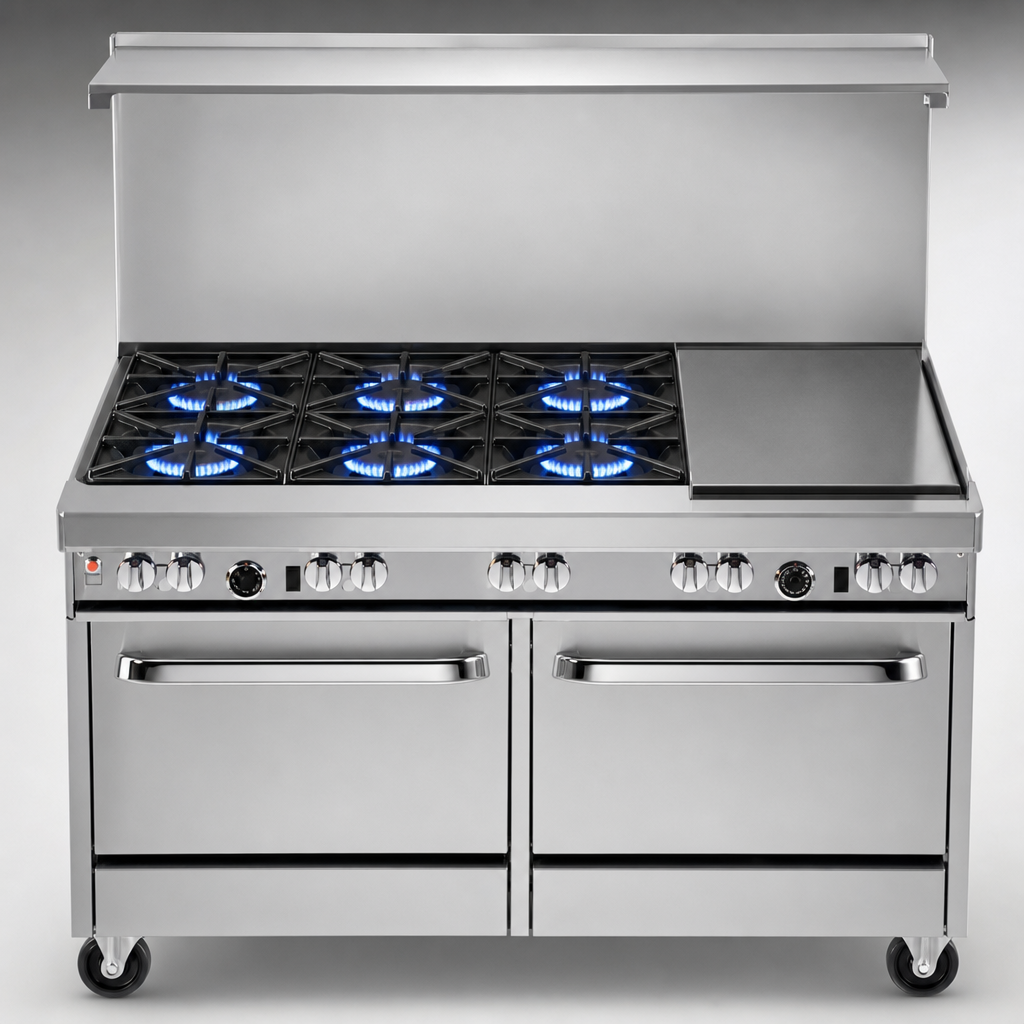

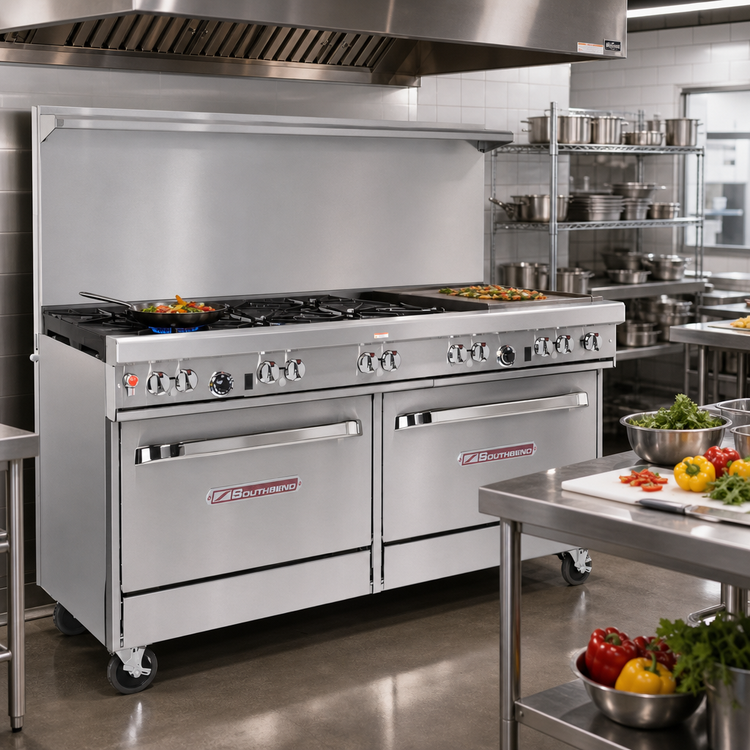

Southbend Ultimate 60″ Gas Restaurant Range – 6 Star/Sauté Burners, 24″ Right-Side Griddle, Standard & Convection Ovens
Model 460-AD | Ultimate SeriesBring true cook-line versatility to your kitchen with the Southbend Ultimate 60″ restaurant range. Six high-output star burners, a full 24″ griddle and a dual-oven base (standard + convection) let you sear, sauté, grill, bake and roast simultaneously—all in one rugged, stainless-steel chassis.
Key Features
- 323,000 BTU total power for high-volume production
- (6) 33,000 BTU cast-iron star/sauté burners with even flame distribution
- 24″ smooth polished-steel griddle (right) with raised splash sides
- Standard oven (45,000 BTU) + convection oven (32,000 BTU) – both with battery spark ignition
- Includes 4 heavy-duty nickel-plated racks; multiple rack positions per oven
- 22 ½″ flue riser with integrated plate shelf keeps pans & spices handy
- Stainless steel front, sides, shelf and 6″ adjustable legs for long-lasting durability
- Front-mounted manual gas shut-off and factory-installed regulator
- Standing pilots on open burners; no external electricity required to light ovens
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation
- Backed by a 1-year parts & labor warranty from Southbend
At-a-Glance Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 42 ⅛″ (1070 mm) on convection side | 34″ (864 mm) on standard side |
| Work-surface height | 37″ (940 mm) |
| Flue riser height | 22 ½″ |
| Total BTU | 323,000 BTU/hr (natural or LP) |
| Open burners | 6 × 33,000 BTU cast-iron star burners |
| Griddle | 24″ smooth plate, manual control, 64,000 BTU |
| Ovens |
Standard: 45,000 BTU, 14″ H × 26″ W × 26 ½″ D Convection: 32,000 BTU, 14″ H × 26″ W × 24″ D, ½ hp fan |
| Gas connection | ¾″ NPT (rear) |
| Electrical (fan) | 115 V, 5.9 A, 6′ cord & plug |
| Warranty | 1 year parts & labor |
Built to Perform
- Heavy cast-iron grates handle stockpots up to 14″ diameter
- Removable one-piece drip trays speed up end-of-shift cleaning
- Spring-assisted oven doors open smoothly and stay closed tight
- 6″ stainless legs adjust for perfect leveling on uneven floors
- Designed and assembled in the USA
