Southbend (Middleby) 4603AC-7L Ultimate Gas Ranges
Southbend (Middleby) 4603AC-7L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AC-7L Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
4 Star/Sauté Burners • 4 Pyromax Burners • Convection Oven & Storage CabinetBuilt for high-volume, high-heat kitchens, the Southbend Ultimate Series puts 324,000 BTU of raw cooking power at your fingertips. Eight heavy-duty open burners, a full-size convection oven and a stainless storage cabinet are packed into a space-saving 60-¾" footprint—giving chefs the flexibility they need without compromising on output or durability.
Why You’ll Love It
- 8 open burners – (4) 33,000 BTU star/sauté burners for precision searing and (4) 40,000 BTU Pyromax burners for rapid boil & wok work (left section).

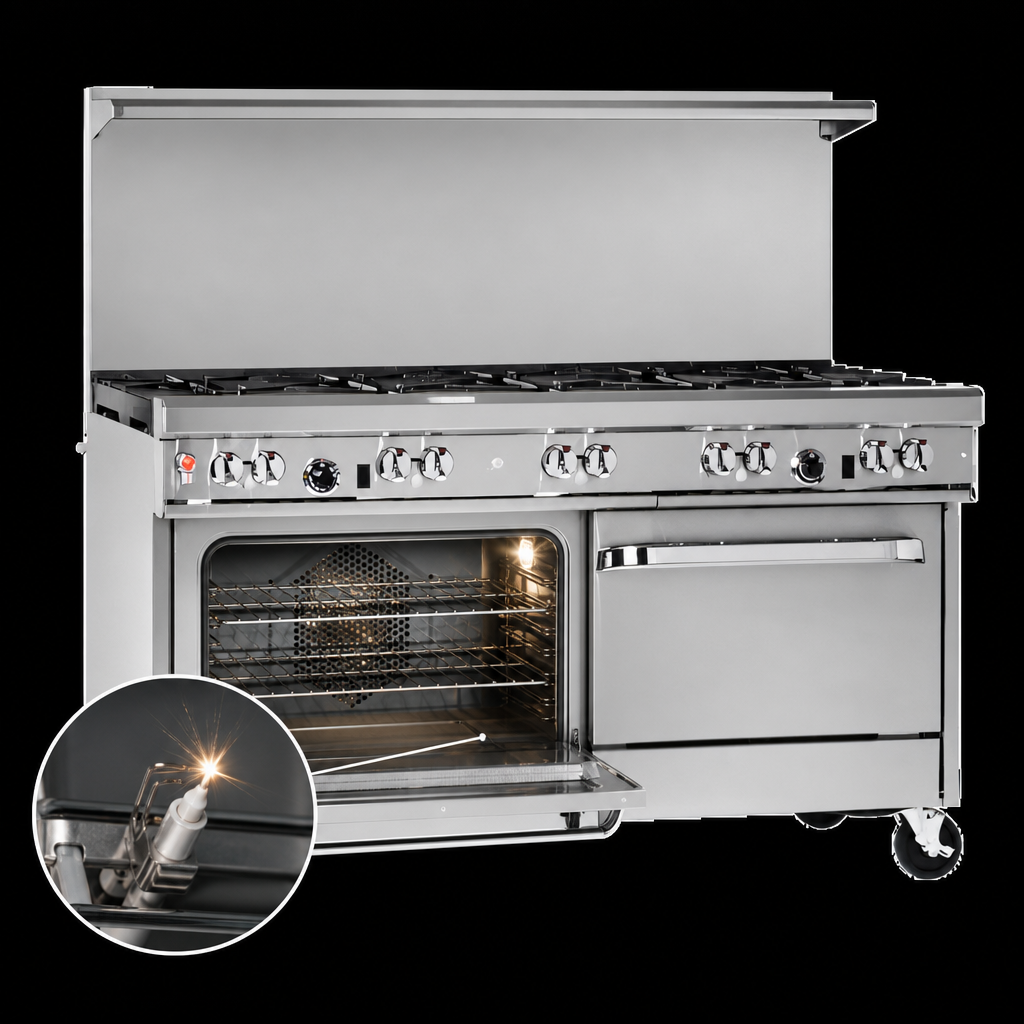

- Full-size convection oven – 32,000 BTU, battery-spark ignition, porcelain cavity, three chrome racks & five rack positions.
- Stainless steel cabinet base – convenient, easy-clean storage right where you need it.
- 22-½" flue riser with heavy-duty utility shelf keeps plates, pans and spices close at hand.
- 27"-deep cooking surface with removable cast-iron grates—rear section holds up to a 14" stock pot.
- Front-mounted gas shut-off valve & factory regulator for quick, safe service access.

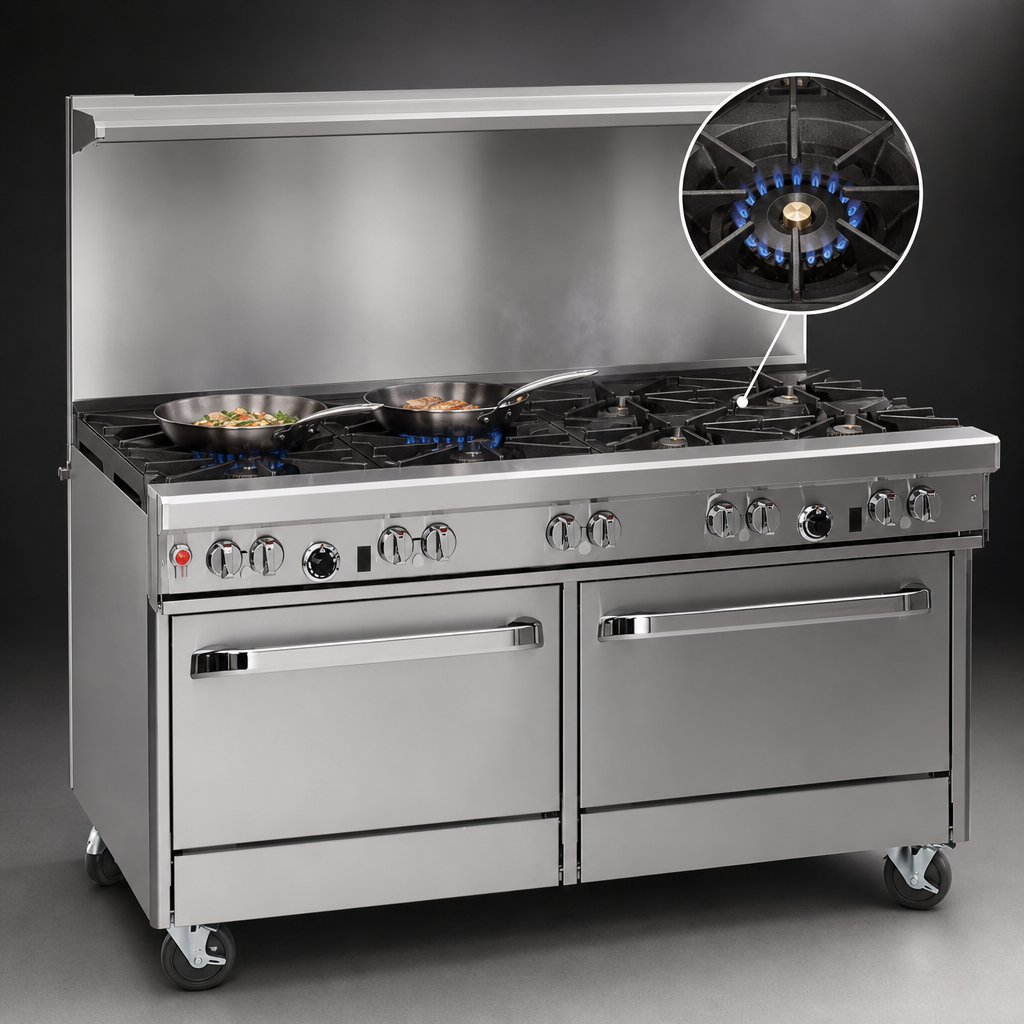

- Standing pilots for burners; 6" adjustable stainless legs standard (casters optional).
- CSA & NSF listed for commercial kitchens.
Top-Of-Range Performance
- Star/sauté burner flame pattern delivers even heat across pan bottoms—ideal for sauté & sauce work.
- Patented three-piece Pyromax burners concentrate 40 kBTU per burner for blistering stir-fry and stock-pot speed.
- Removable one-piece drip trays span the full depth for fast nightly clean-up.
Convection Oven Highlights
- 14"H × 26"W × 24"D cavity fits full-size sheet pans both directions.
- 175 °F–550 °F thermostat range with rapid pre-heat.
- 115 V plug-in, ½ HP fan motor for even baking & roasting.
- Spring-assisted door and coved porcelain corners for easy wipe-down.
Specifications
| Model | Southbend Ultimate 60" Range (Burner Option 6 – Star & Pyromax) |
|---|---|
| Total BTU | 324,000 BTU/hr (292 kBTU top + 32 kBTU oven) |
| Gas Connection | ¾" NPT, 7" W.C. natural gas (11" W.C. LP option), front-mounted shut-off |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & 3-prong plug (convection fan) |
| Exterior Dimensions | 60 ¾"W × 42 ⅛"D × 59 ½"H (to top of riser); cook-top height 37" |
| Cooking Surface | 27" deep cast-iron grate surface |
| Oven Interior | 14"H × 26"W × 24"D; 3 chrome racks, 5 positions |
| Crated Weight | Approx. 1,075 lb |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see Southbend limited warranty) |
Intended for commercial use only. For non-quarry tile floors, oversized cookware usage, and cleaning restrictions, please refer to Southbend’s published policies.
