Southbend (Middleby) 4603AC-6R Ultimate Gas Ranges
Description
Southbend “Ultimate” 60″ Restaurant Range
3 Star/Sauté + 2 Pyromax + 4 Star/Sauté | Convection Oven & Cabinet Base | 343,000 BTUBuilt for chefs who refuse to compromise, the Southbend Ultimate 60″ Range combines extreme burner horsepower, high-volume baking, and rugged stainless-steel construction in one space-saving workhorse.
Key Features
- Seven open burners deliver 311,000 BTU/hr: 3 × 33,000 BTU star/saute (front right) • 2 × 40,000 BTU Pyromax (rear right) • 4 × 33,000 BTU star/saute (left).

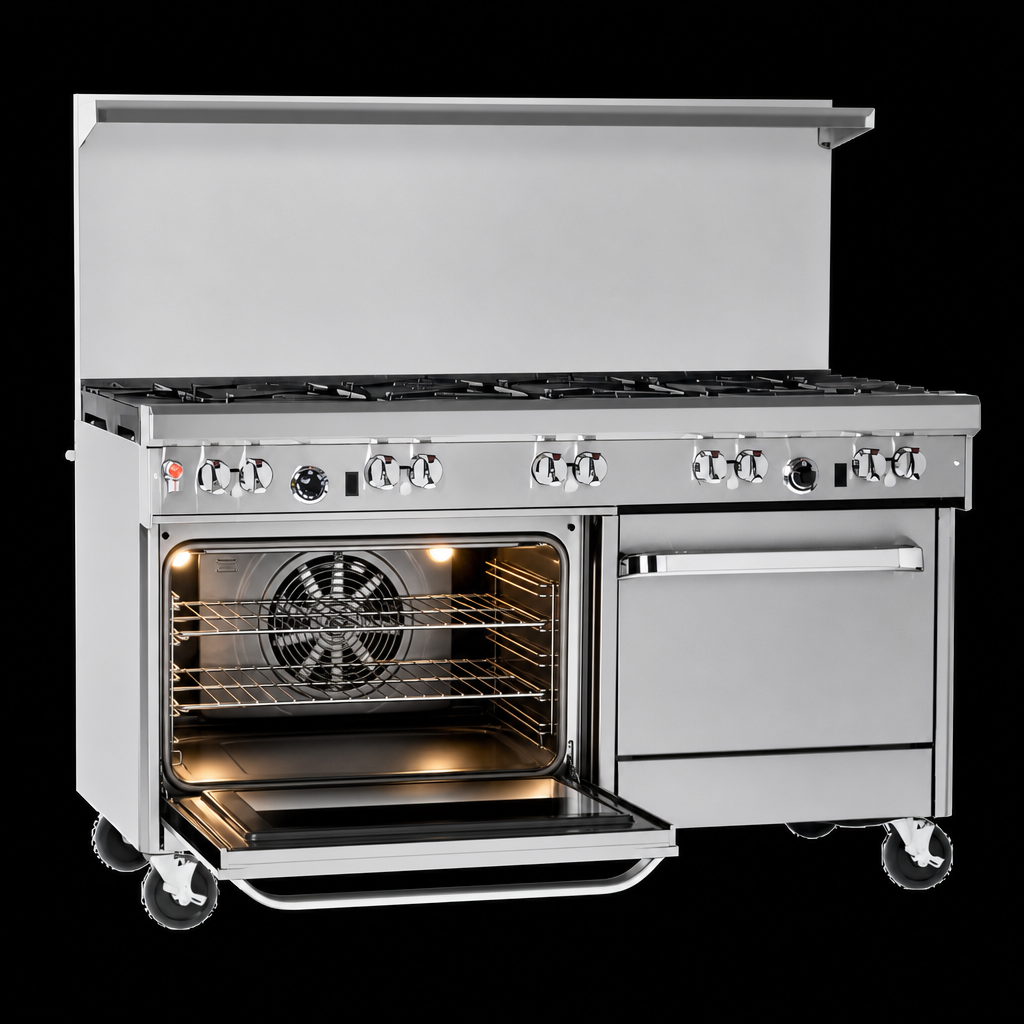

- 32,000 BTU gas convection oven with battery-spark ignition; includes 3 chrome racks and 5 rack positions.
- Stainless steel cabinet base keeps sheet pans, stock pots, or smallwares organized and close at hand.
- 27″-deep cooking surface with four removable, cast-iron grates— rear sections accept up to a 14″ stock pot.
- 22 ½″ flue riser with heavy-duty overshelf for plating or utensil storage.
- Front-mounted manual gas shut-off and factory-installed pressure regulator.
- Standing pilots for burners; cord-free operation thanks to battery ignition on the oven.
- 4″ stainless front rail & 6″ adjustable stainless legs for easy leveling on any commercial floor.
- Full stainless front, sides, shelf, and cabinet for maximum durability and easy cleanup.
- Backed by a 1-year parts & labor warranty and certified CSA & NSF for commercial kitchens.
At-a-Glance Specifications
| Model / Series | Ultimate 60″ Restaurant Range (460 Series configuration) |
|---|---|
| Overall Width | 60 ¾″ (1543 mm) |
| Overall Depth | 34″ (864 mm) body • 42 ⅛″ (1070 mm) to front rail |
| Cooking Surface Height | 37″ (940 mm) |
| Burner Mix | 3 star/saute front right | 2 Pyromax rear right | 4 star/saute left |
| Total Open-Top BTU | 311,000 BTU/hr |
| Oven | Gas convection, 32,000 BTU/hr, 175–550 °F thermostat |
| Oven Interior | 14″ H × 26″ W × 24″ D – full-size sheet pans fit either direction |
| Base | Stainless steel cabinet (doors included) |
| Gas Connection | 3/4″ NPT • Natural 7″ W.C. or LP 11″ W.C. |
| Electrical | 115 V, 5.9 A, 6′ cord & plug for convection motor |
| Total Range BTU | 343,000 BTU/hr |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Need casters, cabinet doors, or other customizations? Ask our team—Ultimate ranges are factory-configurable.
From rapid stock reduction on the 40 k BTU Pyromax burners to delicate pastries in the convection oven, the Southbend Ultimate Range delivers the versatility, power, and dependability today’s high-volume kitchens demand. Upgrade your line and keep the tickets moving.
