Southbend (Middleby)  |  Ultimate  |  SKU: 4603AC-6L

Southbend (Middleby) 4603AC-6L Ultimate Gas Ranges

$14,735.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range – 9-Burner with Convection Oven & Cabinet Base

Model 7706 | 343,000 BTU | CSA & NSF Listed

Built for high-volume kitchens that refuse to compromise, the Ultimate Series delivers extreme burner power, bakery-quality convection baking, and the rugged stainless construction Southbend is famous for.

Key Features
  • 60-3/4" wide commercial gas range with a 37" cooking surface height
  • Open-top burner line-up (total 9):
    • (3) 33,000 BTU star/saute burners – front left
    • (2) 40,000 BTU Pyromax burners – rear left
    • (4) 33,000 BTU star/saute burners – right side
  • Individual standing pilots – instant, match-free lighting
  • 32,000 BTU convection oven with battery-spark ignition & (3) chrome racks
  • Right-side stainless steel cabinet base for convenient dry storage
  • 22-1/2" flue riser with heavy-duty overshelf keeps plates & seasonings close
  • 4" deep stainless front rail plus front-mounted manual gas shut-off
  • Factory-installed 3/4" gas pressure regulator
  • 6" adjustable stainless steel legs (casters optional)
  • 1-year limited parts & labor warranty
Star vs. Pyromax – The Best of Both Worlds
  • Star burners: patented one-piece cast iron heads distribute flame evenly for delicate sautés
  • Pyromax burners: massive 40,000 BTU output slashes stock-pot and boil times
  • Both styles feature lifetime clog-free ports and easy-clean design

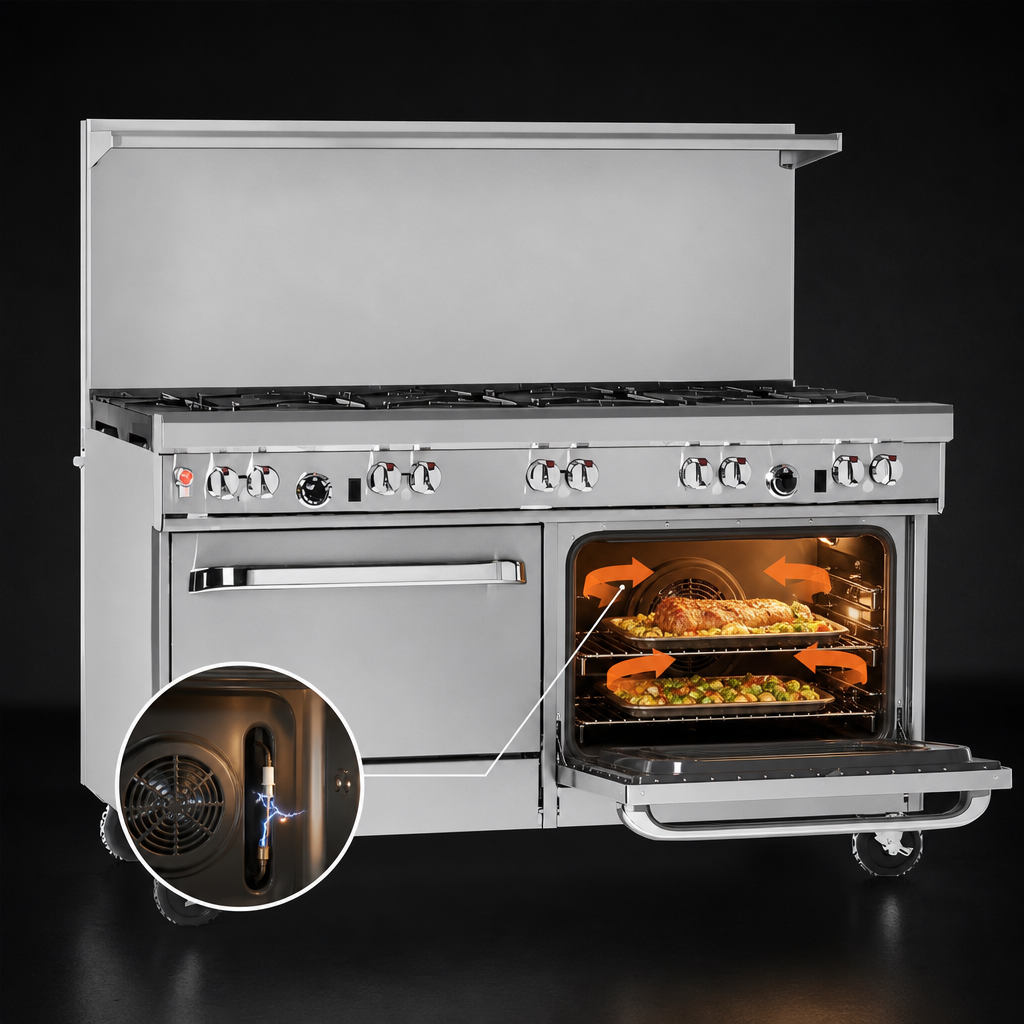

Convection Oven Highlights
  • Porcelain-enameled, coved interior resists corrosion and wipes clean
  • 14" H × 26" W × 24" D cavity fits full-size sheet pans either direction
  • 175 °F – 550 °F thermostat for everything from low-temp roasting to high-heat finishing
  • Spring-assisted door and on/off fan switch let you operate as a standard oven when desired
Specifications
Overall width 60-3/4" (1543 mm)
Overall depth (incl. rail) 34" (864 mm)
Cooktop height 37" (940 mm)
Burners 7 × 33,000 BTU star  + 2 × 40,000 BTU Pyromax
Total input 343,000 BTU/hr (Natural or LP – specify)
Oven type / input Single convection / 32,000 BTU
Oven capacity (3) racks, 5 position guides – full-size pans fit both ways
Base configuration Stainless cabinet (doors optional at no charge)
Gas connection 3/4" NPT, rear – regulator supplied
Electrical 115 V, 5.9 A, 6' cord & 3-prong plug (convection fan)
Certifications CSA, NSF
Warranty 1 year parts & labor
Installation note: Intended for commercial use under a properly vented hood. For non-quarry tile floors, oversized cookware, or flexible gas hose installations, consult the factory for approved procedures.

Looking to conserve capital? Middleby Equipment Financing can convert this purchase into affordable fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Top

(9) open burners

Vent

backriser with hi-shelf

Base

(1) convection oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) star/sauté burners right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 343,000 BTU, CSA, NSF
