Southbend (Middleby)  |  Ultimate  |  SKU: 4603AC-4TR

Southbend (Middleby) 4603AC-4TR Ultimate Gas Ranges

$19,369.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range

(2) Star/Sauté Burners • 48" Right-Side Thermostatic Griddle • Convection Oven & Cabinet Base

Boost line efficiency without adding footprint. The Ultimate Series marries Southbend’s legendary durability with a smart mix of open-top power, high-capacity griddling and even-heat baking—ideal for the busiest commercial kitchens.

Key Features
  • (2) 33,000 BTU cast-iron star/sauté burners with standing pilots and removable heavy-duty grates

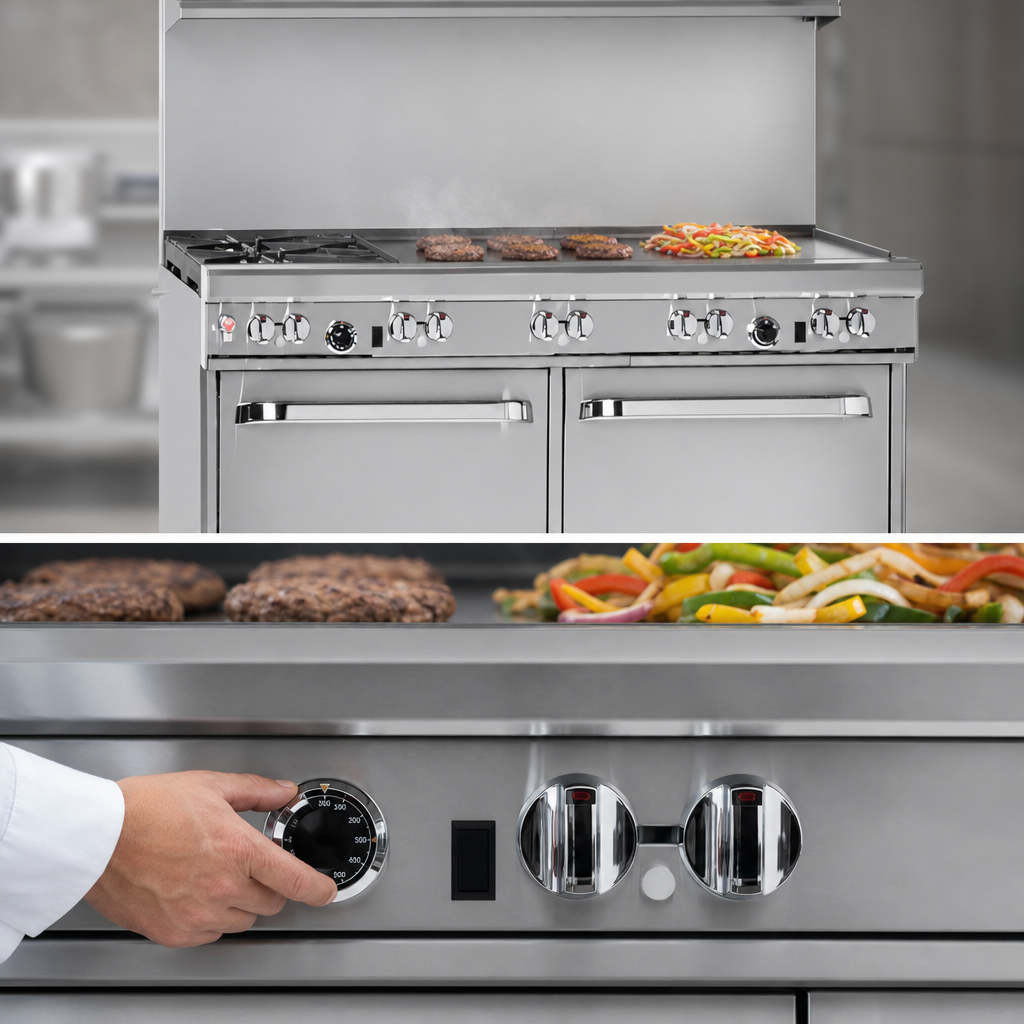

  • 1" thick, 48" polished steel griddle (right) with independent thermostatic controls 175–550 °F
  • 32,000 BTU convection oven with battery-spark ignition & three chrome racks (5 positions)
  • Stainless cabinet base (left) keeps sheet pans, utensils and smallwares close at hand
  • Front-mounted manual gas shut-off & factory-installed pressure regulator
  • 22-1/2" stainless flue riser with integral utensil shelf
  • 4" deep stainless landing rail plus two full-width drip trays for fast clean-up
  • All stainless front, sides & shelf; 6" adjustable stainless legs
  • cCSAus, CSA Flame, CSA Star & NSF listed
Performance Specifications
Overall width 60 3/4" (1543 mm)
Overall depth 34" (864 mm)
Cooking height 37" (940 mm)
Star burners (2) × 33,000 BTU (66,000 BTU total)
Griddle input 96,000 BTU
Convection oven 32,000 BTU • 175–550 °F
Total gas input Approx. 178,000 BTU/hr
Oven cavity (W×D×H) 26" × 24" × 14"
Gas connection 3/4" NPT (rear, opposite griddle side)
Electrical (fan) 115 V, 1 Φ, 6′ cord & 3-prong plug, 5.9 A
Shipping weight ≈ 1,075 lb (488 kg)
Warranty 1-year parts & labor
Perfect For
  • Full-service restaurants seeking maximum versatility on a single footprint
  • Hotels, resorts & country clubs with all-day menus
  • High-volume ghost or commissary kitchens
Popular Accessories (sold separately)
  • Front-locking all-swivel caster kit
  • 3/4" quick-disconnect gas hose (3–5 ft) with restraining device
  • 5" or 10" low-profile flue risers
  • Salamander or cheesemelter mounts
  • Additional chrome oven racks
  • No-charge stainless cabinet doors
Installation & Safety Notes
• Unit must be installed under a commercial ventilation hood.
• 6" legs or casters are required on combustible floors.
• Limit cookware over 12" Ø to rear burners to protect front rail components.
• When using a flexible gas hose, minimum 3/4" I.D. and restraint device are required.

Detailed drawings, utility rough-ins and service manuals are available in Southbend Form 460.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 48" griddle with thermostats

Plate Thickness

.500" = 1/2"

Control Type

thermostatic controls

Base

(1) convection oven, (1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 60", (2) star/sauté burners, standard grates, (1) 48" griddle right, thermostatic controls, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 178,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
