Southbend (Middleby) 4603AC-3GR Ultimate Gas Ranges
Description
Ultimate 60″ Gas Restaurant Range w/ 4 Star Burners, 36″ Right-Side Griddle & Convection Oven
Southbend Ultimate Series • 228,000 BTU Total InputBuild a faster, more flexible cook-line with the Southbend Ultimate 60-inch range. Four high-output star burners, a full 36″ griddle, a powerful convection oven and a stainless cabinet base give your team every tool they need in one rock-solid platform.
Highlights

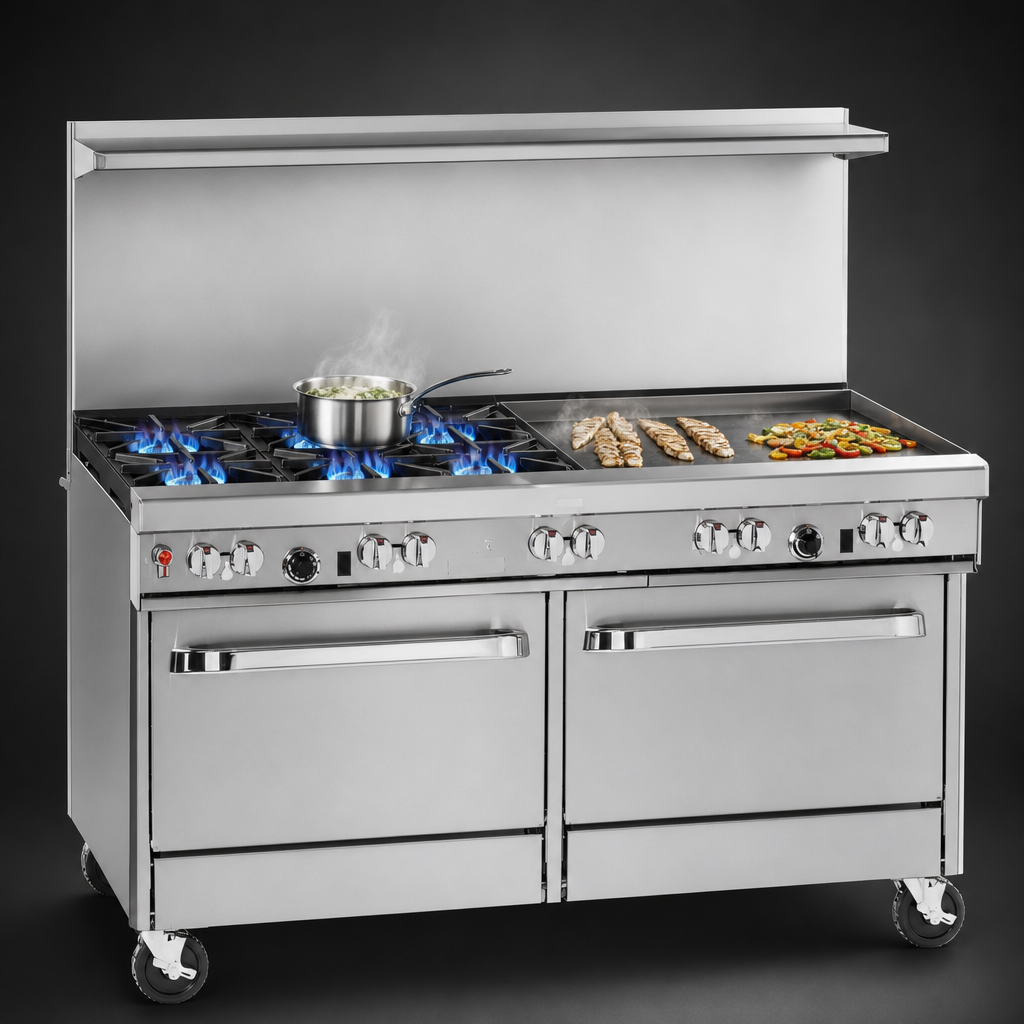

- Four (4) 33,000 BTU star/sauté burners with standing pilots for instant, even heat
- Removable cast-iron grates hold up to 14″ stock pots and clean easily
- 36″ polished steel griddle (½″ plate) with raised splash sides mounted on the right

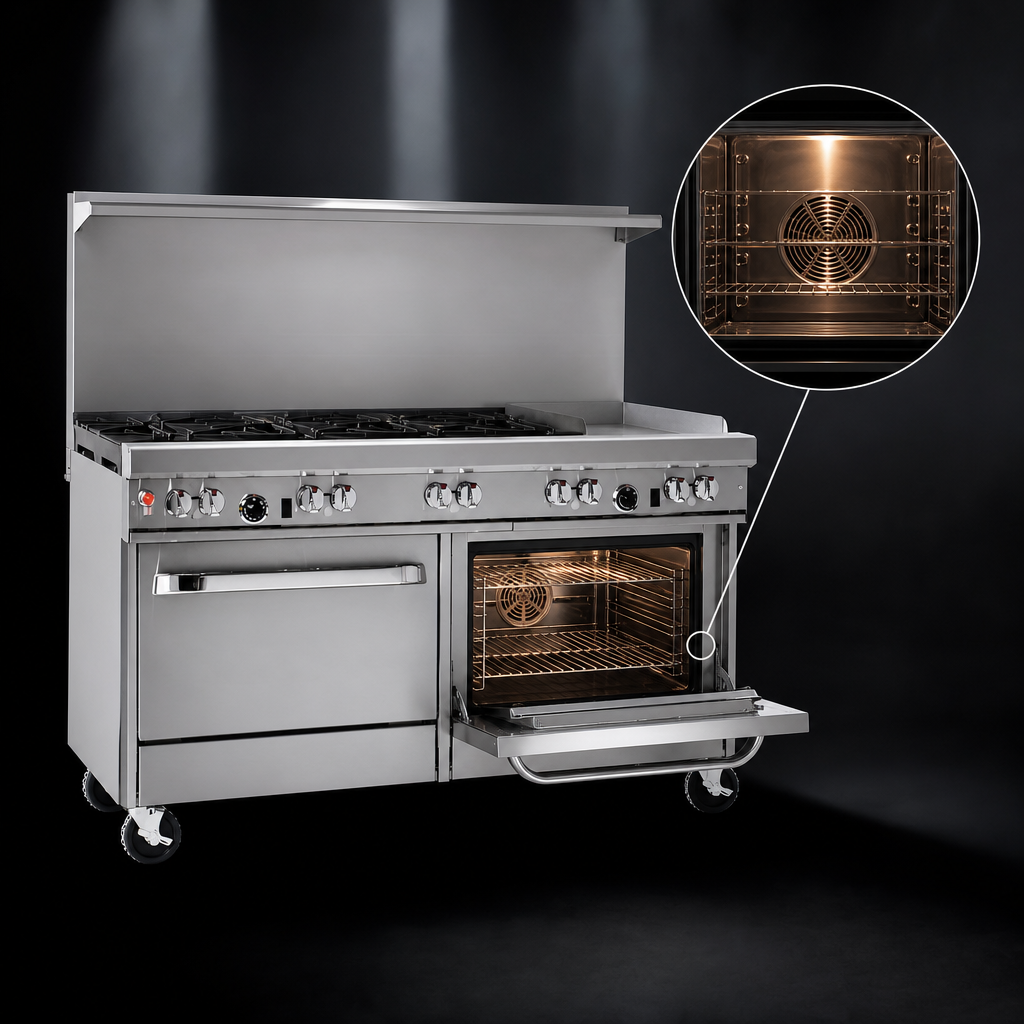

- 32,000 BTU convection oven, 175 – 550 °F thermostat, battery-spark ignition & three chrome racks
- Full stainless cabinet base keeps sheet pans, utensils or chemicals organized (optional no-charge doors)
- 22½″ flue riser with heavy-duty overshelf for plating and mise en place
- Front-mounted manual gas shut-off and factory-installed regulator simplify service
- 4″ stainless front rail plus 6″ adjustable stainless legs for easy cleaning under the range
- cCSAus, CSA Flame, CSA Star & NSF certified for safety and sanitation
At-a-Glance Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) to front rail |
| Cooking surface height | 37″ (940 mm) |
| Open burners | 4 star/sauté @ 33,000 BTU each |
| Griddle section | 36″ W × 27″ D, ½″ smooth plate, manual control |
| Oven type | Natural-gas convection, battery-spark ignition |
| Oven cavity | 14″ H × 26″ W × 24″ D, 3 racks / 5 positions |
| Total input (NAT) | 228,000 BTU/hr |
| Gas connection | ¾″ NPT (left rear; opposite griddle) |
| Min. gas pressure | 7″ W.C. (NAT) • 11″ W.C. (LP) |
| Electrical (fan) | 115 V, 1-ph, 5.9 A, 6′ cord & 3-prong plug |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
Need doors on the cabinet base? Simply request them when you place your order—Southbend supplies them at no extra cost.
Perfect For
- Full-service restaurants & high-volume diners
- Hotel, resort & institutional kitchens
- Catering commissaries and ghost kitchens
Power, versatility and legendary Southbend durability—bring the Ultimate Range to your kitchen and keep every station cooking at peak performance.
