Southbend (Middleby) 4603AC-2RR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
6 Star/Sauté Burners • 24" Raised Griddle-Broiler • Convection Oven • Cabinet BaseEngineered for kitchens that run at full throttle, the Southbend Ultimate Series range packs 263,500 BTU of multi-function firepower into a rugged, 60-inch footprint. From rapid sauté service to high-volume baking and broiling, this single unit replaces three separate appliances—freeing up space, labor and budget.
Why chefs love the Ultimate Series

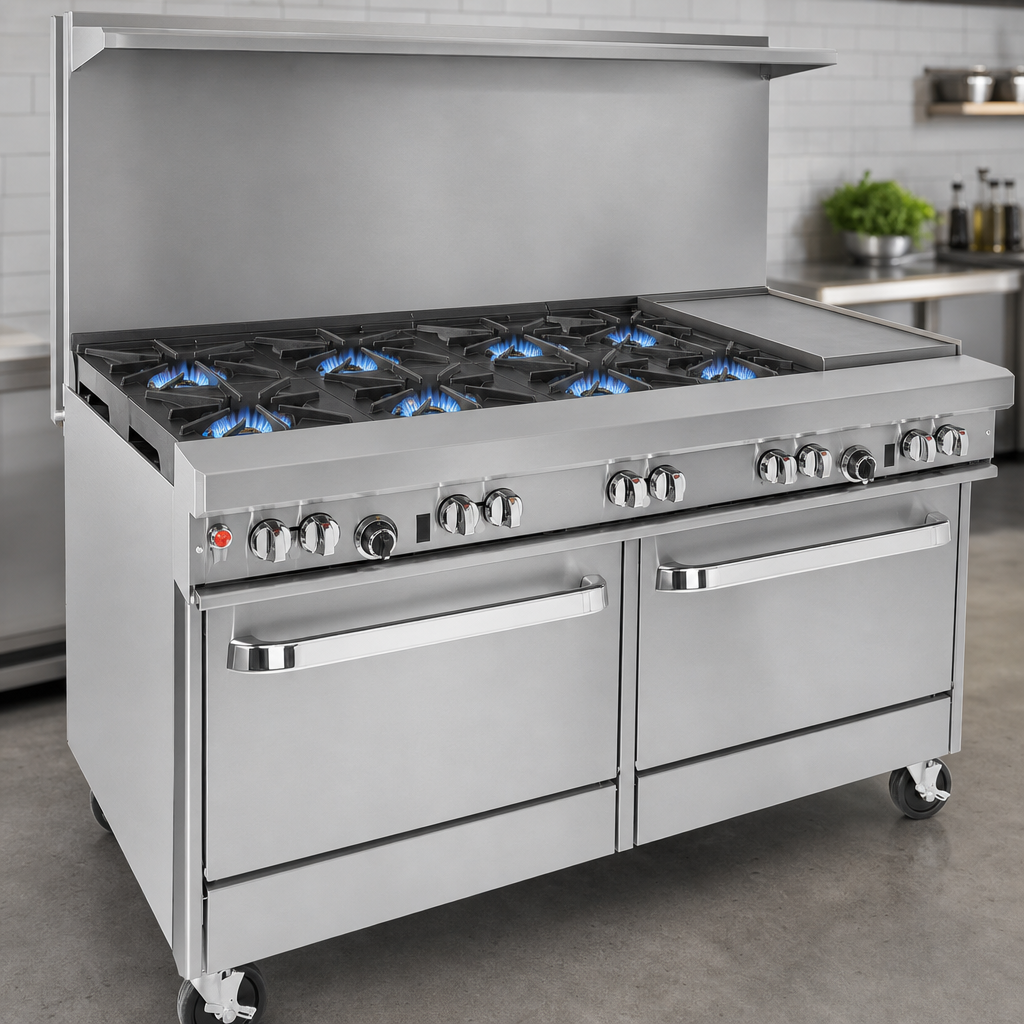

- Six 33,000 BTU star/sauté burners – lifetime-clog-free cast iron design delivers an even, controllable flame pattern.

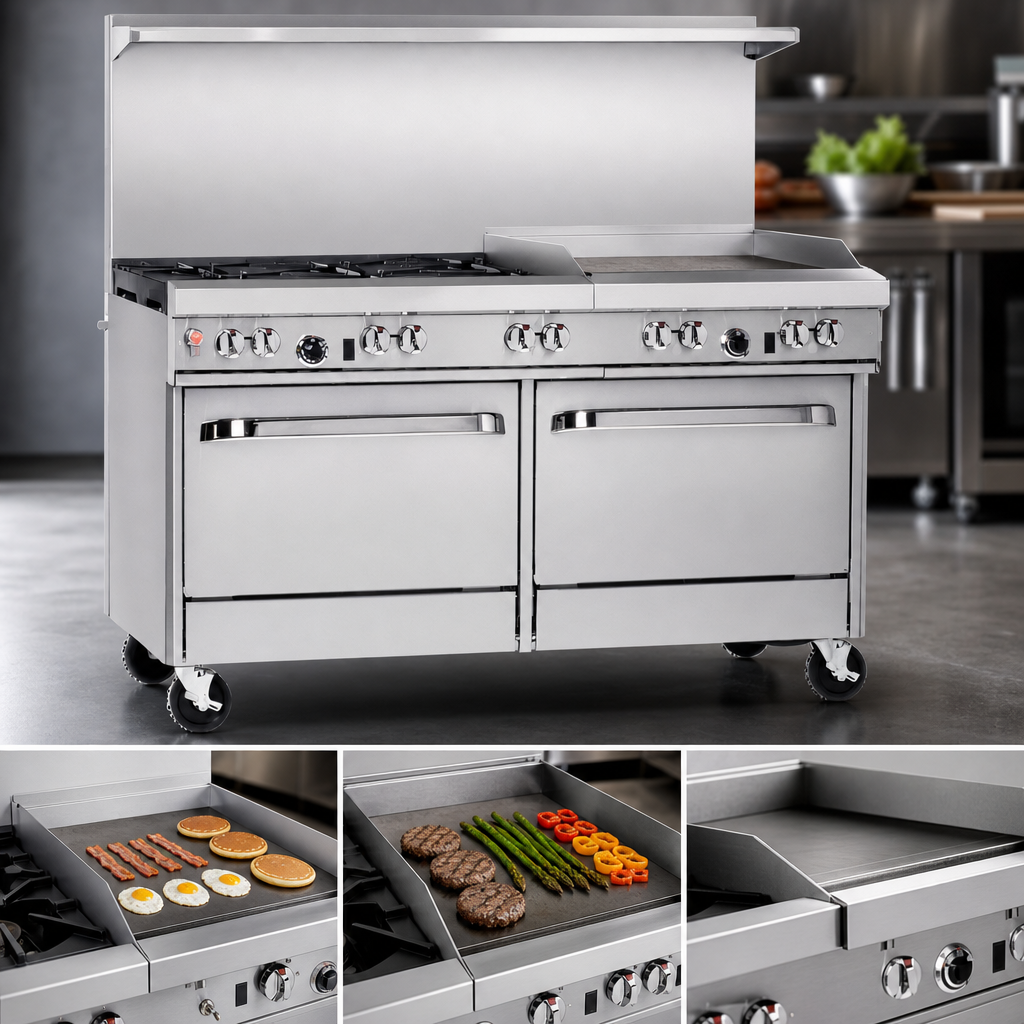

- 24" raised griddle with under-broiler – ½" polished steel plate plus instant broiler finish for steaks, melts or gratins (33,500 BTU).
- True convection oven – 32,000 BTU burner, battery spark ignition and forced-air fan bake full-size sheet pans in either direction; 175 – 550 °F.
- Stainless cabinet base – keep sheet pans, sauté pans or smallwares within arm’s reach; optional doors available.
- All-stainless exterior – front, sides, 22 ½" flue riser & high shelf stand up to daily spray-down cleaning.
- Front main gas shut-off & factory regulator – fast, safe service lock-out right where you need it.
- One-piece removable drip trays – streamline nightly cleanup and reduce labor costs.
- Certified & warrantied – cCSAus, CSA Flame, CSA Star & NSF listed; backed by a 1-year parts & labor warranty.
At-a-glance specs
| Model | 460AC Ultimate Series |
|---|---|
| Total BTU (Natural Gas) | 263,500 BTU/hr |
| Open Top Burners | 6 × 33,000 BTU star/sauté (standing pilots) |
| Raised Griddle-Broiler | 24" wide, ½" plate, 33,500 BTU |
| Oven Type / Capacity | 32,000 BTU convection, 14"H × 26"W × 24"D – fits 18" × 26" pans front- or side-load |
| Oven Racks Supplied | 3 (5-position rails) |
| Cooking Surface Height | 37" |
| Overall Dimensions (W × D × H) | 60 ¾" × 42 ⅛" × 59 ½" |
| Gas Connection | ¾" NPT (minimum supply 7" W.C. NAT) |
| Electrical (oven fan) | 115 V / 60 Hz / 1 Φ, 5.9 A, 6' cord & NEMA 5-15P plug |
| Crated Weight | ≈ 1,075 lb |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor, factory-installed regulator included |
What’s in the box
- Six cast-iron star/sauté burners with removable grates
- 24" raised griddle plate & broiler rack assembly
- Three nickel-plated oven racks
- Stainless 22 ½" flue riser with heavy-duty storage shelf
- Set of four 6" adjustable stainless legs
- Factory gas pressure regulator & operator’s manual
Need casters, cabinet doors or quick-disconnect hose kits? Factory-approved options are available—ask your food-service consultant for pricing.
