Southbend (Middleby) 4603AA-6R Ultimate Gas Ranges
Description

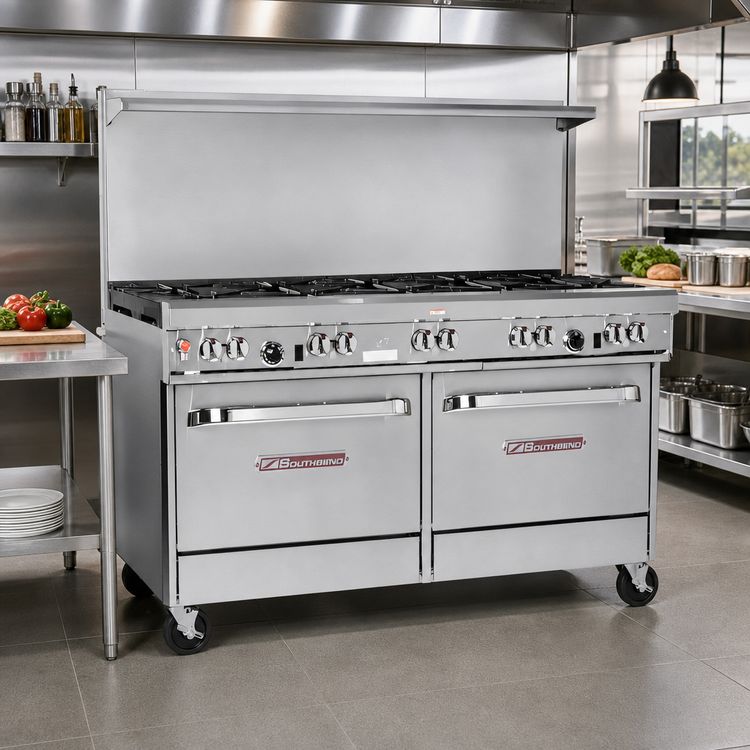

Southbend “Ultimate” 60″ Gas Restaurant Range
Nine-burner top · Dual convection ovens · 375,000 BTUBuilt for kitchens that refuse to compromise, the Southbend Ultimate 60″ range pairs patented star/sauté burners with high-output Pyromax™ power—then finishes dishes to perfection in two full-size convection ovens.
Key cooking power
- Unique 9-burner layout:
• Front-right (3) 33,000 BTU star/sauté burners
• Rear-right (2) 40,000 BTU Pyromax™ burners
• Left side (4) 33,000 BTU star/sauté burners - Cast-iron grates cover a 27″-deep surface and accept stock pots up to 14″.

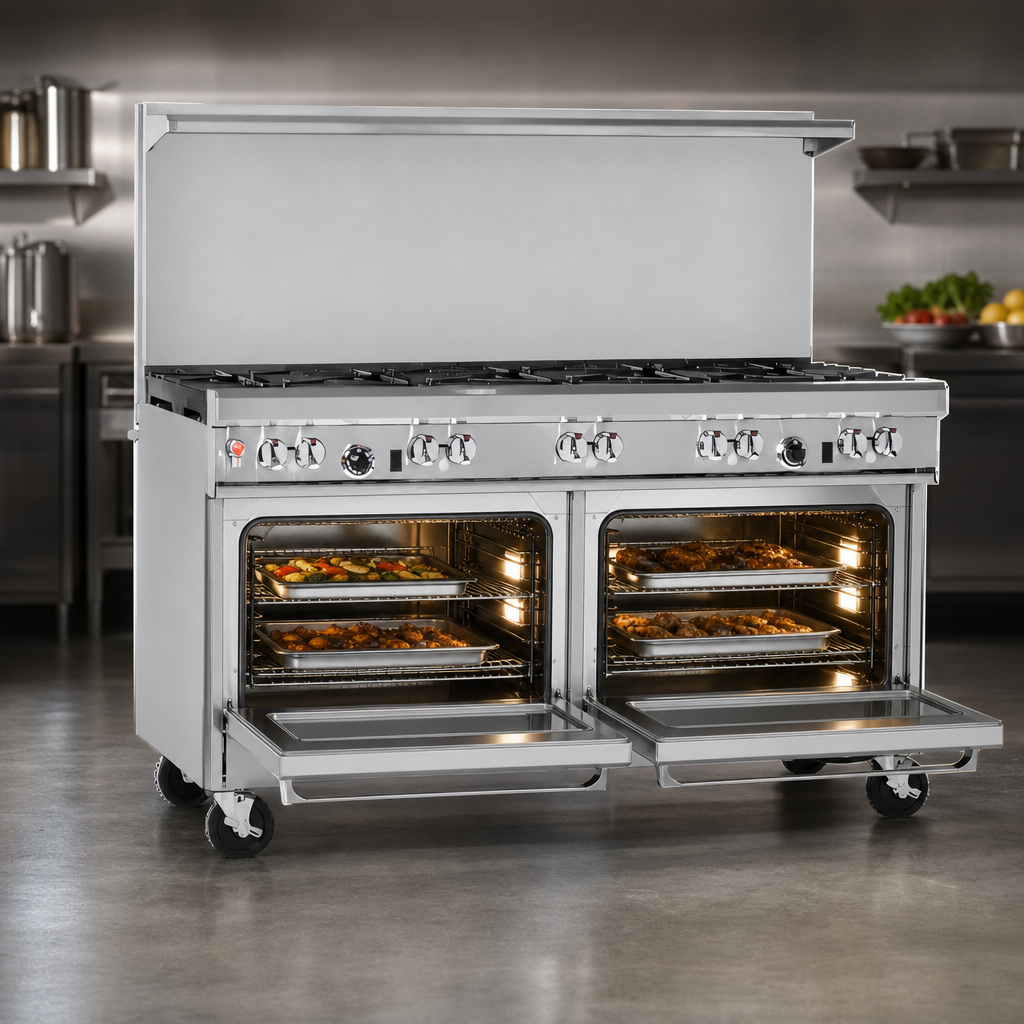

- Two 32,000 BTU convection ovens with battery-spark ignition and 175 – 550 °F thermostats.
- Porcelain-enameled, coved oven interiors for easy clean-up and even airflow.
- 22.5″ stainless flue riser with heavy-duty storage shelf.
- Front-mounted manual gas shut-off and factory-installed regulator.
- Stainless-steel front, sides, shelf and 6″ adjustable legs stand up to daily abuse.
- CSA & NSF certified; ships with 1-year parts & labor warranty.
Why chefs choose Southbend
Star burners blanket pan bottoms with an even flame for perfect searing and saucing, while rear Pyromax burners unleash 40,000 BTU each—ideal for rapid boils, woks or stock production. Below the cooktop, twin Turbo-Flow™ convection ovens roast, bake and reheat with consistent, lightning-fast results.
At-a-glance specs
| Total input | 375,000 BTU/hr (natural gas) |
|---|---|
| Cooktop | 7 × 33,000 BTU star burners + 2 × 40,000 BTU Pyromax burners |
| Ovens | (2) Convection, 32,000 BTU each, 3 racks per cavity |
| Interior size | 14″H × 26″W × 24″D (each) |
| Exterior dimensions | 60-3/4″W × 42-1/8″D × 59-1/2″H (to top of riser) |
| Working height | 37″ to cooking surface |
| Gas connection | 3/4″ NPT female, 7″ W.C. min. inlet pressure |
| Electrical | 115 V, 1 ph, 5.9 A, 6′ cord & 3-prong plug (convection fans) |
| Construction | Stainless steel body, cast-iron grates, removable drip trays |
What’s in the box
- Six nickel-plated oven racks (three per oven)
- Factory pressure regulator
- User, installation & warranty documentation
