Southbend (Middleby) 4603AA-6L Ultimate Gas Ranges
$17,095.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4603AA-6L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AA-6L Ultimate Gas Ranges
$17,095.00
Unit price
/
Unavailable
Description

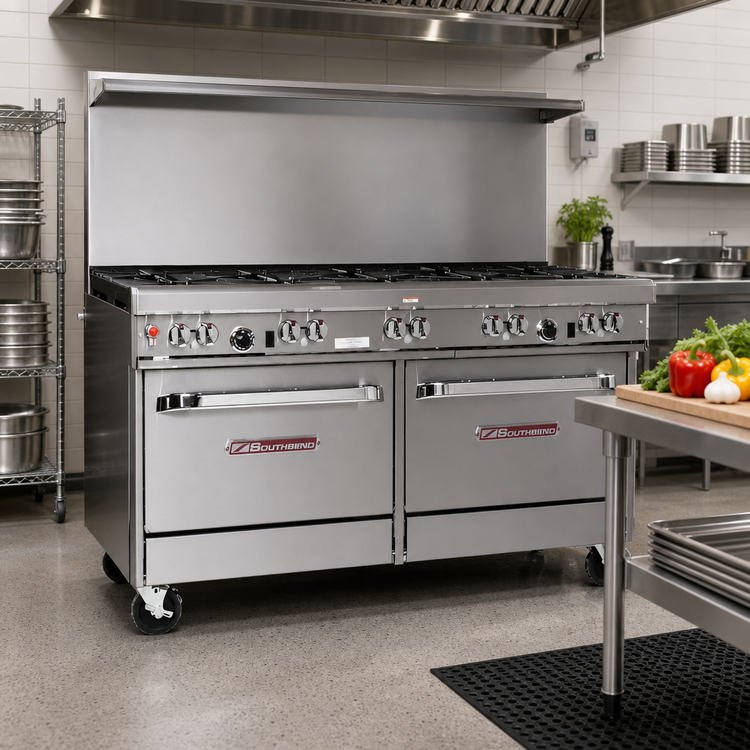

Southbend Ultimate 60" Gas Restaurant Range – Double Convection, Star & Pyromax Burners
Model 460 AA-SP | 375,000 BTU | CSA & NSF ListedThe Southbend Ultimate Series sets the standard for high-volume, high-performance kitchens. This powerful 60" range teams rapid-response Star/Sauté burners with high-output Pyromax burners and two full-size convection ovens—giving chefs the versatility to sear, sauté, simmer, roast, and bake from a single, rock-solid platform.
Why You’ll Love It

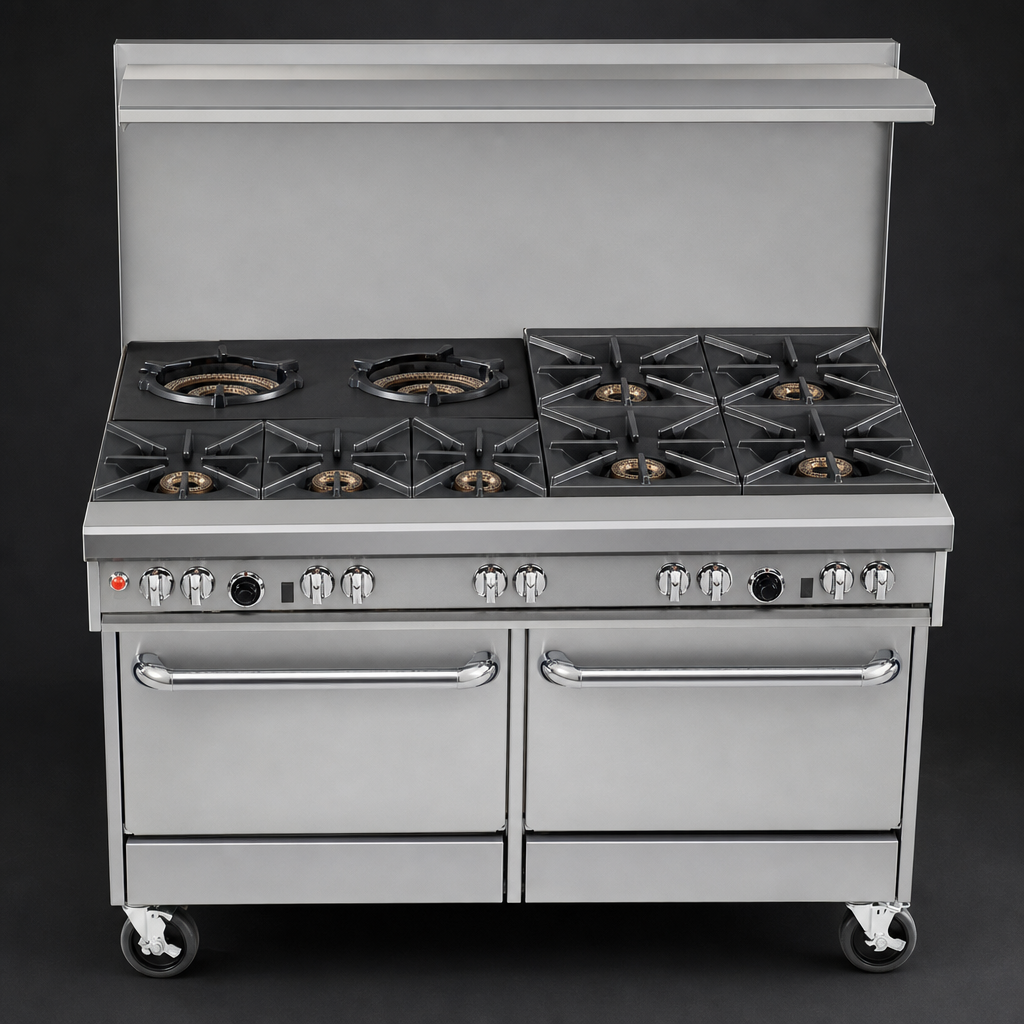

- 9 open burners – 7 × 33,000 BTU Star/Sauté + 2 × 40,000 BTU Pyromax for a blistering 311,000 BTU on the cooktop alone.

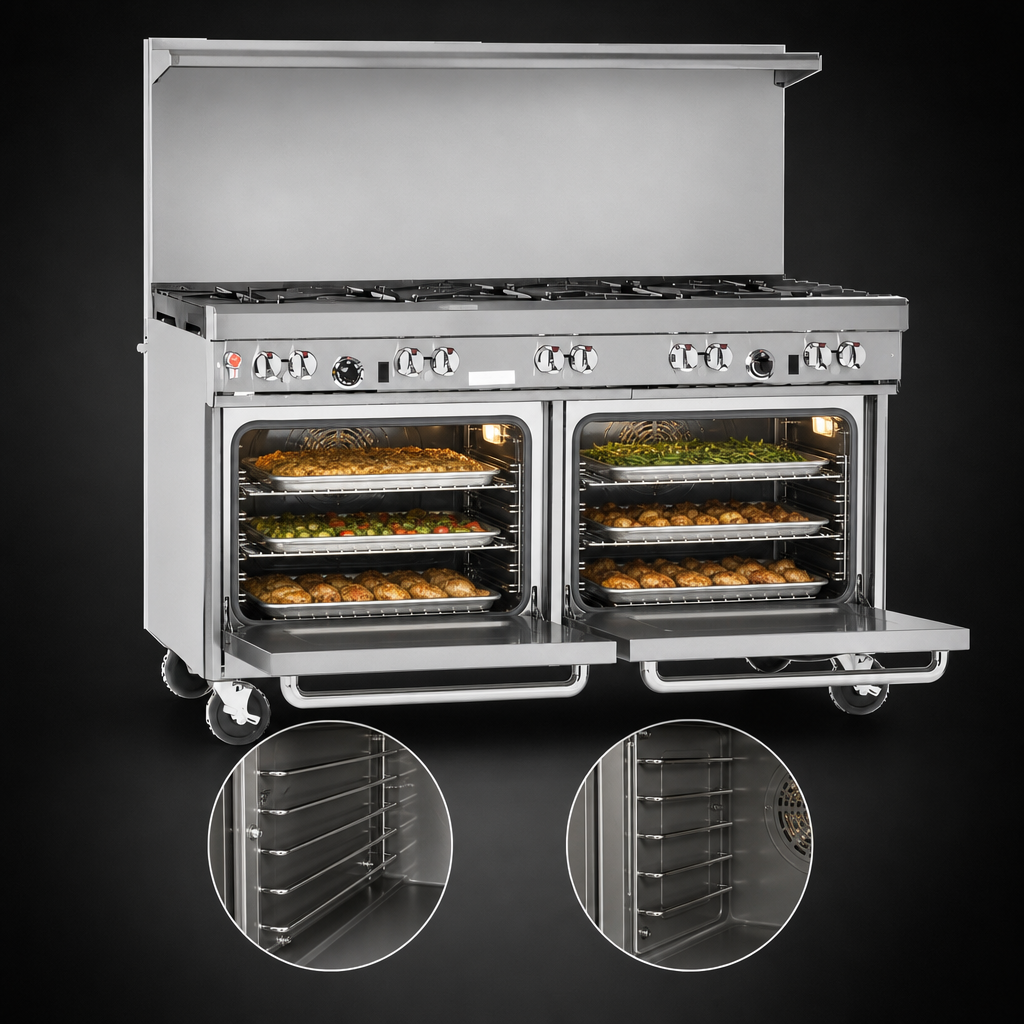

- Double convection ovens (32,000 BTU each) with battery spark ignition and 3 chrome racks per cavity.
- 22.5" flue riser & heavy-duty shelf keep cookware close at hand and the worktop clutter-free.
- All-stainless exterior (front, sides, shelf, & 6" adjustable legs) stands up to years of punishment.
- Front-mounted shut-off valve and factory-installed regulator for quick, code-compliant installs.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Width / Depth / Height | 60.75" W × 42.13" D × 59.50" H (to top of riser) |
|---|---|
| Cooktop Configuration |
Left: 3 Star/Sauté (front) + 2 Pyromax (rear) Right: 4 Star/Sauté |
| Total BTU | 375,000 BTU (Natural Gas) |
| Oven Bases | Two convection ovens, 26" W × 24" D × 14" H interior, 5-position rack guides |
| Oven Temperature Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Gas Connection | ¾" NPT (rear, left or right depending on griddle/charbroiler options) |
| Electrical (ovens) | 115 V / 60 Hz / 1 Ø, 5.9 A, 6' cord & 3-prong plug |
| Cooking Surface Area | 27" deep – rear grates accept up to 14" stock pots |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor (see Southbend warranty) |
What’s in the Box
- Southbend Ultimate 60" range with 22.5" flue riser & shelf
- (4) removable cast-iron grate sections
- (6) adjustable stainless legs
- (6) chrome oven racks (3 per cavity)
- Factory-installed pressure regulator
- Owner’s & installation manual
Installation & Utility Notes
- Minimum gas inlet pressure: 7" W.C. (Natural).
- Install under a properly sized vent hood in accordance with local codes.
- If using a flex-hose, ¾" I.D. minimum and ANSI Z21.69 compliant.
- Unit ships on 6" legs; casters available (sold separately).
Commercial use only. Oversized cookware (12"+ diameter) should be placed on rear grates to avoid excess heat on the front rail.
Damage resulting from improper installation, ventilation, or cleaning is not covered under warranty.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Top
(9) open burners
Base
(2) convection ovens
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) star/sauté burners right, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 375,000 BTU, CSA, NSF
