Southbend (Middleby) 4603AA-5R Ultimate Gas Ranges
Description

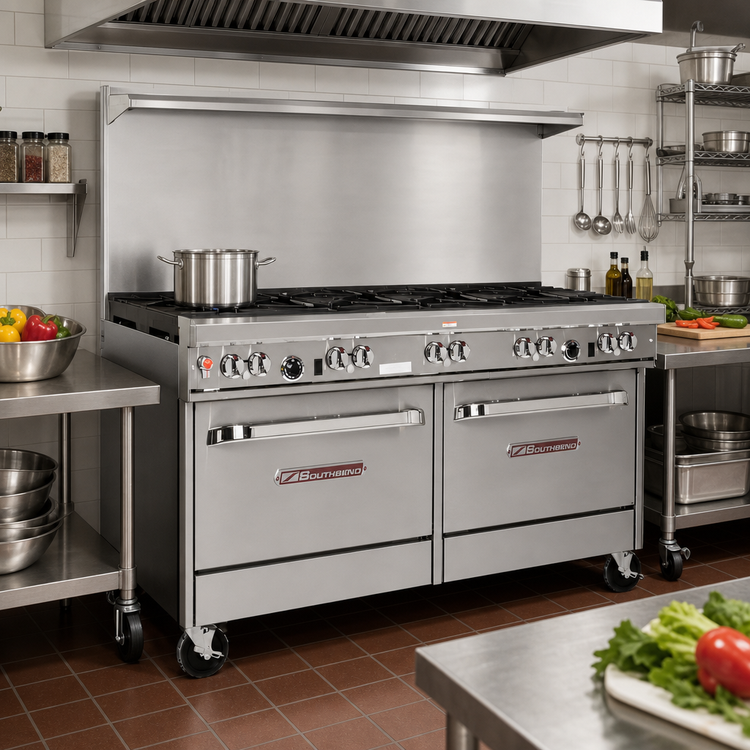

Southbend “Ultimate” 60" Gas Restaurant Range – Double Convection Oven Base

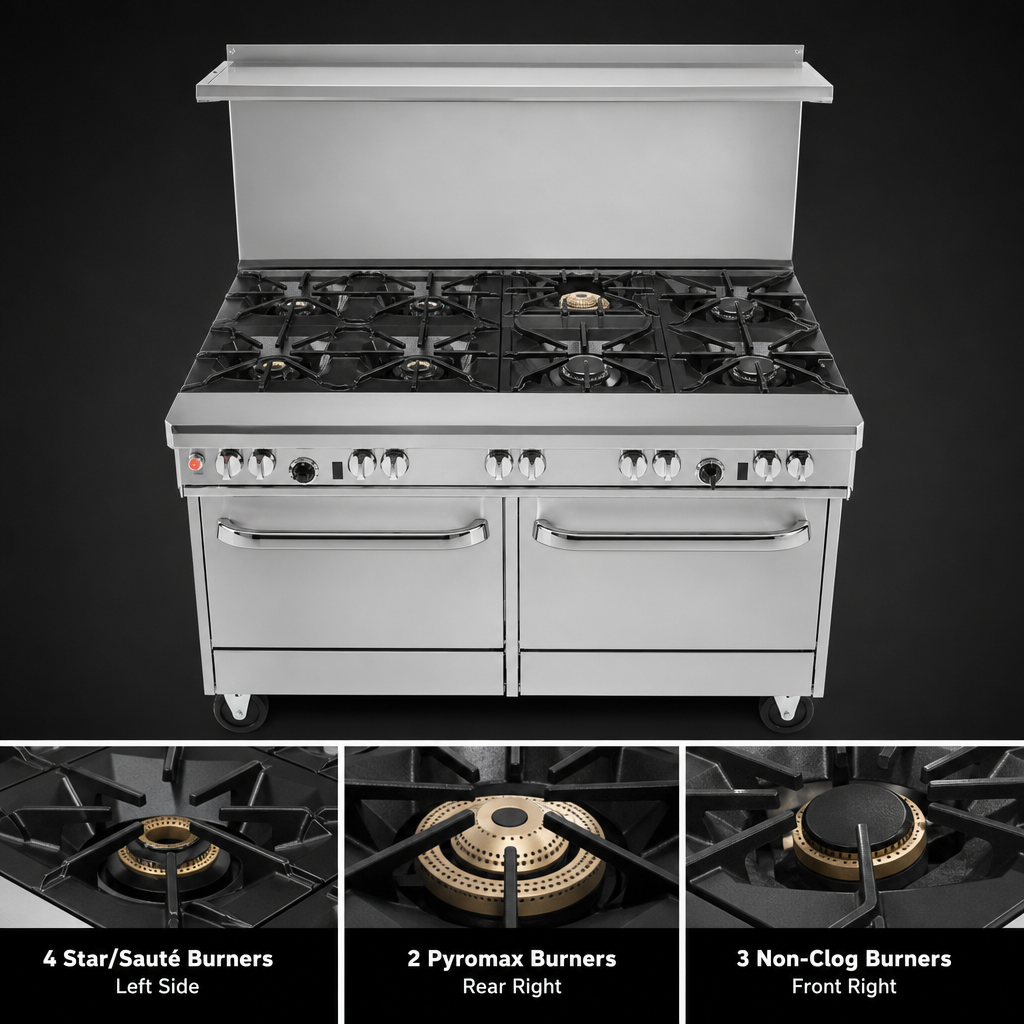

3 Non-Clog • 2 Pyromax • 4 Star/Sauté Burners | 375,000 BTUReplace an entire cook-line with one powerhouse. Southbend’s Ultimate series teams three distinct burner styles with twin convection ovens, giving high-volume kitchens the flexibility, speed and durability they demand.
At a Glance
- 60-3/4" wide heavy-duty range with 27" deep cooking surface & 4" stainless front rail
- (3) 33,000 BTU clog-free cast-iron burners – perfect for stocks, sauces & sauté work
- (2) 40,000 BTU Pyromax rear burners – patented high-output design for rapid boils & woks
- (4) 33,000 BTU star/sauté burners – even flame pattern for precision cooking

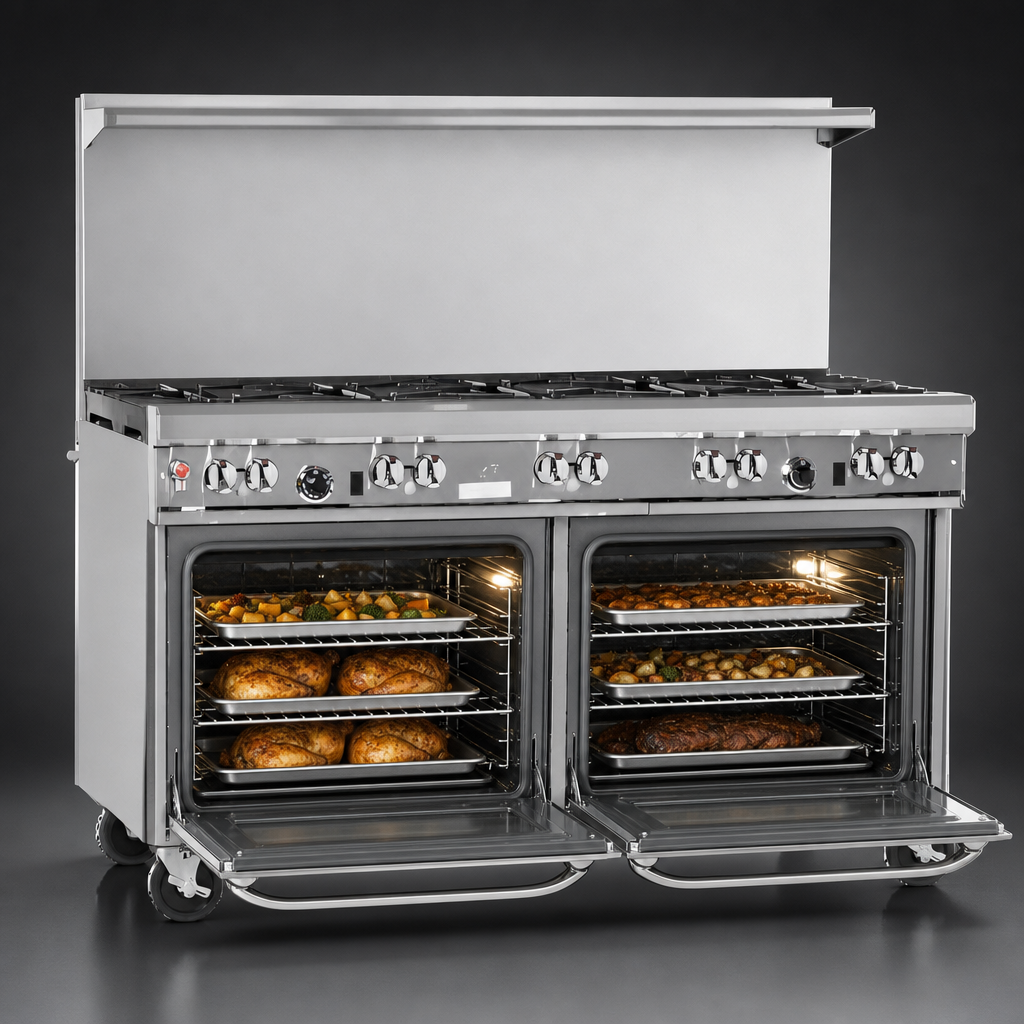

- Two 32,000 BTU convection ovens (battery spark ignition) with 175–550 °F thermostats
- (3) nickel-plated racks per oven, 5 rack positions, porcelain interiors for easy cleanup
- 22-1/2" stainless flue riser with integrated shelf keeps plates & pans within arm’s reach
- Front-mounted manual gas shut-off & factory pressure regulator for fast service access
- Stainless steel front, sides, shelf & 6" adjustable legs – built for years of commercial abuse
- CSA & NSF certified; ships Natural Gas (field convertible to LP)
Why Kitchens Choose “Ultimate”
A combined 375,000 BTU/hr output lets you boil, sear, sauté and bake simultaneously without breaking stride. Lifetime non-clog burners stay clean and efficient, while convection fans circulate heat for faster, more even baking—no hot spots, no pan rotation.
Specifications
| Manufacturer / Series | Southbend Ultimate Restaurant Range |
|---|---|
| Model | 460AA – Custom Burner Layout (3/2/4) |
| Overall width | 60-3/4" (1543 mm) |
| Overall depth | 42-1/8" (1070 mm) |
| Cook-top height | 37" (940 mm) |
| Total BTU | 375,000 BTU/hr (Natural Gas) |
| Burner configuration | (3) 33k Non-Clog front-right | (2) 40k Pyromax rear-right | (4) 33k Star/Sauté left |
| Ovens | 2 × Convection, 32,000 BTU each, battery spark ignition |
| Oven cavity (each) | 14"H × 26"W × 24"D porcelain, 3 racks / 5 positions |
| Thermostat range | 175 °F – 550 °F (79 °C – 288 °C) |
| Gas connection | 3/4" NPT, rear (opposite any optional griddle/charbroiler) |
| Electrical | 115 V, 5.9 A, 6' cord & 3-prong plug (convection fans) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (details) |
What’s in the Box
- Factory-installed gas pressure regulator
- Battery pack for spark ignition
- Porcelain drip trays under open burners
- Installation & operation manual
- Warranty registration card
Using cookware larger than 12" in diameter? For longevity, keep oversized pots on the rear burners and clear of the front rail.
