Southbend (Middleby)  |  Ultimate  |  SKU: 4603AA-5L

Southbend (Middleby) 4603AA-5L Ultimate Gas Ranges

$17,095.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

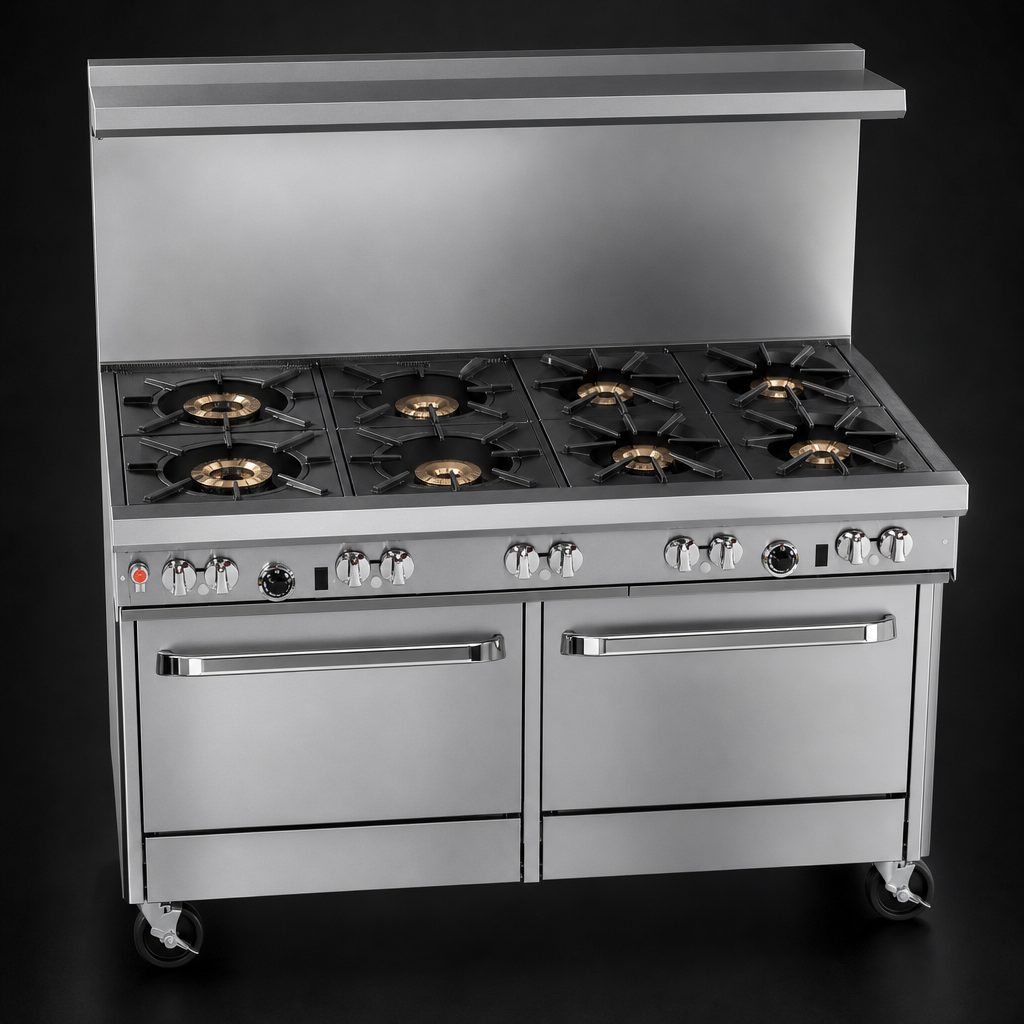

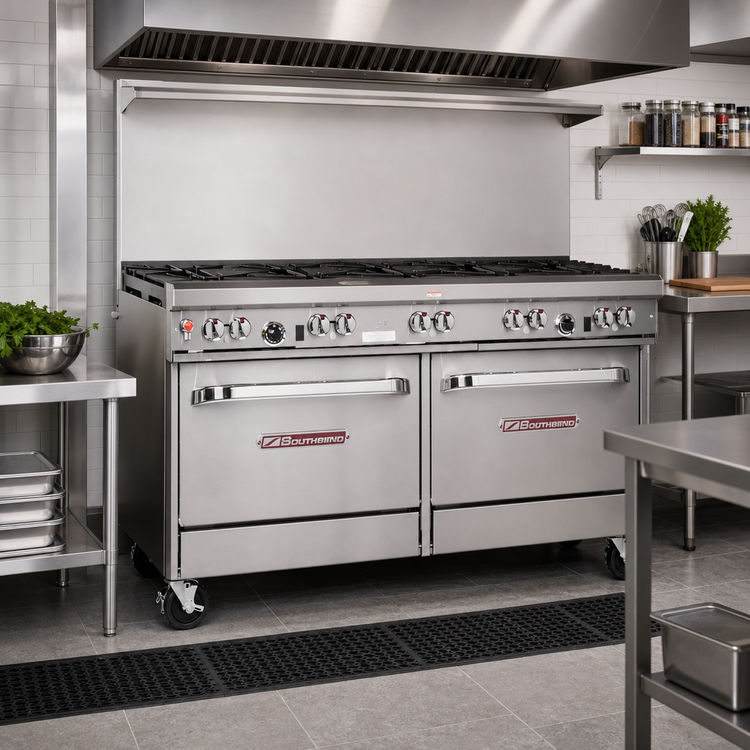

Southbend Ultimate 60″ Gas Restaurant Range w/ Dual Convection Ovens

3 Non-Clog • 2 Pyromax • 4 Star/Sauté Burners | 375,000 BTU Total Output

Built for the busiest kitchens, the Southbend Ultimate Series delivers legendary power, rock-solid construction and the menu flexibility chefs demand. This 60-inch model combines high-performance open burners with two full-size convection ovens—giving you everything you need on a single footprint.

Key Performance Features

  • 60-3/4″ wide cooking surface with lifetime cast-iron grates
  • 3 × 33,000 BTU non-clog burners (front left) – patented one-piece design never needs de-clogging
  • 2 × 40,000 BTU Pyromax™ high-output burners (rear left) – rapid stock-pot recovery
  • 4 × 33,000 BTU star/sauté burners (right side) – perfectly even flame pattern for sauté pans
  • Total open-top power: 311,000 BTU with reliable standing pilots

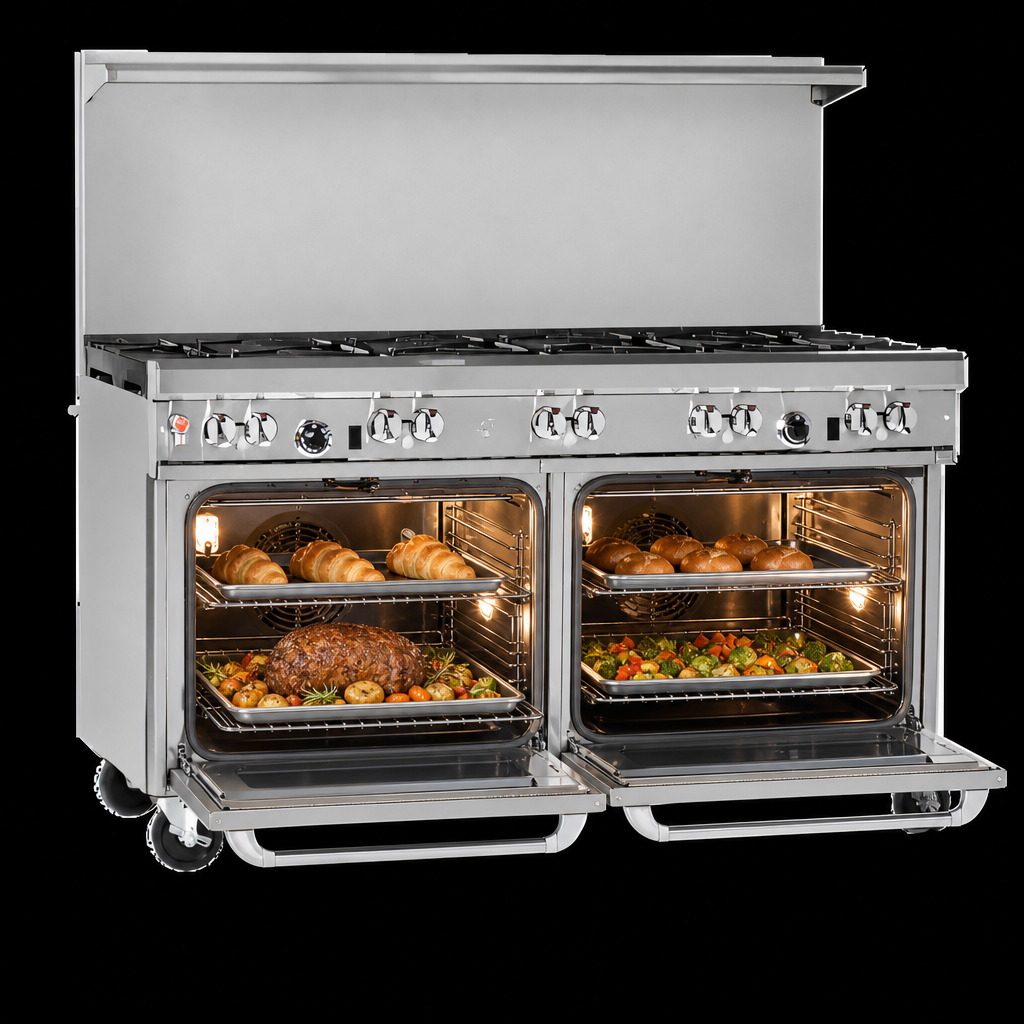

  • Dual 32,000 BTU convection ovens with battery-spark ignition—light anywhere, no external power required for ignition
  • ½-hp, 115 V fan motors circulate heat for faster, even baking & roasting
  • (3) heavy-duty chrome racks per oven with 5-position side rails; fits full-size sheet pans front-to-back or side-to-side

Durability & Cleanability

  • Stainless steel front, sides, 4″ rail, flue shelf & 6″ adjustable legs—stands up to daily scrubbing
  • 22-1/2″ flue riser with integrated storage shelf keeps plates, pans & spices within arm’s reach
  • Porcelain-enamel, coved-corner oven cavities wipe clean in seconds
  • Spring-assisted oven doors stay balanced and seal tight for the life of the range
  • Front-mounted gas shut-off and factory-installed regulator streamline installation & service

Quick-View Specifications

Manufacturer Southbend (Middleby)
Series / Model Ultimate 60″ Restaurant Range – Custom Burner Mix
Overall Width 60-3/4″ (1543 mm)
Overall Depth 42-1/8″ (1070 mm)
Cooking Height 37″ to cooktop / 59-1/2″ to top of flue shelf
Total Gas Input 375,000 BTU/hr (Natural or LP – specify)
Gas Connection ¾″ NPT, rear (field-convertible left/right)
Electrical 115 V, 1-Phase, 5.9 A (convection fan motors)
Oven Interior (each) 26″ W × 24″ D × 14″ H, porcelain enamel
Certifications CSA, CSA-Sanitation, NSF
Warranty 1-year parts & labor (see Southbend limited warranty)
IMPORTANT: Intended for use under a commercial vent hood. For optimal performance and to protect front components, avoid letting cookware larger than 12″ extend over the front rail. Always keep pilots and grates free of grease-laden debris.

Need financing? Competitive payment plans are available through Middleby Equipment Financing. Full warranty details can be found at southbendnc.com.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Top

(9) open burners

Base

(2) convection ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (3) non-clog burners front left, (2) pyromax burners rear left, (4) star/sauté burners right, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 375,000 BTU, CSA, NSF
