Southbend (Middleby) 4603AA-4GR Ultimate Gas Ranges
Southbend (Middleby) 4603AA-4GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AA-4GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
2 Star/Sauté Burners • 48" Right-Side Griddle • Double Convection OvensBuilt for kitchens that run full-tilt from breakfast rush to last call, the Southbend Ultimate 60" Range pairs blazing-hot star burners with a sprawling 1" thick griddle and two high-performance convection ovens. Heavy-duty stainless construction, front-mounted gas shut-off, and a factory-installed regulator make installation as easy as the cooking that follows.
Why You’ll Love It
- Two 33,000 BTU Star/Sauté Burners – cast-iron design spreads flame evenly for fast searing and pan work.
- Massive 48" Griddle (Right) – 1" polished steel plate with raised sides handles burgers, breakfast, or sauté pans side-by-side (≈ 96,000 BTU).

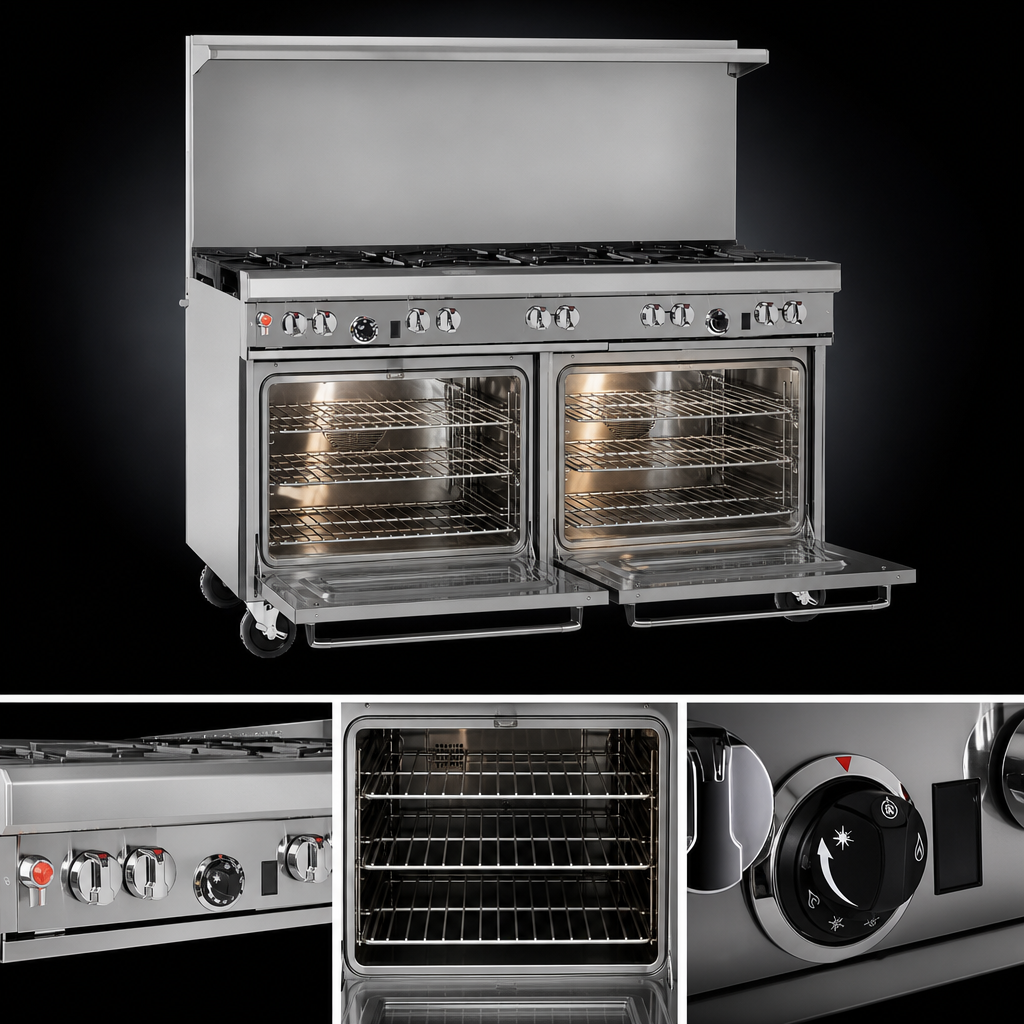

- Twin Convection Ovens – 32,000 BTU each, battery-spark ignition, 175 – 550 °F range, three racks per cavity, and 5-position side rails for full-size sheet pans.
- 210,000 BTU Total Output – power to keep up during peak service without compromise.
- All-Stainless Exterior – front, sides, 22-½" flue riser shelf, & 6" adjustable legs stand up to daily cleaning.
- Front Gas Shut-Off & Standing Pilots – quick line safety and instant relight.
- Factory-Installed ¾" Regulator – no extra parts needed on site.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas, sanitation, and safety compliance.
At-a-Glance Specs
| Model | Ultimate 460AA Custom (2-Star / 48" Griddle) |
|---|---|
| Overall Width | 60 ¾" (1543 mm) |
| Overall Depth | 42 ⅛" (1070 mm) |
| Cooking-Top Height | 37" |
| Top Configuration | (2) 33 k BTU Star Burners + 48" Griddle (96 k BTU) |
| Oven Base | (2) Convection, 32 k BTU each, battery spark ignition |
| Total Input | ≈ 210,000 BTU/hr (natural gas or LP-field convertible) |
| Gas Connection | ¾" NPT female, rear (left/right depends on griddle placement) |
| Electrical (ovens) | 115 V / 60 Hz / 1-ph, 6′ cord & 3-prong plug, 5.9 A max |
| Oven Interior (each) | 26" W × 24" D × 14" H, porcelain enamel, coved corners |
| Racks Included | 3 per oven (5 positions) |
| Shipping Weight | ≈ 1,075 lb (488 kg) |
| Warranty | 1-year parts & labor (see details) |
What’s Included
- 22 ½" flue riser with integrated heavy-duty shelf
- 6" stainless adjustable legs
- Pressure regulator & installation hardware
- Operator, service, & parts manuals
Popular Add-Ons (Sold Separately)
- Swivel locking casters
- Quick-disconnect gas hose kits (3-, 4-, or 5-ft)
- 10" or 5" flue risers, salamander & cheesemelter mounts
- Extra oven racks
Need financing? Middleby Equipment Financing offers fast approvals and affordable monthly payments – learn more.
