Southbend (Middleby)  |  Ultimate  |  SKU: 4603AA-3TR

Southbend (Middleby) 4603AA-3TR Ultimate Gas Ranges

$20,193.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

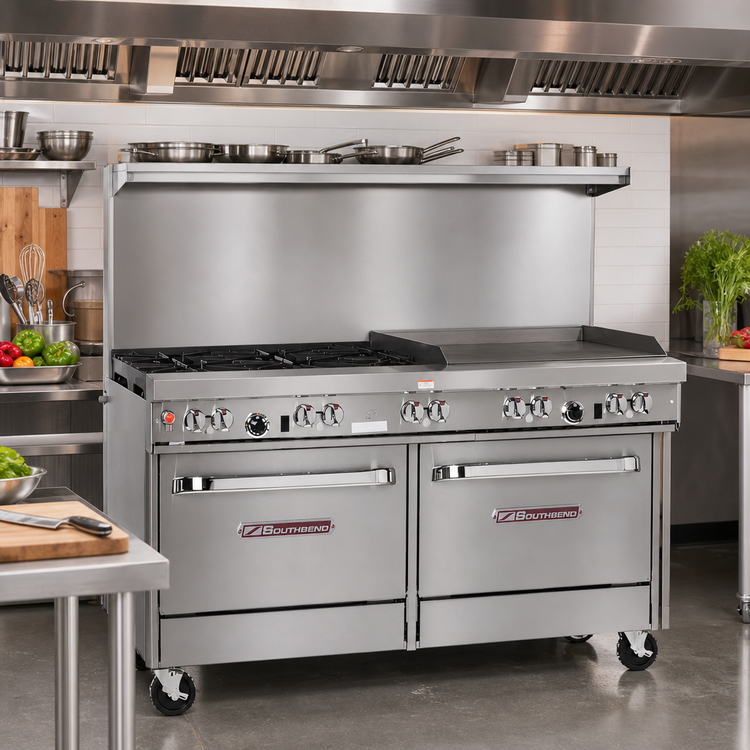

Southbend “Ultimate” 60" Gas Restaurant Range

4 Star/Sauté Burners • 36" Thermostatic Griddle (Right) • Double Convection Ovens • 260,000 BTU

Built for chefs who refuse to compromise, the Southbend Ultimate 60" range lets you sauté, griddle and bake — all at once — inside a single, rugged piece of equipment. From high-heat searing on the star burners to consistent griddle work and reliable convection baking, this range keeps service moving at top speed.

Key Performance Features

  • Four (4) 33,000 BTU cast-iron star/sauté burners with standing pilots for instant ignition
  • Heavy-duty, removable cast-iron grates; rear position supports up to a 14" stock pot
  • 36" right-hand thermostatic griddle — ½" polished steel plate with raised sides, 150–550 °F control range
  • Dual 32,000 BTU convection ovens with battery spark ignition and independent on/off fan switch
  • Porcelain-enamel oven cavities (14"H × 26"W × 24"D) with coved corners for easy cleaning
  • Three oven racks per cavity; five rack positions accommodate full-size sheet pans both ways
  • 22 ½" flue riser with integrated heavy-duty shelf for pans and smallwares
  • Front-mounted manual gas shut-off plus factory-installed ¾" pressure regulator
  • 4" stainless steel front rail, stainless steel front, sides, shelf and 6" adjustable legs
  • Certified cCSAus, CSA Flame, CSA Star and NSF
  • One-year parts & labor warranty backed by Southbend’s nationwide service network

Technical Specifications

Overall width 60 ³⁄₄" (1543 mm)
Overall depth 34" (864 mm)
Cooking surface depth 27"
Work-top height 37"
Open burners 4 × 33,000 BTU star (132,000 BTU total)
Griddle 36" right, thermostatic, 64,000 BTU
Convection ovens 2 × 32,000 BTU (64,000 BTU total)
Total input 260,000 BTU/hr (natural gas)
Gas connection ¾" NPT female, rear (location reverses with griddle position)
Electric 115 V / 60 Hz / 1-ph, 5.9 A, 6′ cord & 3-prong plug
Oven cavity (each) 14"H × 26"W × 24"D, 3 racks included
Construction Stainless steel front, sides, shelf & legs
Warranty 1-year parts & labor
Important: This appliance is intended for commercial use only. • Limit cookware 12" or larger to the rear burners to avoid rail damage. • Never cover the griddle or burners with sheet pans while lit. • Install under a properly sized vent hood and supply 7" W.C. natural-gas pressure. Refer to the owner’s manual and warranty for full installation and maintenance guidelines.

Need flexible payment options? Explore Middleby Equipment Financing for fast credit decisions and affordable monthly terms.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

44.5in

Shipping Weight

1075.0lbs

Control Type

thermostatic controls

Base

(2) convection ovens

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle with thermostat

Exterior Finish

stainless steel front & sides

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 60", (4) star/sauté burners, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 260,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
