Southbend (Middleby) 4603AA-3GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60″ Gas Restaurant Range
4 Star/Sauté Burners • 36″ Right-Side Griddle • Dual Convection OvensPut a true workhorse on your cookline. Southbend’s Ultimate Series combines high-output open burners, a full-width griddle and two turbo-charged convection ovens into one 60 inch platform – all wrapped in easy-to-clean stainless steel and backed by legendary Southbend reliability.
Why You’ll Love It
- Four 33,000 BTU cast-iron star/sauté burners for even flame distribution and lightning-fast heat-up.

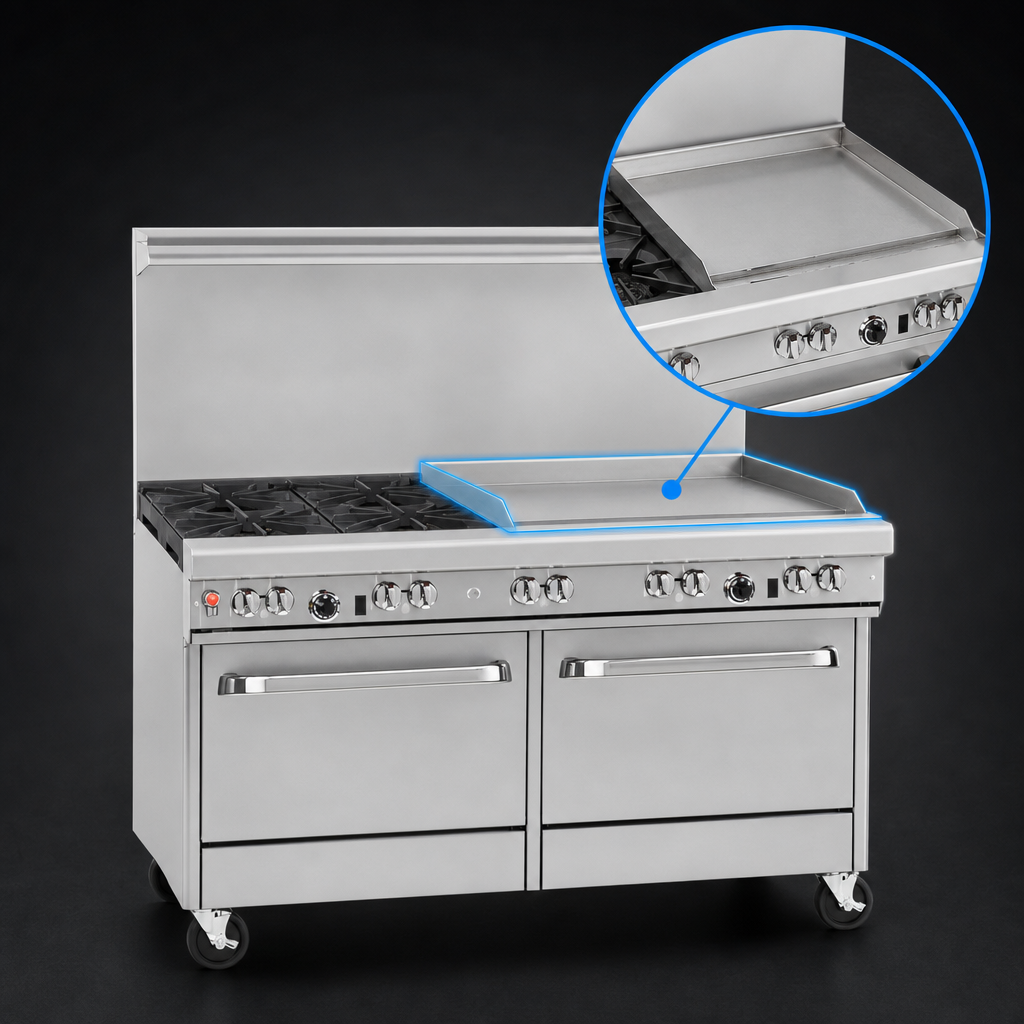

- One 36″ wide, ½″ thick polished steel griddle (right-side) with raised splash sides & manual controls – perfect for breakfast plates or searing proteins.
- Two full-size 32,000 BTU convection ovens with battery spark ignition, each supplied with 3 racks on 5 positions for maximum menu flexibility.
- 22½″ flue riser with overshelf keeps cookware, spices or plating pans right where you need them.
- Front-mounted manual gas shut-off for the entire range – fast & safe.
- All-stainless front, sides, shelf and 6″ adjustable legs stand up to the toughest kitchen abuse.
- Total output: ≈ 260,000 BTU/hr (natural or LP – specify when ordering).
- Independently certified: cCSAus, CSA Flame, CSA Star & NSF.
Specifications
| Model | Ultimate 460-AA (60″ Series) |
|---|---|
| Overall width | 60.75″ / 1543 mm |
| Overall depth | 42.13″ / 1070 mm (incl. oven handles) |
| Cooking height | 37″ / 940 mm |
| Top configuration | (4) star burners + 36″ smooth griddle (right) |
| Burner rating | 33,000 BTU each (natural gas) |
| Griddle plate | ½″ polished steel, manual control |
| Oven base | (2) convection – 32,000 BTU each, 175 °F – 550 °F |
| Racks supplied | 3 per oven (6 total) |
| Total input | ≈ 260,000 BTU/hr |
| Gas connection | ¾″ NPT, rear |
| Electrical | 115 V / 1 ph / 5.9 A, 6′ cord & plug (convection fans) |
| Shipping weight | ≈ 1,080 lb / 490 kg |
| Warranty | 1 year parts & labor (see warranty statement) |
What’s in the Box
- Heavy-duty cast-iron top grates (removable)
- (6) nickel-plated oven racks
- Factory-installed gas pressure regulator
- Operator’s manual & warranty documentation
• For maximum performance, install under a properly sized ventilation hood.
• Oversized cookware (12″ +) should be used on the rear burners to avoid heat damage to the front rail.
• Intended for commercial use only.
