Southbend (Middleby) 4603AA-3CR Ultimate Gas Ranges
Southbend (Middleby) 4603AA-3CR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

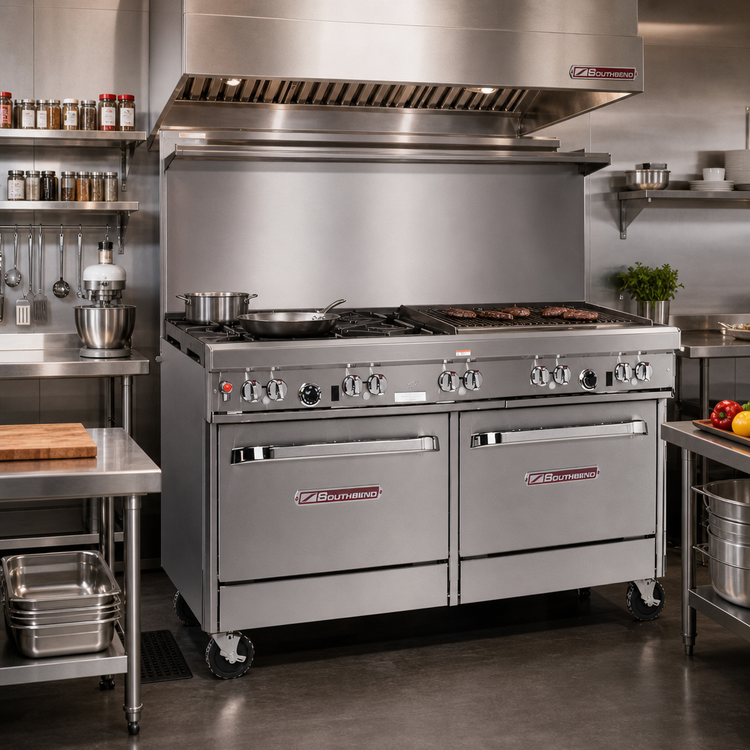

Southbend Ultimate 60" Restaurant Range – 4 Star Burners, 36" Charbroiler & Double Convection Ovens
Model: Ultimate 60-Series | 292,000 BTU | CSA & NSF ListedGive your kitchen a single-station workhorse that sears, grills, bakes and roasts without compromise. Southbend’s Ultimate 60" gas range marries four 33,000 BTU star/saute burners with a heavy-duty 36" charbroiler and TWO full-size convection ovens—delivering a combined 292,000 BTU of culinary power in less than 5 ft of line space.
Why You’ll Love It
- (4) 33,000 BTU cast-iron star burners for fast, even heat and effortless pan mobility.
- Right-side 36" charbroiler with cast-iron grates for steakhouse-level marks and flavor.
- Dual 32,000 BTU convection ovens: 175-550 °F thermostat, battery-spark ignition and (3) chrome racks each.
- 27" deep cooking surface; rear grates accept 14" stock pots—perfect for high-volume operations.
- 22.5" flue riser with stainless utility shelf keeps pans, seasonings and plating essentials within arm’s reach.
- 4" stainless front rail plus stainless front, sides, shelf and adjustable 6" legs for a polished, easy-to-clean line-up.
- Front-mounted manual gas shut-off and factory regulator for quick service calls and added safety.
- Plug-and-play 115 V cord (5.9 A) powers the convection blowers—no hard-wiring required.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Technical Specifications
Overall width | 60.75" |
---|---|
Overall depth | 34" |
Cooking height | 37" |
Height w/ flue riser | 59.5" |
Cooktop layout | (4) star burners + 36" charbroiler (right-hand) |
Total input | 292,000 BTU (Natural Gas) |
Convection ovens | 2 × 32,000 BTU; 26"W × 24"D × 14"H interior; (3) racks, 5 positions each |
Gas connection | 3/4" NPT (rear, opposite charbroiler side) |
Electrical | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
Exterior material | Stainless steel front, sides, shelf & legs; cast-iron grates |
Certifications | CSA, NSF |
Shipping weight | Approx. 1,075 lb |
