Southbend (Middleby) 4603AA-2TR Ultimate Gas Ranges
$20,015.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4603AA-2TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4603AA-2TR Ultimate Gas Ranges
$20,015.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Gas Restaurant Range
6 Star/Sauté Burners • 24" Right-Side Thermostatic Griddle • Dual Convection OvensBuilt for the busiest commercial kitchens, the Southbend Ultimate 60-inch range (model 7706) combines a high-performance cooktop with two full-size convection ovens—delivering 310,000 BTU of total cooking power in one rugged, stainless-steel workstation.
Highlights at a Glance

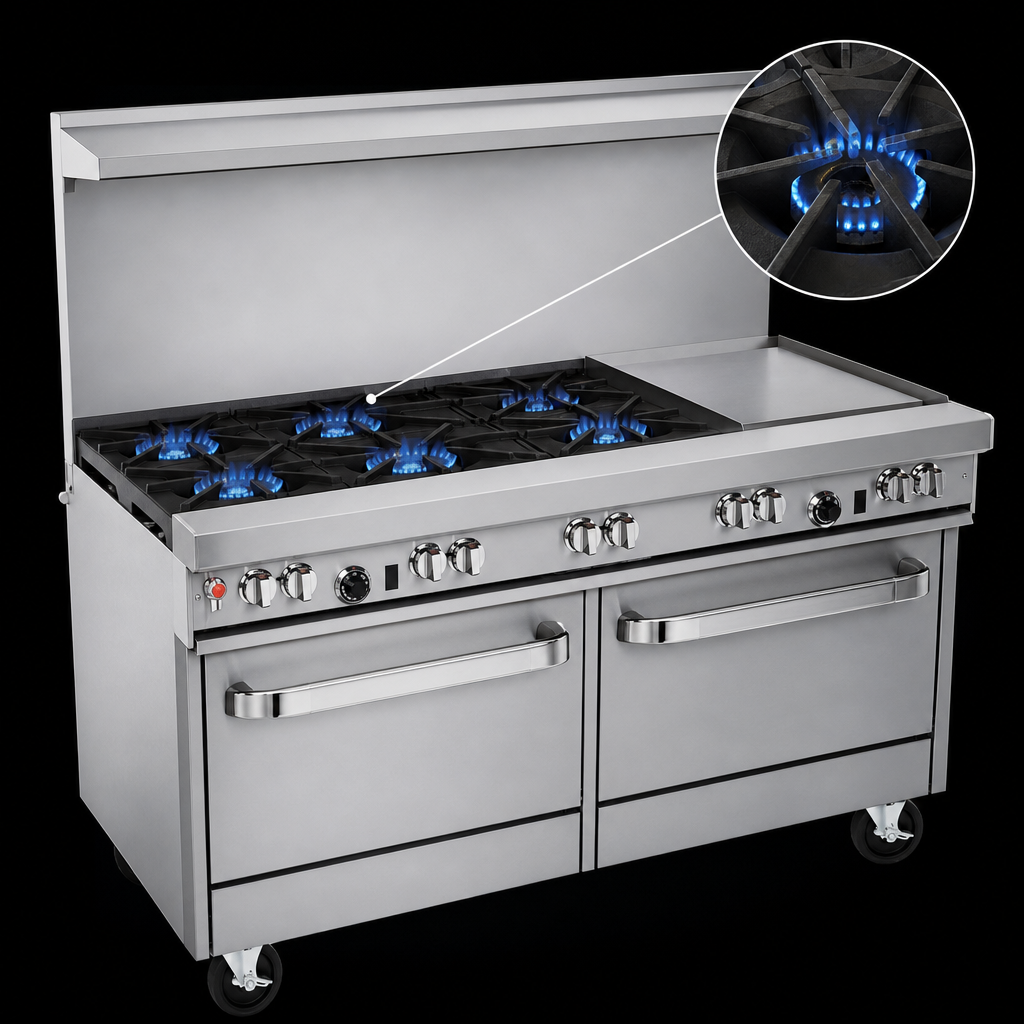

- Six 33,000 BTU cast-iron star/sauté burners provide wide, even flame distribution for precise sautéing, searing and stock work.
- 24" right-hand griddle features a ½" polished steel plate with thermostatic control (200 – 550 °F) for consistent pancakes, burgers and more.
- Two 32,000 BTU gas convection ovens with battery-spark ignition; porcelain interiors include three racks each (5 position guides) for full-size sheet pans.
- 22 ½" flue riser with integrated heavy-duty shelf keeps platters, pans and spices within easy reach.
- Front-mounted manual gas shut-off and factory-installed ¾" pressure regulator streamline installation and service.
- All-stainless front, sides, shelf and 4" front rail; 6" adjustable stainless legs stand up to daily cleaning and heavy loads.
- Standing pilots for open burners; ovens ignite with reliable battery spark—no external power needed for lighting.
- Certified cCSAus, CSA Star, CSA Flame & NSF for gas safety and sanitation.
- Backed by Southbend’s 1-year parts & labor commercial warranty.
Technical Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth (with convection base) | 42 ⅛" / 1070 mm |
| Cooking surface height | 37" / 940 mm |
| Flue riser height | 22 ½" / 572 mm |
| Oven interior (each) | 26" W × 24" D × 14" H (660 × 610 × 356 mm) |
| Total input | 310,000 BTU/hr (Natural or LP) |
| Burners | (6) 33,000 BTU star burners |
| Griddle | 24" right, 64,000 BTU, thermostatic |
| Convection ovens | (2) × 32,000 BTU, 175 – 550 °F thermostat, battery spark ignition |
| Gas connection | ¾" NPT rear, min. inlet 7" W.C. Nat / 11" W.C. LP |
| Electrical | 115 V, 5.9 A, 6' cord & 3-prong plug (convection fan) |
| Crated weight | ≈ 1,075 lb / 488 kg |
Important: Install under a properly sized vent hood and connect with a ¾" gas line or flexible hose rated to ANSI Z 21.69. Minimum clearance to combustible construction is 10" at sides and rear. Unit is intended for commercial use only.
Specifications are based on information published by Southbend and are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
44.5in
Shipping Weight
1075.0lbs
Top
(6) open burners, (1) 24" griddle with thermostat
Base
(2) convection ovens
Control Type
thermostatic controls
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Specifications
Ultimate Restaurant Range, gas, 60", (6) star/sauté burners, (1) 24" griddle right, thermostatic controls, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 310,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
