Southbend (Middleby) 4603AA-2CR Ultimate Gas Ranges
Description

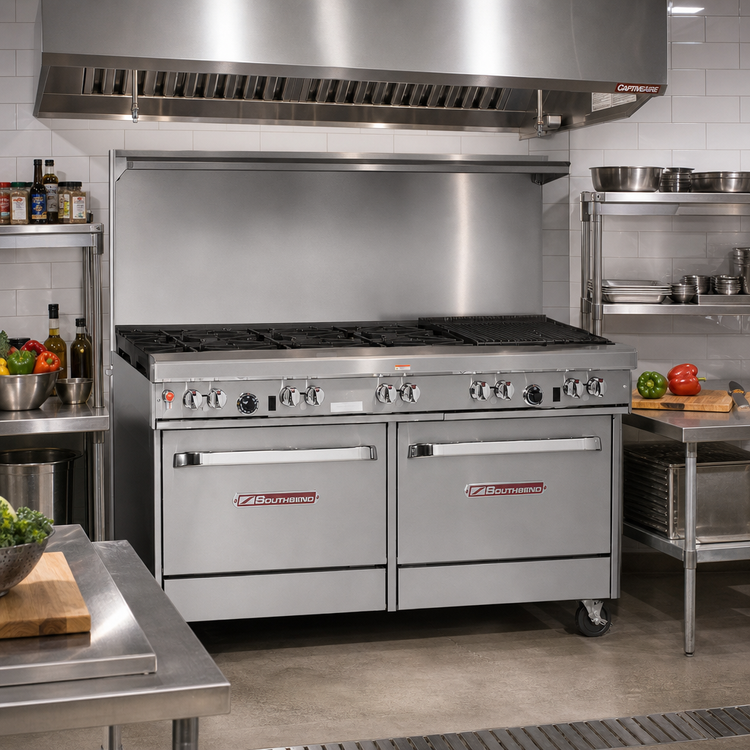

Southbend Ultimate 60" Restaurant Range
6 Star/Sauté Burners • 24" Right-Side Charbroiler • Double Convection OvensBuilt to keep up with the busiest commercial kitchens, the Southbend Ultimate series packs unmatched cooking versatility into a single 60-inch footprint. From rapid sautés and high-heat searing to evenly-baked pastries, this all-gas range does it all while giving you the rugged reliability operators have trusted for more than a century.
Why You’ll Love It
- Six 33,000 BTU star/sauté burners with clog-free cast-iron design for even flame distribution.

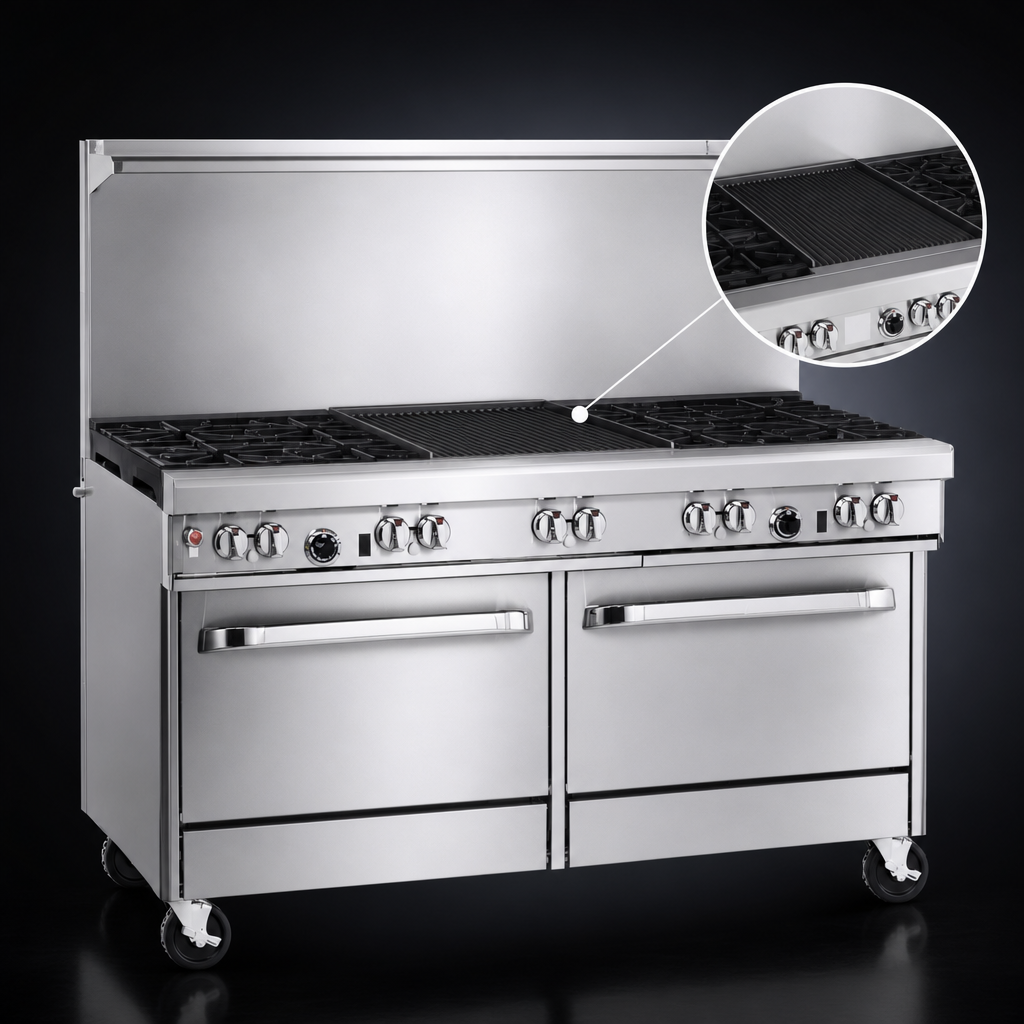

- 24" heavy-duty charbroiler (right) delivers 64,000 BTU of intense, steak-house heat.
- Twin convection ovens (32,000 BTU each) with battery spark ignition and 3 racks apiece for superior baking capacity.
- 326,000 BTU total output handles every cooking style on a single line.
- 27" deep cooking surface accepts stock pots up to 14" in diameter.
- 22½" flue riser with integrated high-strength storage shelf keeps plates, pans, and spices within reach.
- Front-mounted manual gas shut-off and factory-installed regulator for fast, code-compliant installation.
- All-stainless exterior, 4" front rail, & adjustable 6" legs for long-lasting good looks and easy cleaning.
- Certified to CSA & NSF standards; commercial-only warranty coverage.
Technical Specifications
| Overall width / depth / height | 60 3⁄4" W × 42 1⁄8" D × 59 1⁄2" H (to top of flue shelf) |
|---|---|
| Cooking surface height | 37" |
| Open burners | (6) Star/Sauté burners @ 33,000 BTU ea |
| Charbroiler | 24" right-side, cast-iron grates, 64,000 BTU |
| Ovens (2) | Convection, 32,000 BTU ea • 14"H × 26"W × 24"D cavity • (3) racks / 5 positions |
| Total gas input | 326,000 BTU/hr |
| Gas connection | 3⁄4" NPT, rear (factory regulator included) |
| Electrical (ovens) | 115 V, 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Construction | Stainless steel front, sides & shelf • Porcelain-enameled oven interior |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
What’s in the Box
- (4) removable cast-iron grate tops
- (6) individual drip trays under burners
- (6) adjustable stainless legs
- (6) oven racks (3 per cavity)
- Battery ignition pack for ovens
- Factory pressure regulator & operator’s manual
Need casters, rear step-up burners, or salamander mounts? Ask your rep about Southbend factory options to tailor the Ultimate range to your exact line-up.
