Southbend (Middleby) 4602DD-7R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4 Non-Clog Burners with Wavy Grates • 4 Pyromax Burners • Double Standard OvensPut eight high-performance burners and two full-size ovens into the footprint of a single range. The Southbend Ultimate Series delivers a combined 358,000 BTU of cooking power, rock-solid stainless-steel construction, and the industry’s only patented Pyromax burner system—built for serious, round-the-clock kitchens that demand reliability and speed.
Why You’ll Love It

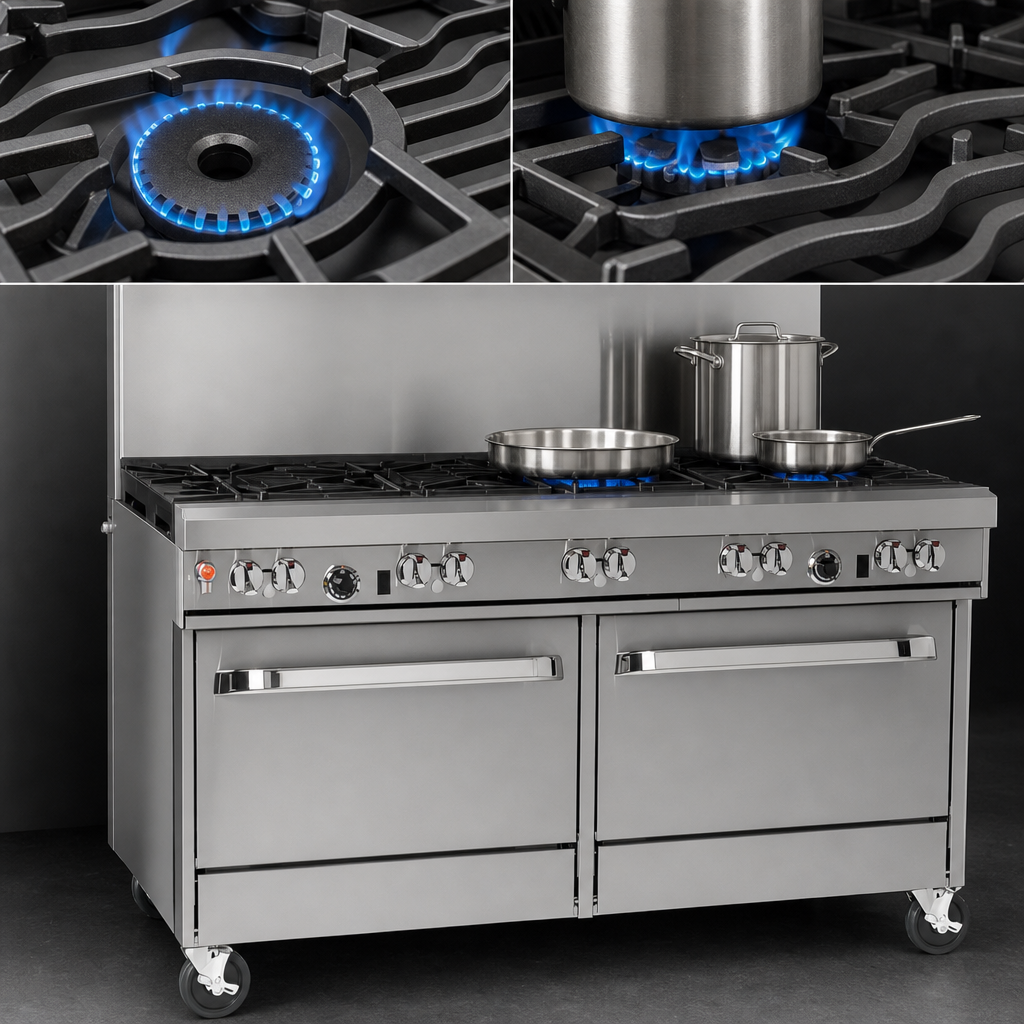

- 4 × 27,000 BTU non-clog burners with wavy cast-iron grates—slide stock pots effortlessly across the full 27"-deep surface.
- 4 × 40,000 BTU Pyromax burners (right-side) supply rapid heat for boiling, wok cooking and high-volume sauté work.
- Dual 45,000 BTU standard ovens (175-550 °F) with battery spark ignition—no electrical hook-up required.
- Porcelain-enamel oven interiors with coved corners fit 18" × 26" sheet pans both directions; (1) heavy-duty rack included per oven.
- 22-1/2" flue riser with integrated stainless utility shelf keeps spices, pans and utensils within arm’s reach.
- Front-mounted gas shut-off and full-width pull-out drip trays for safer, faster daily cleaning.
- Durable stainless-steel front, sides & 4" rail plus 6" adjustable legs—built to handle years of punishing commercial use.
- Factory-installed regulator, 3/4" rear gas connection, CSA & NSF certifications, and 1-year parts & labor warranty.
At-a-Glance Specs
| Model / Series | Ultimate 460DD (SKU 7706) |
|---|---|
| Cooktop Configuration | 4 non-clog burners w/ wavy grates + 4 Pyromax burners (right) |
| Total BTU Input | 358,000 BTU/hr (Natural Gas) |
| Oven Type & Output | 2 standard ovens — 45,000 BTU each |
| Oven Temp Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Oven Interior (WxDxH) | 26" × 26.5" × 14" (660 × 673 × 356 mm) |
| Overall Width | 60.75" (1543 mm) |
| Overall Depth | 34" (864 mm) |
| Cooktop Height | 37" (940 mm) |
| Overall Height w/ Riser | 59.5" (1511 mm) |
| Gas Connection | 3/4" NPT (rear), min. inlet 7" WC (NG) / 11" WC (LP) |
| Electrical | None required (battery spark ignition) |
| Crated Weight | Approx. 1,075 lb (488 kg) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor — see full policy |
• If installing on flooring other than quarry tile, cement or natural stone, consult Southbend for approved options.
• Oversized cookware (12"+ diameter) should be used on rear grates to avoid excessive heat on the front rail.
• Intended for commercial use only.
