Southbend (Middleby)  |  Ultimate  |  SKU: 4602DD-7L

Southbend (Middleby) 4602DD-7L Ultimate Gas Ranges

$11,593.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

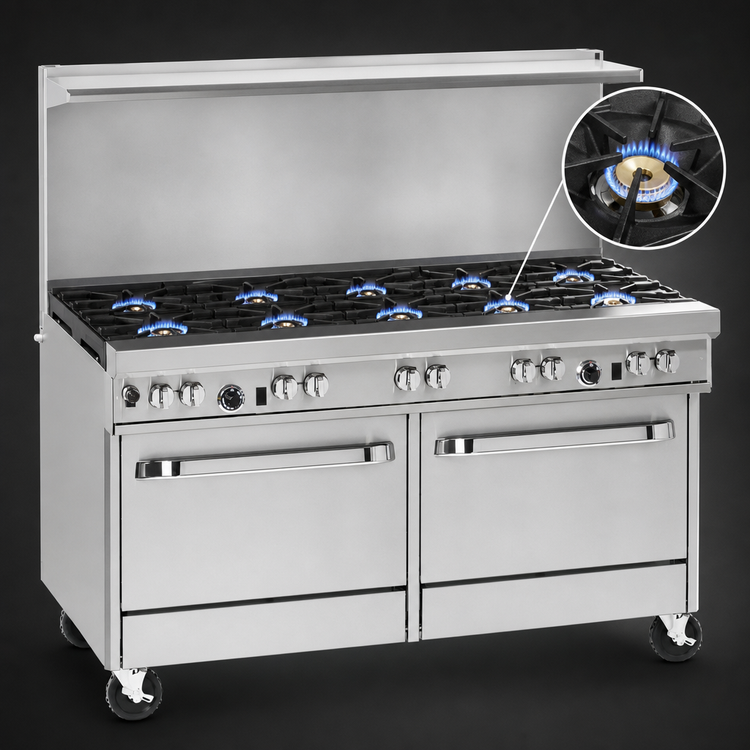

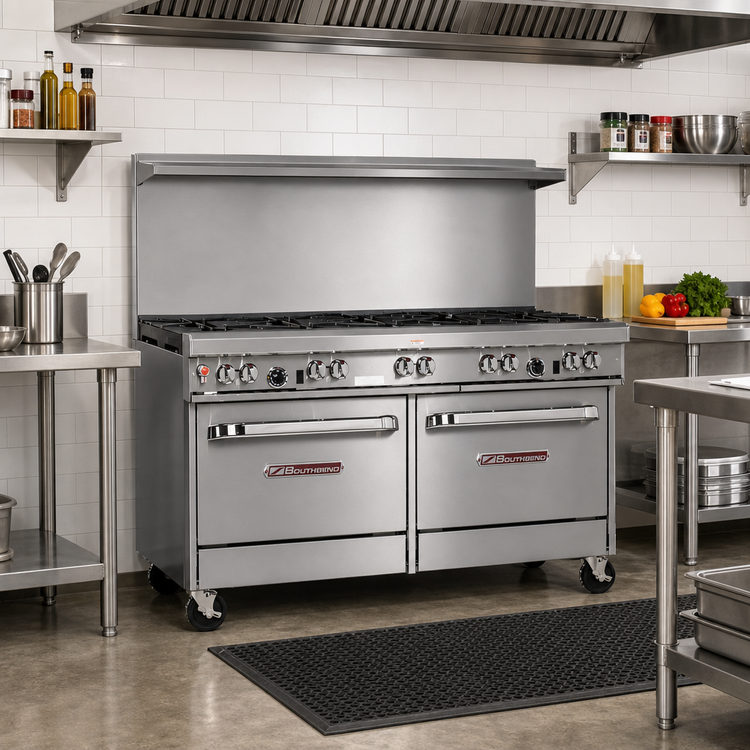

Southbend “Ultimate” 60" Gas Restaurant Range

4 Non-Clog Burners with Wavy Grates • 4 Pyromax Burners • Double Standard Ovens • 358,000 BTU

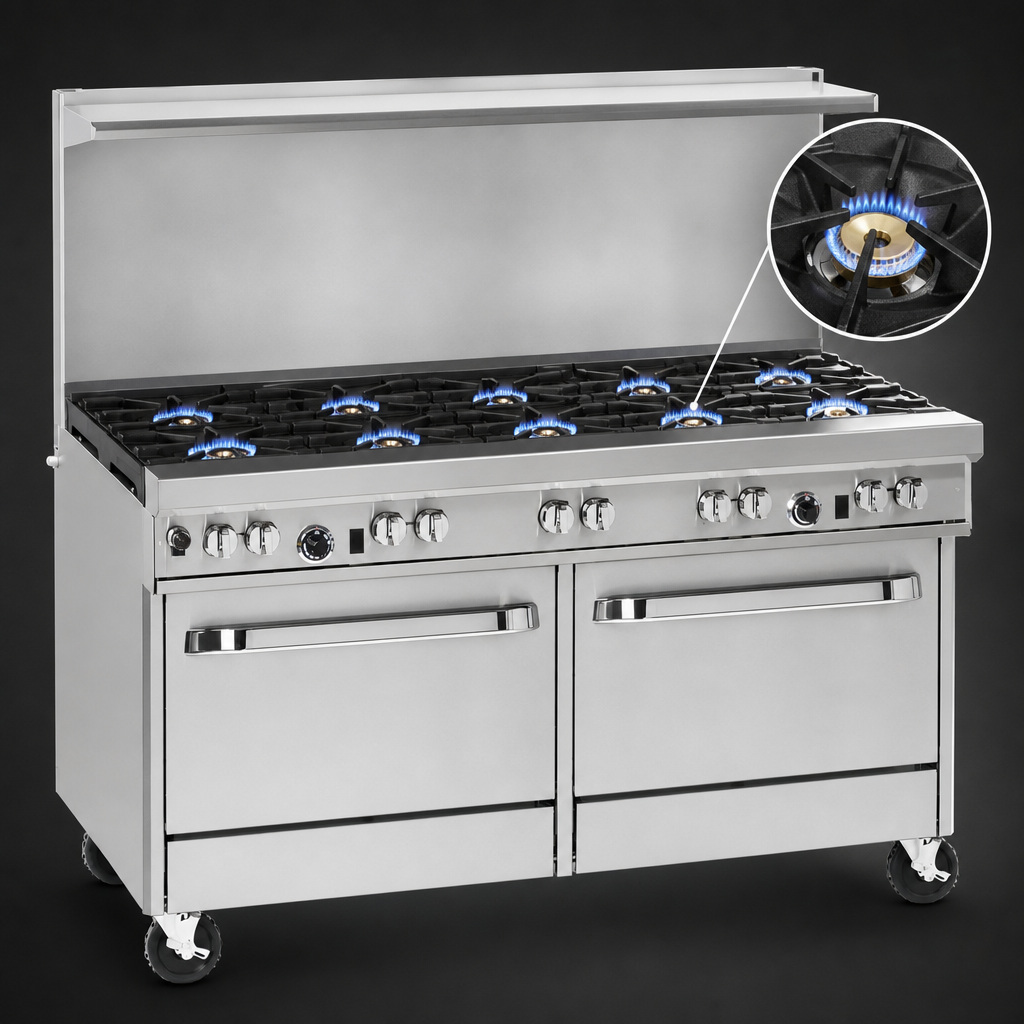

Built for kitchens that run hard from breakfast rush to last call, the Southbend Ultimate Series gives you uncompromising power, durability and flexibility in a single 60-inch footprint. Eight open burners, two full-size ovens and a heavy-duty riser shelf mean you can sauté, sear, simmer and bake — all at once, all day.

Key Advantages

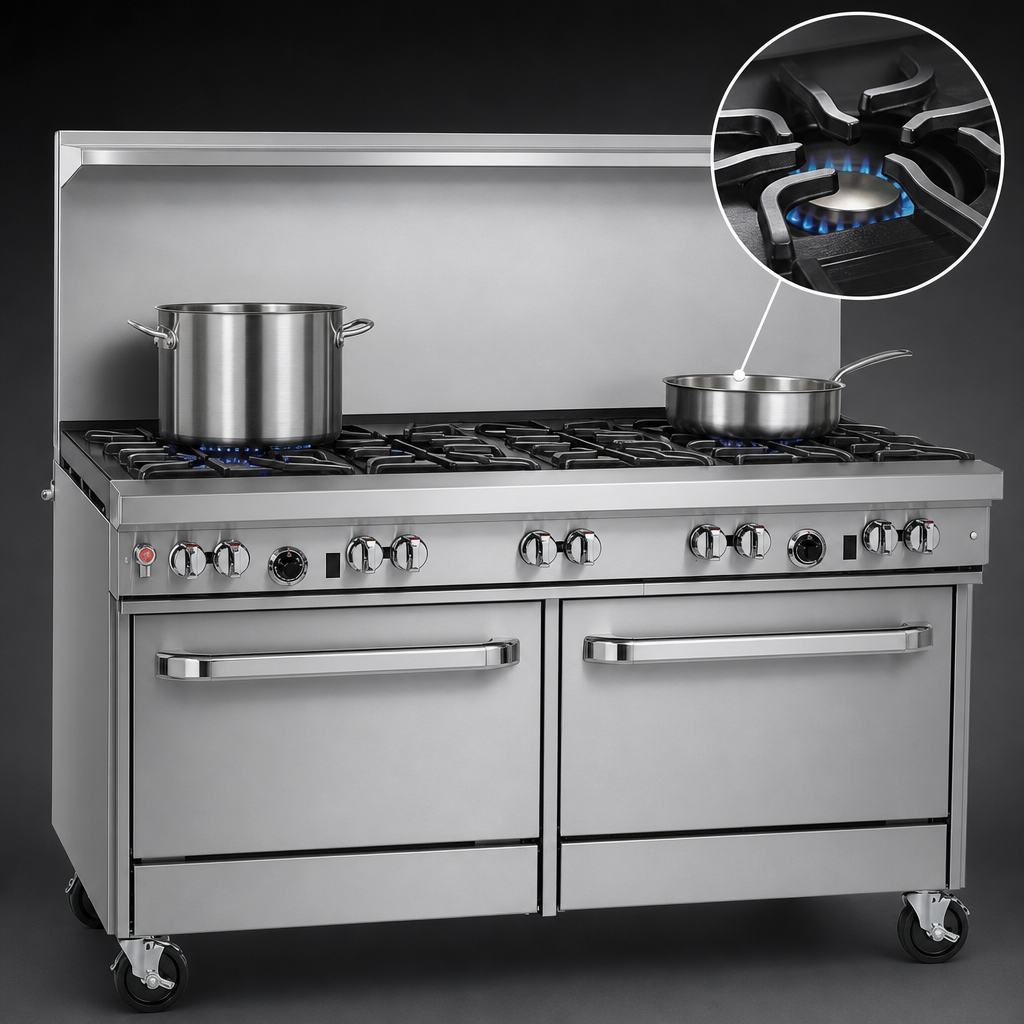

  • Balanced cooktop: (4) 27,000 BTU non-clog open burners with wavy cast-iron grates for better pan stability & even heat, plus (4) 40,000 BTU Pyromax burners on the left side for lightning-fast boils and wok-level searing.
  • Total output — 358,000 BTU: plenty of headroom for high-volume menus.
  • Two standard ovens: 45,000 BTU each, 175 – 550 °F thermostat, porcelain-enameled cavity (26" W × 26.5" D × 14" H) and one heavy chrome rack per oven.
  • Battery spark ignition: no electrical hookup needed for the ovens; open-tops use reliable standing pilots.
  • Chef-friendly details: 4" deep stainless front rail, front-mounted manual gas shut-off, 22.5" flue riser with integrated storage shelf.
  • Kitchen-tough construction: stainless steel front, sides and shelf, removable one-piece drip trays, 6" adjustable stainless legs.
  • Factory installed 3/4" regulator & single 3/4" rear gas connection for fast set-up.
  • Certified to CSA and NSF standards; backed by a 1-year parts & labor warranty.

Technical Specifications

Model Ultimate 60" Range – 4 Non-Clog + 4 Pyromax Burners / Double Standard Ovens (460DD configuration)
Total BTU 358,000 BTU (Natural Gas)
Open Burners (4) 27,000 BTU non-clog w/ wavy grates  |  (4) 40,000 BTU Pyromax high-output
Ovens (2) Standard ovens, 45,000 BTU each, battery spark ignition, 175 – 550 °F thermostat, includes 1 rack per cavity
Cooktop Height 37"
Overall Dimensions 60.75" W × 34" D × 59.5" H (to top of 22.5" riser shelf)
Cooking Surface 27" deep; rear grates accept up to 14" stock pots
Gas Connection Single 3/4" NPT female (rear), minimum 7" W.C. inlet pressure
Shipping Weight Approx. 1,075 lb
Certifications CSA, NSF
Warranty 1-Year limited parts & labor (see Southbend terms)

Helpful Notes

  • Unit ships for use with Natural Gas; field-conversion kits available for LP (sold separately).
  • Requires installation under an adequate ventilation hood per local code.
  • For optimum performance, place oversized (12"+) cookware on rear grates.
  • Casters, salamander mounts and other accessories are available on request.
Warranty Reminder: professional installation by a Southbend-authorized service agency is required for full coverage.

Ask about flexible equipment-financing options to keep cash flow cooking.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Base

(2) standard ovens

Exterior Finish

stainless steel front & sides

Top

(8) open burners

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (4) pyromax burners left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 358,000 BTU, CSA, NSF
