Southbend (Middleby)  |  Ultimate  |  SKU: 4602DD-6R

Southbend (Middleby) 4602DD-6R Ultimate Gas Ranges

$11,593.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range

Star/Sauté + Pyromax + Non-Clog Burners • Dual Standard Ovens • 377,000 BTU

Give your kitchen the flexibility of three ranges in one. This 60 inch Southbend Ultimate combines ultra-high-output Star/Sauté and Pyromax burners with clog-free non-clog burners beneath full-coverage wavy grates—plus two full-size ovens— so you can sauté, sear, simmer, boil and bake all at the same time, on one rock-solid platform built to thrive on the rush.

Why You’ll Love It

  • Mixed power top: 3 × 33,000 BTU Star/Sauté burners (front right) for rapid, even heat.
  • 2 × 40,000 BTU Pyromax burners (rear right) – perfect for stock pots & wok work.
  • 4 × 27,000 BTU lifetime-clog-free burners (left) under full-width wavy cast-iron grates.

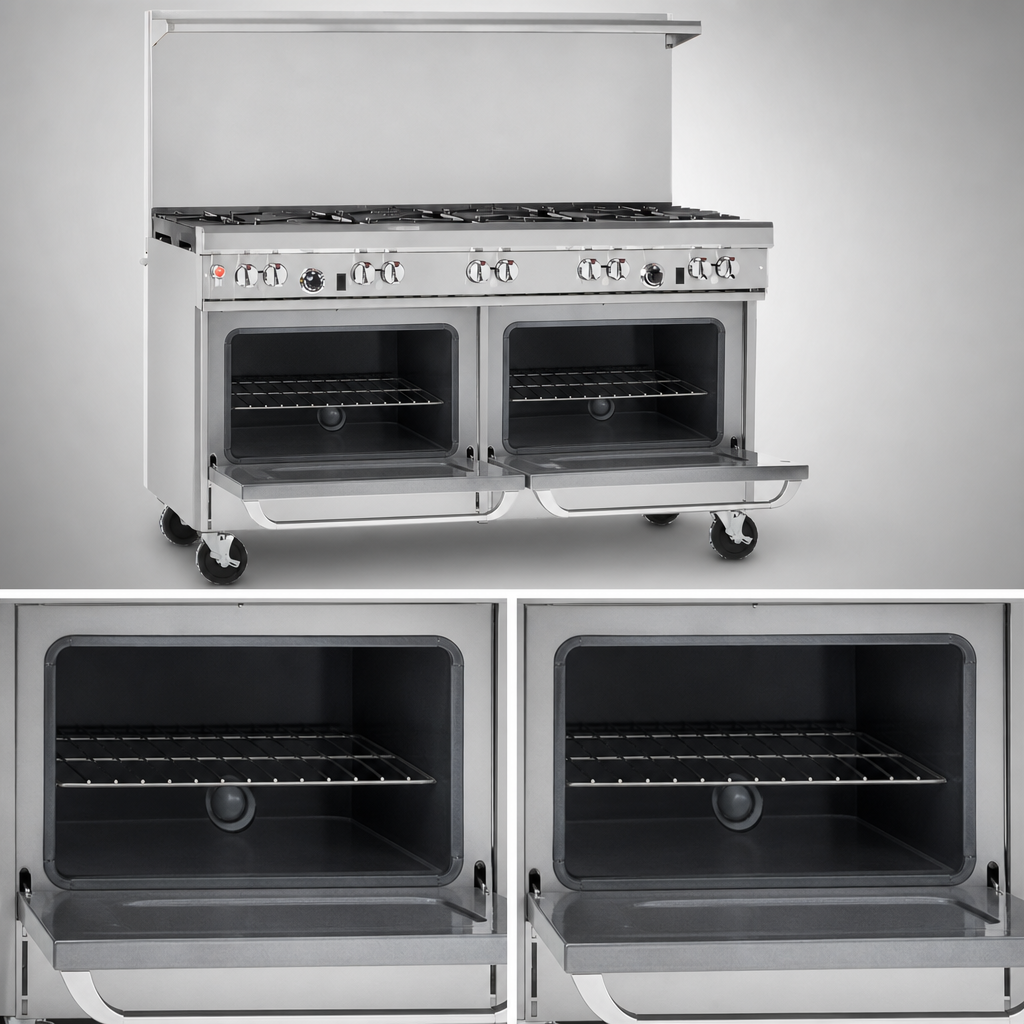

  • Dual 45,000 BTU standard ovens with battery-spark ignition & porcelain interiors; each ships with 1 rack (2-position).
  • 22-1/2" flue riser with heavy-duty shelf keeps cookware and seasoning close at hand.
  • One-piece stainless front rail & chassis sides; 6" adjustable stainless legs for easy leveling.
  • Front-mounted manual gas shut-off and factory-installed regulator simplify installation & servicing.
  • Total fire power: 377,000 BTU/hr (Natural Gas) to crush every service.
  • Certified CSA & NSF; backed by a 1-year parts & labor warranty.

At-a-Glance Specs

Overall width 60-3/4" / 1543 mm
Overall depth 34" / 864 mm
Cooking height 37" / 940 mm
Cooking surface 27" deep, full wavy cast-iron grates
Burner layout 3 Star/Sauté (33 k), 2 Pyromax (40 k), 4 Non-Clog (27 k)
Ovens (2) Standard, 45 k BTU each, 14"H × 26"W × 26.5"D cavity
Total input 377,000 BTU/hr
Gas connection 3/4" NPT, 7" W.C. NG (11" W.C. LP)
Ignition Standing pilot (top) • Battery spark (ovens)
Material Stainless front, sides, shelf & riser
Certifications CSA, NSF
Shipping weight Approx. 1,075 lb / 488 kg
Warranty 1-year parts & labor (commercial use)
Commercial use only. Maintain 10" side/rear clearance from combustibles (0" to non-combustibles). For best performance, limit oversized cookware (>12" dia.) to rear burners and install under a properly sized vent hood.

Need financing? Middleby Equipment Financing can turn this range into predictable monthly payments—ask your RestaurantSupply.com rep for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Top

(9) open burners

Base

(2) standard ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front right, (2) pyromax burners rear right, (4) non-clog burners left, wavy grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 377,000 BTU, CSA, NSF
