Southbend (Middleby) 4602DD-6L Ultimate Gas Ranges

Southbend Ultimate 60" Gas Restaurant Range

Give your line cooks the versatility they need and the durability you expect. This 60 inch Southbend Ultimate range combines three distinct burner styles, wavy cast-iron grates, and two full-size ovens – all wrapped in heavy-gauge stainless steel – to keep production high during even the busiest rush.

Key Performance Features

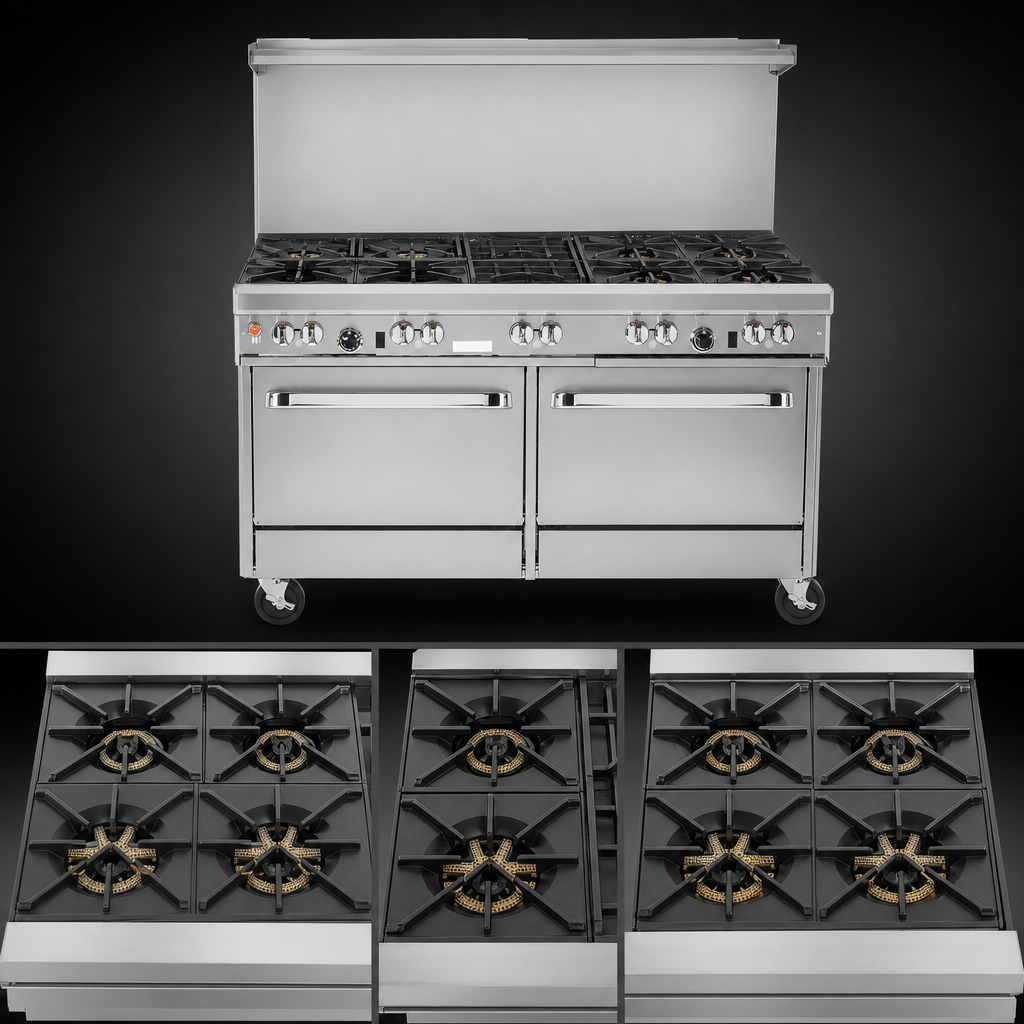

• Eight open burners, purpose-built for every task:
  • 3 × 33,000 BTU star/saute burners (front left) for fast, even pan work
  • 2 × 40,000 BTU Pyromax burners (rear left) for stock pots & rapid boils
  • 4 × 27,000 BTU lifetime non-clog burners (right) with wavy grates for a seamless cook surface

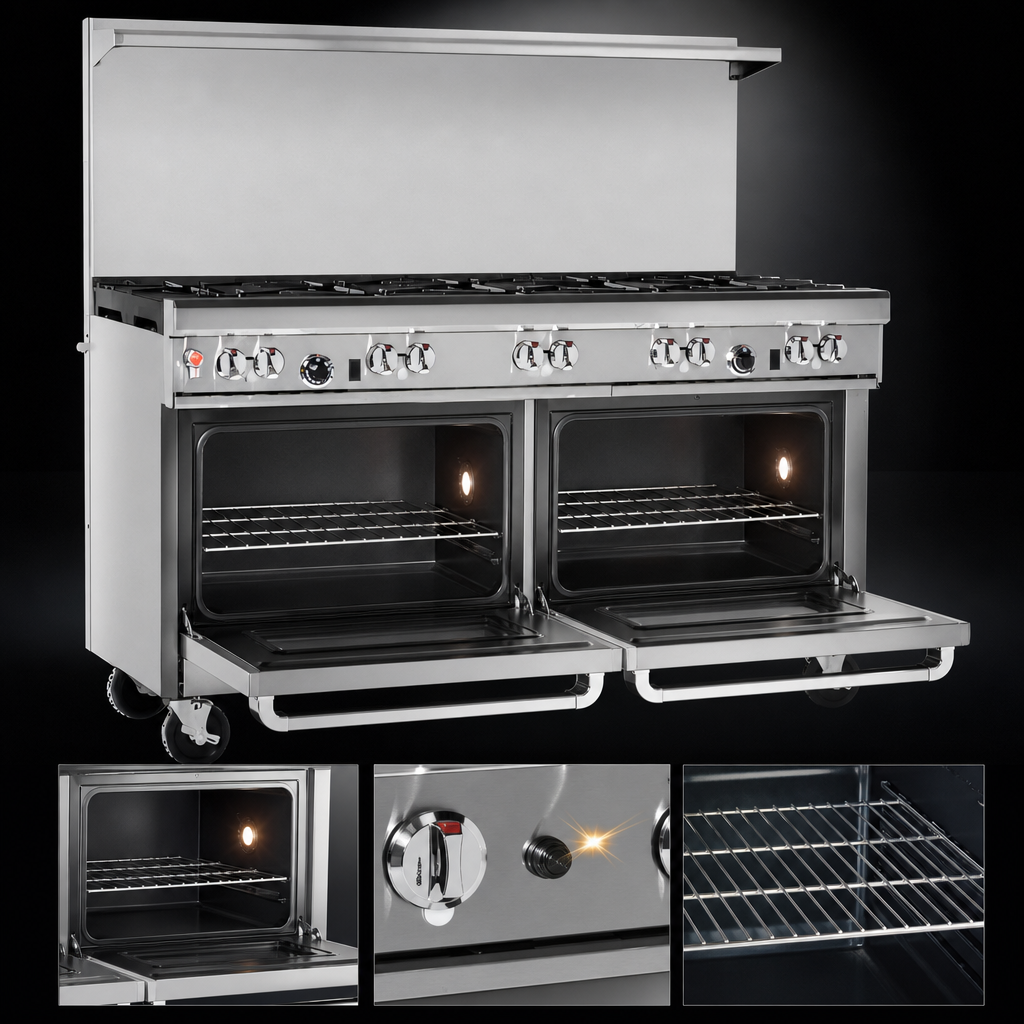

• Two 45,000 BTU standard ovens with battery-spark ignition and spring-assisted doors
• Porcelain-enamel oven cavities fit 18" × 26" sheet pans front-to-back or side-to-side; one rack included per oven
• 22 1/2" flue riser with heavy-duty stainless shelf keeps hot pans and seasonings within reach
• Front-mounted master gas shut-off and factory-installed pressure regulator for safer operation
• 4" stainless front rail, removable drip trays, and standing pilots for all open burners
• 6" adjustable stainless legs for easy leveling and cleaning underneath
• CSA & NSF certified; backed by Southbend’s 1-year parts & labor warranty

At-a-Glance Specifications

Why Chefs Choose the Ultimate Series

• Mix-and-match burner technologies let you sear, simmer, sauté and boil on one surface
• Wavy grates create a continuous deck—slide heavy stock pots or pans anywhere without tipping
• One-piece, lifetime non-clog burners minimize downtime from plugged ports
• Battery-spark ovens cut pilot gas consumption while ensuring reliable starts
• Smooth, coved-corner ovens speed nightly clean-up and improve airflow

Need flexible payment options? Middleby Equipment Financing offers fast credit decisions and affordable monthly plans.
