Southbend (Middleby) 4602DD-4TR Ultimate Gas Ranges
Description

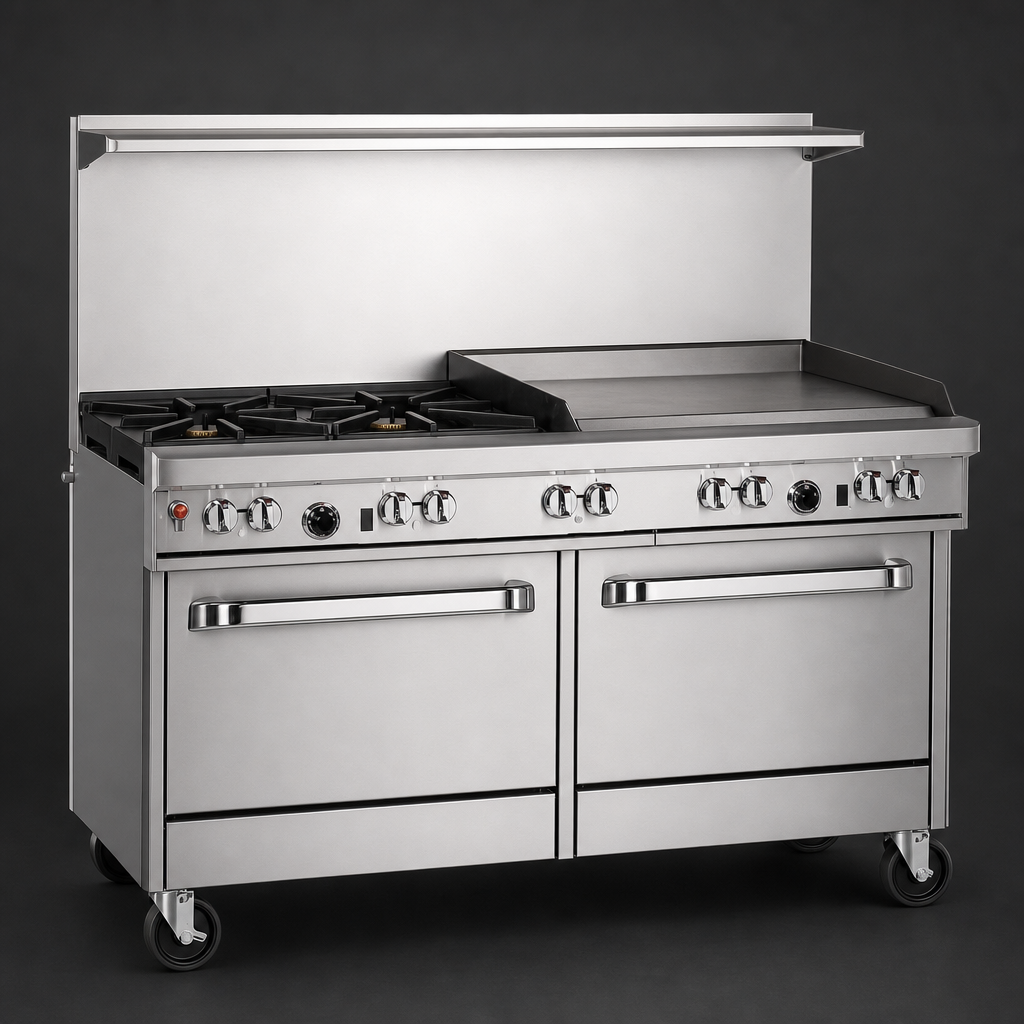

Southbend Ultimate 60" Restaurant Range – 2 Burners & 48" Thermostatic Griddle, Double Standard Ovens
Model family 460 Series | Natural Gas | 224,000 BTU totalBuilt for the busiest kitchens, Southbend’s Ultimate Series combines rugged construction with chef-friendly performance. This 60-inch configuration delivers rapid open-top heat, an expansive 48-inch steel griddle, and two full-size standard ovens— all wrapped in easy-clean stainless steel.
Why you’ll love it

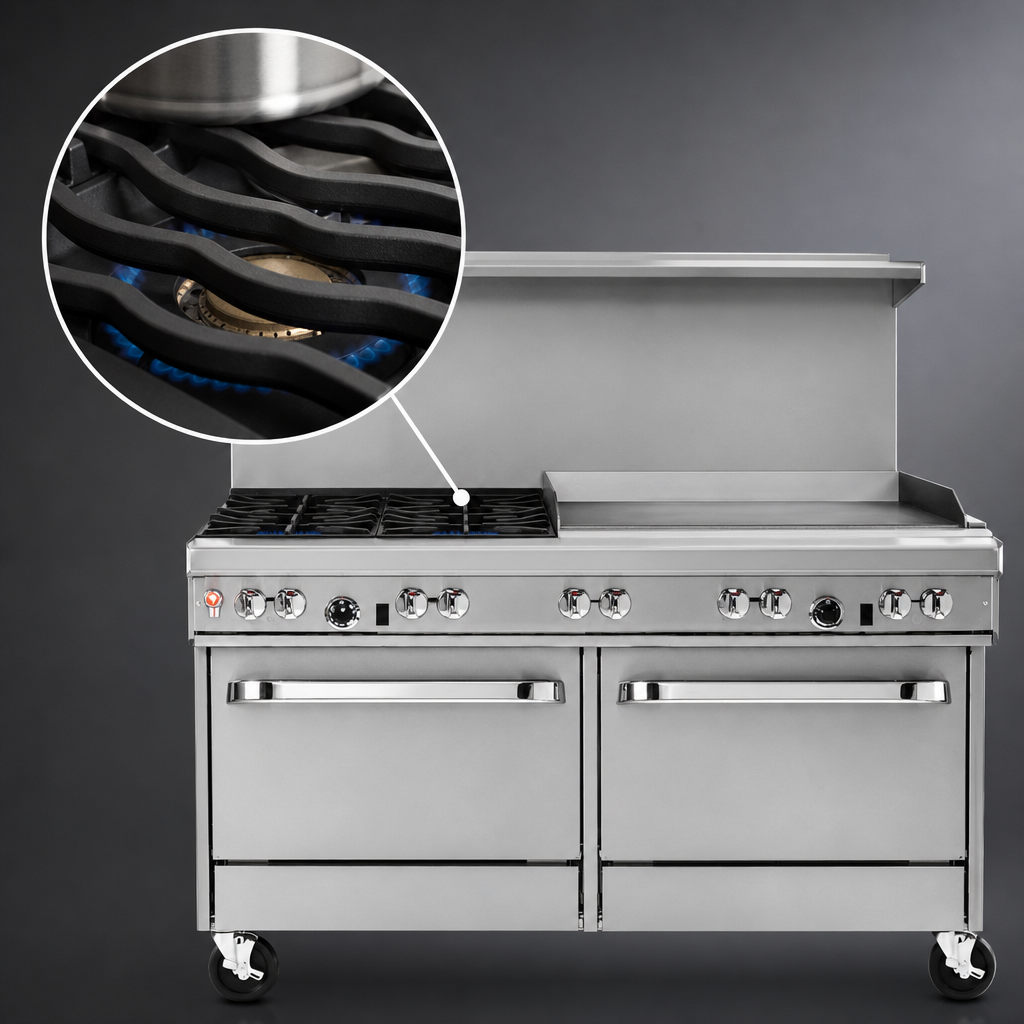

- Two 27 kBTU non-clog burners with lifetime-cast tops and wavy grates for efficient flame contact and the freedom to slide heavy pots across the deck.
- 48-inch thermostatic griddle (1 in. plate) holds set temperatures across the entire surface—perfect for breakfast rushes, searing proteins, and high-volume prep.
- Dual 45 kBTU standard ovens (battery-spark ignition) accept full-size sheet pans in either direction; each cavity ships with one adjustable rack.
- One-touch control & safety – front-mounted manual shut-off for the entire range plus standing pilots on the open burners.
- All-stainless exterior (front, sides, 4-in. front rail, & 22.5-in. flue riser shelf) stands up to corrosive kitchen environments and wipes down fast.
- Factory-installed ¾-in. gas regulator keeps installation simple; 6-in. adjustable stainless legs are standard.
- Certified to CSA Flame, Star & cCSAus; NSF listed for food-service sanitation.
Performance at a glance
| Overall width | 60 ¾ in. (1543 mm) |
|---|---|
| Cook-top layout | 2 open burners (left) + 48 in. griddle (right) |
| Open-top output | 27,000 BTU each (54,000 BTU total) |
| Griddle plate | 1 in. polished steel, thermostatic control, 80,000 BTU |
| Ovens (qty 2) | Standard – 14 H × 26 W × 26.5 D in., 45,000 BTU each, 175 – 550 °F thermostat, battery spark ignition |
| Total input | 224,000 BTU/h (natural gas) |
| Gas connection | ¾ in. NPT female, min. 7 in. W.C. inlet pressure |
| Utilities | No electric connection required (all-gas configuration) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see below) |
What’s in the box
- (1) 60-in. Ultimate Restaurant Range as specified
- (2) Removable cast-iron grate tops & drip trays
- (2) Oven racks (one per oven)
- Factory-installed regulator & 22.5-in. flue riser shelf
- 6-in. adjustable stainless steel legs
- Owner’s manual & warranty documentation
Southbend limited warranty
One (1) year parts & labor from the date of installation when serviced by an authorized Southbend agency. Oversized cookware should be used on the rear burners only, and the range must be installed on quarry tile, concrete, or natural stone flooring for full coverage.
