Southbend (Middleby) 4602DD-4GR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range with 48" Right-Side Griddle & (2) Burners
Model 460DD | 224,000 BTU | Natural GasBuilt for demanding kitchens, the Ultimate Series packs rugged construction, precision heat control and a massive 48-inch griddle into a single 60-inch footprint. With two lifetime non-clog burners up top and twin standard ovens below, this range becomes the workhorse of any cookline.
Key Performance Features

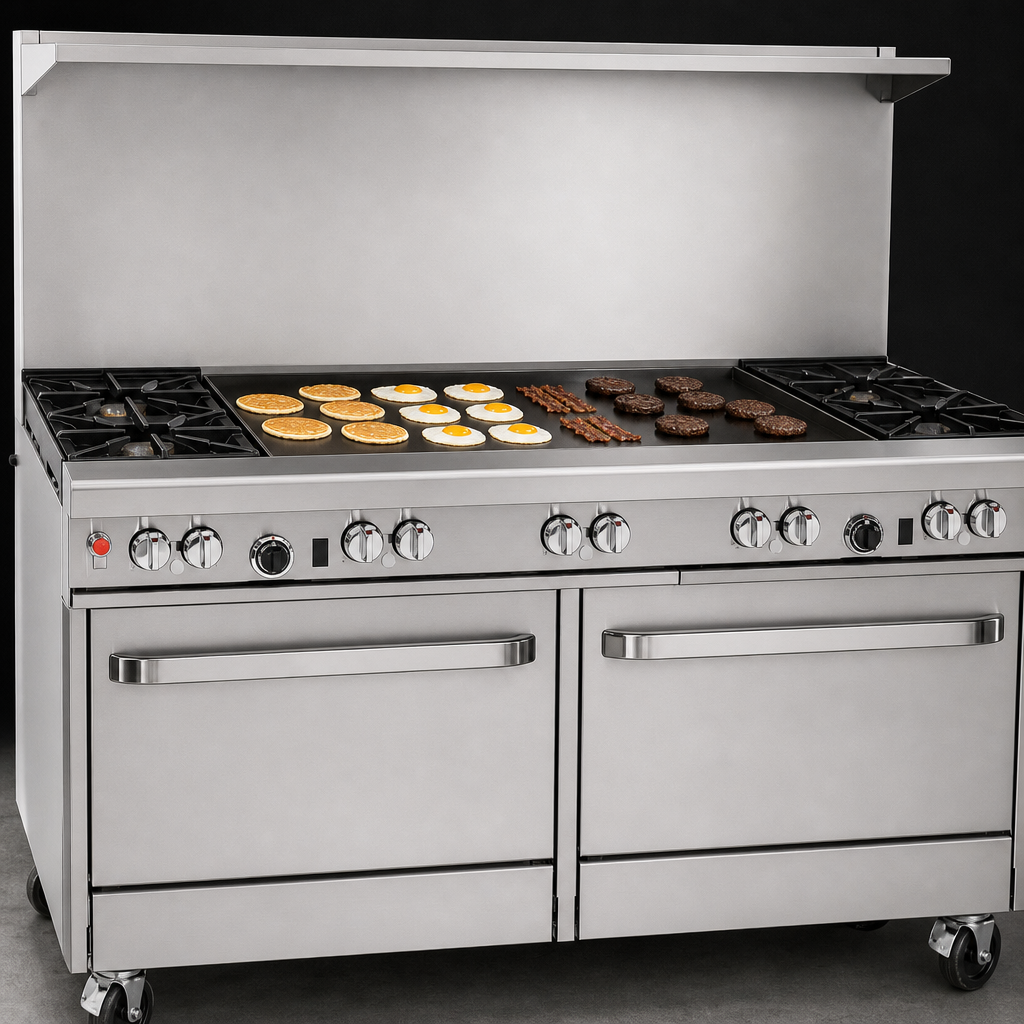

- 48" polished steel griddle (1" thick) with raised sides for even heat & superior searing.

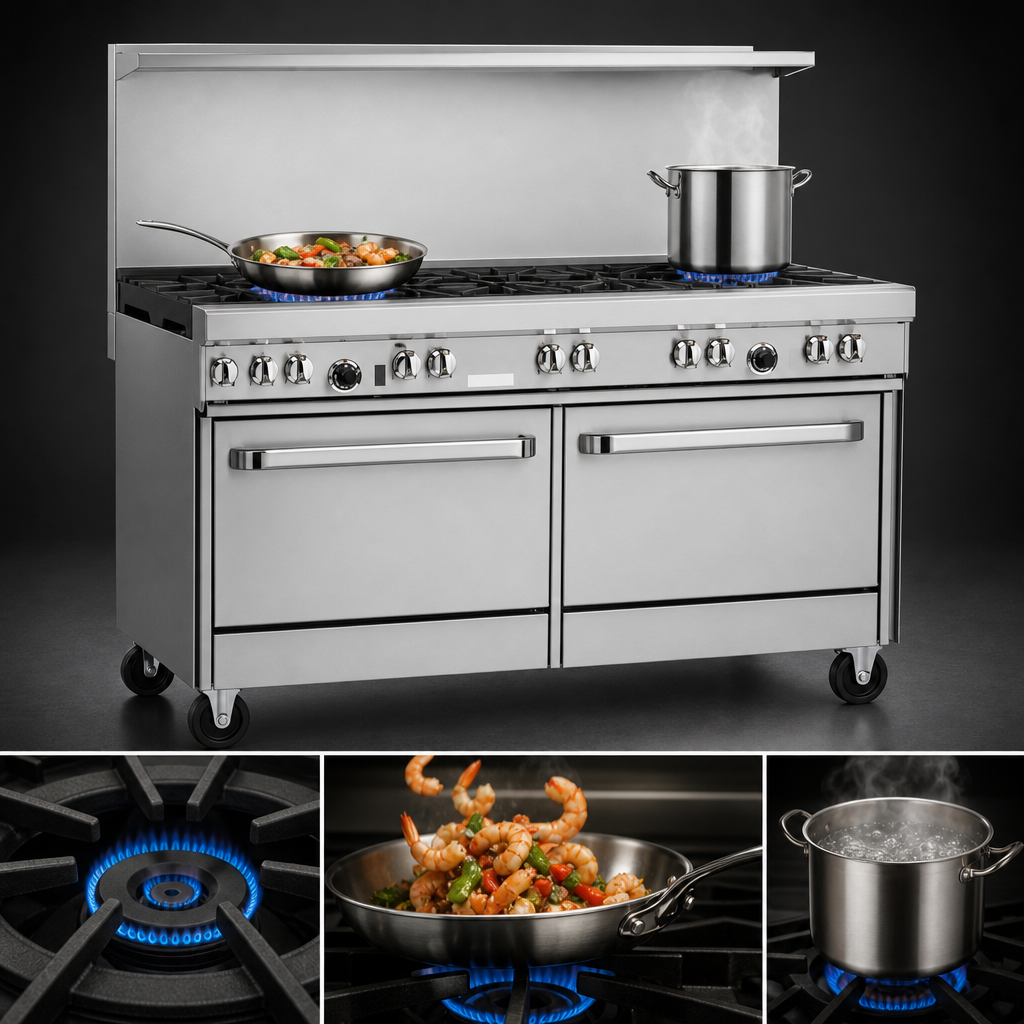

- (2) 27,000 BTU non-clog burners featuring cast-iron wavy grates for full-surface pot support.
- Total 224,000 BTU output keeps pace with the heaviest rush.
- Dual standard ovens (45,000 BTU each) with battery-spark ignition and 175 °F–550 °F thermostat.
- Porcelain-enameled oven cavities—wipe clean in seconds; each ships with an adjustable rack.
- 22-1/2" flue riser and integrated shelf for plate warming and utensil storage.
- All-stainless front, sides, high-strength shelf and 6" adjustable legs for years of corrosion-proof service.
- Front-mounted manual gas shut-off and factory regulator speed installation & service.
- cCSAus, CSA Flame, CSA Star & NSF certified for worry-free code compliance.
Technical Specifications
| Overall width | 60-3/4" |
|---|---|
| Cooking surface depth | 27" |
| Griddle size / plate | 48" W × 24" D • 1" polished steel (right) |
| Open burners | (2) 27,000 BTU non-clog, standing pilot |
| Total BTU | 224,000 BTU/hr |
| Ovens | (2) Standard • 45,000 BTU each • 175 °F–550 °F |
| Oven interior | 14" H × 26" W × 26-1/2" D porcelain enamel |
| Racks included | 1 per oven (2 total) |
| Gas connection | 3/4" NPT female (left side) |
| Min. inlet pressure | 7" W.C. Natural Gas |
| Cooking height | 37" |
| Certifications | NSF • cCSAus • CSA Flame • CSA Star |
| Warranty | 1-year limited parts & labor |
Perfect For
- High-volume restaurants and diners
- Hotel banquet or room-service kitchens
- Catering commissaries & ghost kitchens
- Institutional foodservice operations
Need a different burner or griddle layout? Chat with us—any Ultimate Range configuration can be quoted in minutes.
