Southbend (Middleby) 4602DD-3TR Ultimate Gas Ranges
$14,979.00
Unit price
/
Unavailable
Description

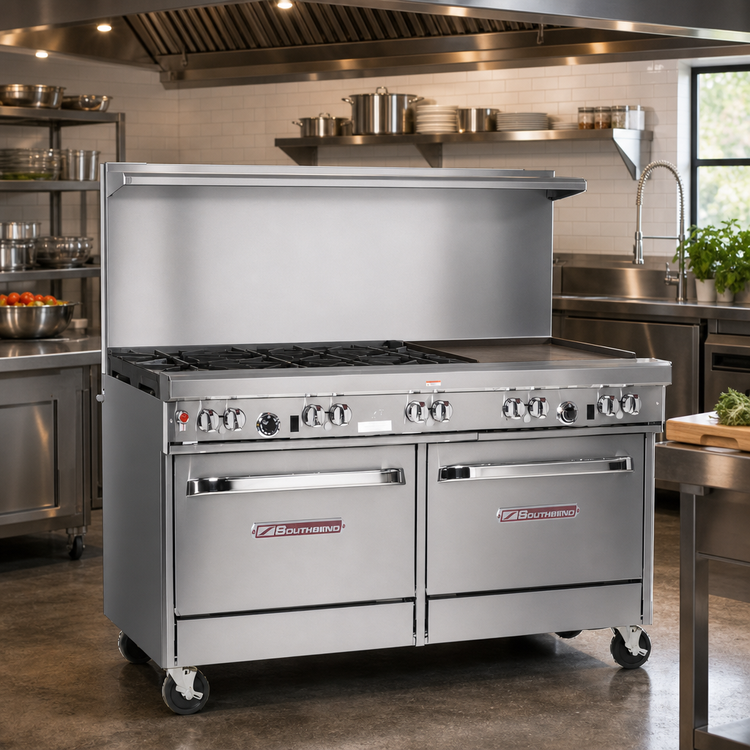

Southbend “Ultimate” 60" Gas Restaurant Range
4 Open Burners · 36" Right-Side Thermostatic Griddle · Dual Standard Ovens · 262,000 BTUBuild an entire cookline in the footprint of a single range. Southbend’s Ultimate series packs industry-leading power, rock-solid construction and chef-friendly ergonomics into one 60" platform that keeps the line moving during every rush.
Why It Belongs in Your Kitchen
- One platform, multiple techniques – sauté, sear, pan-roast, grill and griddle on the same appliance.
- Four 27 K BTU non-clog burners with wavy cast-iron grates move oversized stockpots with ease and stay clog-free for life.

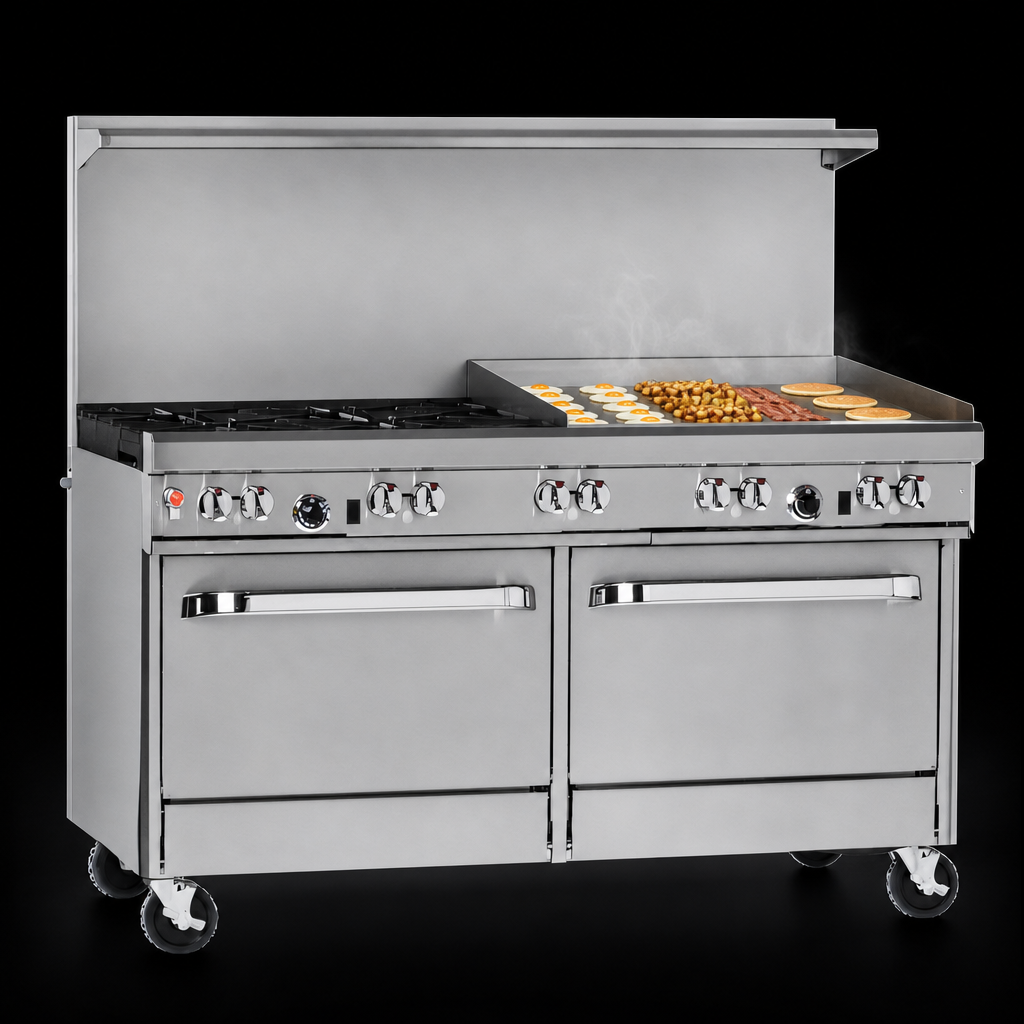

- 36" thermostatic griddle (right) – ½" polished steel plate delivers even heat for breakfast, burgers and more while allowing independent temperature control.
- Two full-size standard ovens (45 K BTU each) accept sheet pans either way and feature battery-spark ignition—no cord required.
- Built to last – stainless steel front, sides, shelf and 6" adjustable legs stand up to daily commercial abuse.
- Convenient 22 ½" flue riser shelf keeps plates, spices or smallwares right where you need them.
- Front-mounted gas shut-off + factory regulator simplify installation and service.
At-a-Glance Specifications
| Model | Ultimate 60" Range (Southbend 460 Series) |
|---|---|
| Overall width × depth × height | 60 ¾" W × 34" D × 37" cook-top height (22 ½" flue riser adds overall height) |
| Open burners | (4) 27 K BTU non-clog cast-iron burners with wavy grates |
| Griddle | 36" right-side, ½" smooth steel plate, thermostatic controls |
| Ovens | (2) Standard ovens, 45 K BTU each, 175 °F – 550 °F thermostat, battery-spark ignition, (1) rack included per oven |
| Total gas input | 262,000 BTU/hr (Natural or LP – specify at order) |
| Gas connection | ¾" NPT rear (factory regulator supplied) |
| Electrical | None required (battery spark) |
| Certification | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
What’s Included
- (1) Chrome oven rack per cavity
- 22 ½" flue riser shelf
- Factory-installed pressure regulator & front master gas shut-off
- Stainless steel 6" adjustable legs
Popular Add-Ons (sold separately)
- Swivel locking casters
- Additional oven racks
- Rear step-up burners or 5"/10" flue risers
- Quick-disconnect hose kits that comply with ANSI Z 21.69
Important: This unit is intended for commercial installations under a properly vented hood.
For floors other than quarry tile, consult the factory installation guidelines.
To avoid heat damage, keep oversized cookware (12"+ diameter) on the rear burners only.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Control Type
thermostatic controls
Base
(2) standard ovens
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Plate Thickness
.500" = 1/2"
Top
(4) open burners, (1) 36" griddle with thermostat
Specifications
Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (1) 36" griddle right, thermostatic controls, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 262,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
