Southbend (Middleby)  |  Ultimate  |  SKU: 4602DD-3GR

Southbend (Middleby) 4602DD-3GR Ultimate Gas Ranges

$14,126.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Gas Restaurant Range — 4 Burners, 36" Right-Side Griddle, Double Standard Ovens

262,000 BTU · Natural or LP · Model 460 Series

Conquer the busiest rush with a single piece of equipment that sautés, sears, grills and bakes all at once. Southbend’s Ultimate 60" range pairs four lifetime non-clog burners with a full-width 36" griddle and two full-size ovens—all wrapped in heavy-gauge stainless steel built to thrive on the toughest cooklines.

Why You’ll Love It

  • Four 27,000 BTU non-clog burners with wavy cast-iron grates keep ports clear and accept stock pots up to 14".

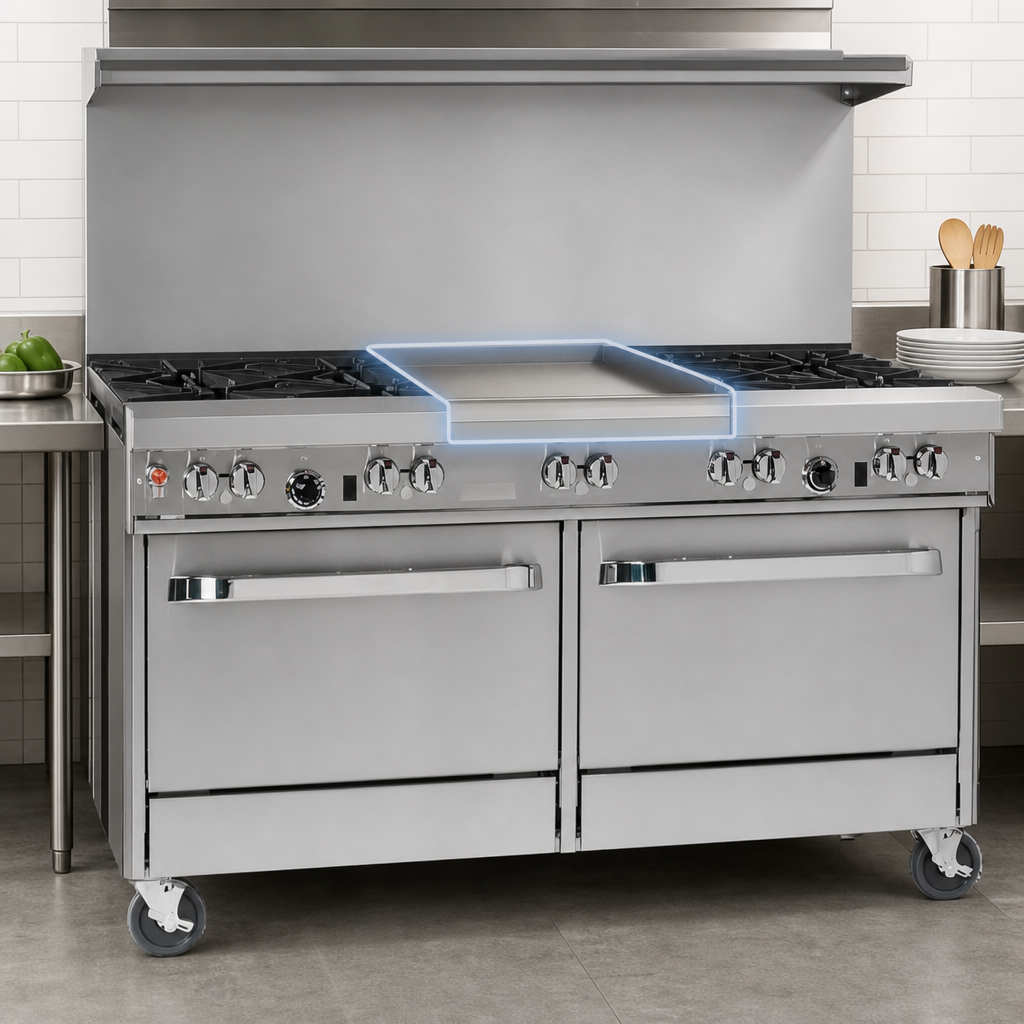

  • 36" right-mounted griddle features a ½" polished steel plate for fast recovery and perfect pancakes, burgers or quesadillas.
  • (2) 45,000 BTU standard ovens each include a rack (2-position) and battery-spark ignition—no electrical hook-up required.
  • Front-mounted manual gas shut-off and factory pressure regulator speed up service calls and enhance safety.
  • 22½" flue riser with integrated stainless shelf keeps plates, spices and smallwares within easy reach.
  • All-stainless front, sides, shelf and 6" adjustable legs resist corrosion and wipe clean in seconds.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.
  • Backed by a full 1-year parts & labor warranty from Southbend.

Specifications

Width × Depth × Height 60 ¾" W × 34" D × 37" H (to cook surface)
Open burners 4 × 27,000 BTU non-clog (standing pilot)
Griddle 36" W × 27" D, 64,000 BTU, ½" polished steel
Ovens 2 × 45,000 BTU standard ovens, 14" H × 26" W × 26 ½" D cavity
Total input 262,000 BTU/hr
Gas connection ¾" NPT (rear), 7" W.C. NG  / 11" W.C. LP
Ignition Standing pilot (top) / battery-spark (ovens)
Construction Stainless steel front, sides, shelf & 6" legs; cast-iron grates
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1 year parts & labor

Ideal Applications

  • High-volume diners, cafeterias and catering kitchens
  • Scratch kitchens needing sauté, griddle and bake capability in one footprint
  • Food trucks or ghost kitchens where every inch of cookline counts
Installation note: Install under a properly ventilated hood on 6" legs or casters. For non-quarry-tile floors, consult Southbend for approved mounting solutions.

Want easy budgeting? Ask about Middleby Equipment Financing to turn this purchase into affordable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle

Plate Thickness

.500" = 1/2"

Base

(2) standard ovens

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (1) 36" griddle right, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 262,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
