Southbend (Middleby) 4602DD-2TR Ultimate Gas Ranges
$14,126.00
Unit price
/
Unavailable
Description
Southbend Ultimate 60" Gas Restaurant Range – 6 Burners, 24" Thermostatic Griddle & Double Standard Ovens
Model 460 Series DD | 300,000 BTU Total OutputBuilt for the busiest commercial kitchens, the Southbend Ultimate Range combines high-powered open burners, a precise thermostatic griddle, and two full-size ovens in one rugged 60-inch footprint.
Key Features
- Six 27,000 BTU non-clog cast-iron burners—lifetime clog-free design.
- Wavy cast-iron grates let you slide heavy stockpots across the entire cooking surface without lifting.

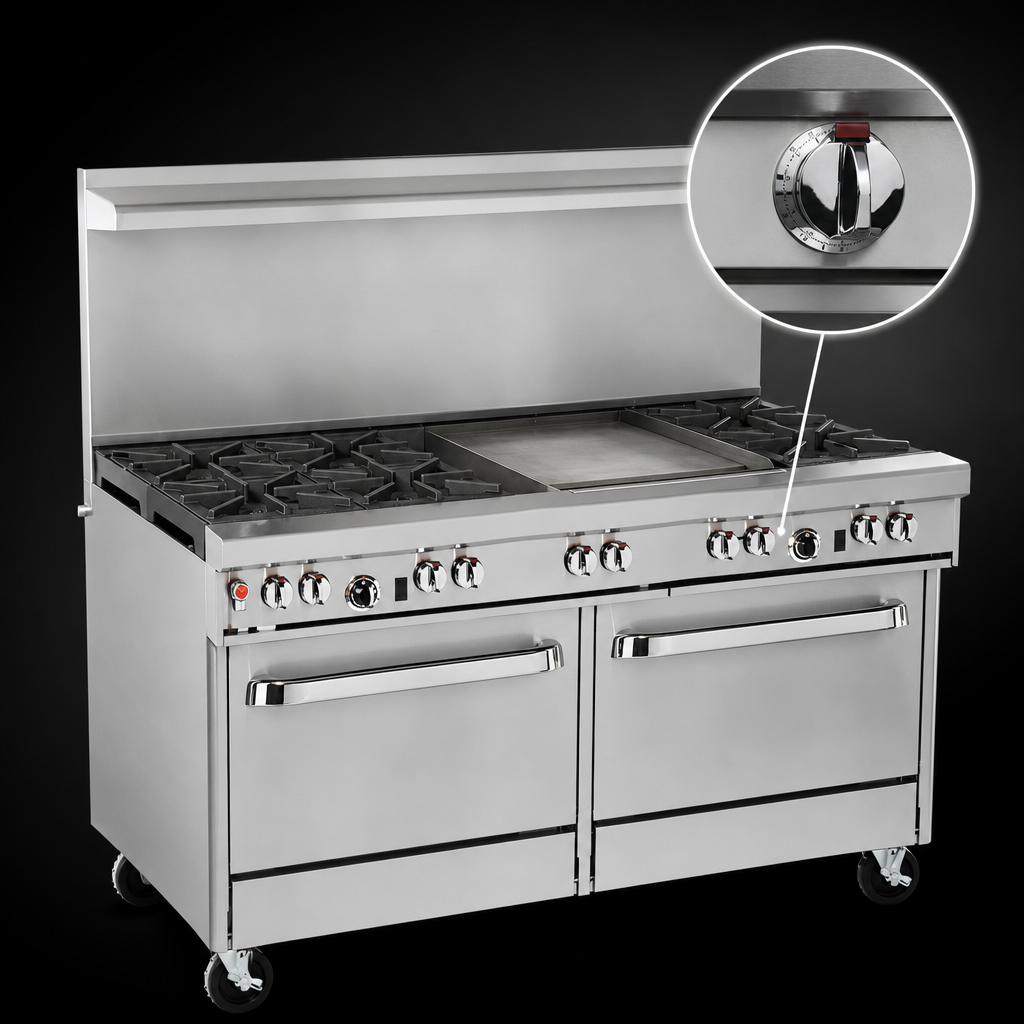

- Right-side 24" griddle with ½" polished steel plate and thermostatic controls for repeatable results.
- Two 45,000 BTU standard ovens (175 °F–550 °F) with battery-spark ignition; each supplied with one rack.
- 22.5" flue riser with integrated stainless shelf keeps plates, spices or utensils warm and within reach.
- All-stainless front, sides, 4" front rail and high-splash shelf for easy cleanup and lasting good looks.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and service.
- Standing pilots for burners; separate pilots with battery spark for each oven base.
- 6" stainless steel adjustable legs level the range on uneven floors.
- Certified cCSAus, CSA Flame, CSA Star and NSF for gas safety and sanitation.
Performance at a Glance
| Total Output | 300,000 BTU/hr |
|---|---|
| Open Burners | (6) × 27,000 BTU non-clog cast iron |
| Griddle | 24" wide, 48,000 BTU, thermostatically controlled |
| Ovens | (2) Standard ovens, 45,000 BTU each, 175 °F–550 °F |
| Cooking Surface | 60 ¾" W × 27" D | 37" cooktop height |
| Overall Dimensions | 60 ¾" W × 34" D × 59 ½" H (to top of riser shelf) |
| Gas Connection | ¾" NPT rear (opposite griddle side) |
| Gas Type | Natural gas (field convertible to LP) |
| Ignition | Standing pilot (top) / Battery spark (ovens) |
| Shipping Weight | Approx. 1,075 lb |
| Warranty | 1-year limited parts & labor |
What’s in the Box
- (2) Oven racks – one for each oven cavity
- 22.5" flue riser with heavy-duty shelf
- Factory-set gas pressure regulator
- Installation & operation manual
Commercial Use Only: Install under a vented hood and follow all local codes. Avoid using oversized cookware on the front burners to prevent heat damage to front-rail components.
Looking for easy monthly payments? Ask us about Middleby equipment financing options.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Top
(6) open burners, (1) 24" griddle with thermostat
Base
(2) standard ovens
Control Type
thermostatic controls
Plate Thickness
.500" = 1/2"
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Specifications
Ultimate Restaurant Range, gas, 60", (6) non-clog burners, wavy grates, (1) 24" griddle right, thermostatic controls, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 300,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
