Southbend (Middleby) 4602DD-2RR Ultimate Gas Ranges
Southbend (Middleby) 4602DD-2RR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4602DD-2RR Ultimate Gas Ranges
Description

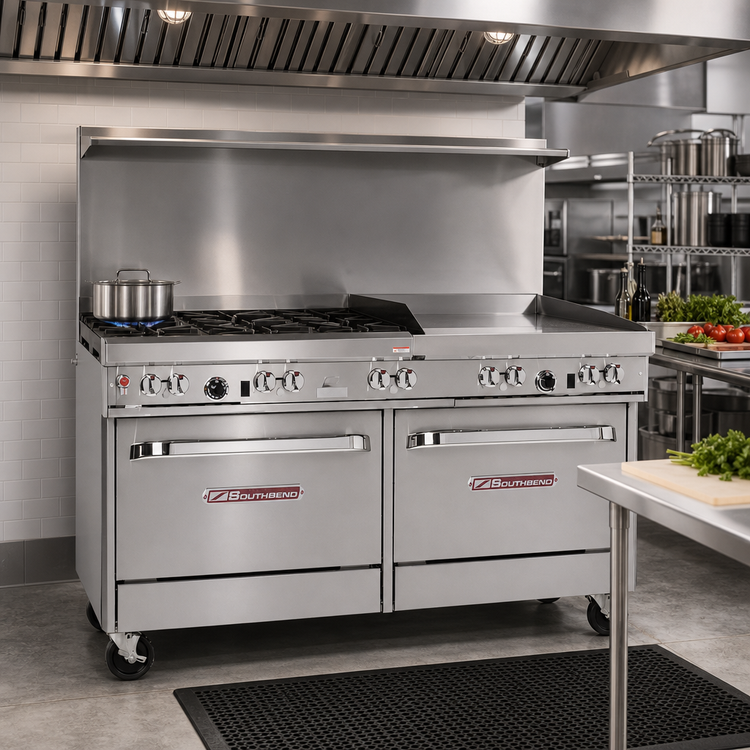

Ultimate 60″ Gas Restaurant Range
6 Non-Clog Burners • 24″ Raised Griddle/Broiler • Double Standard OvensPut the power of a full cook-line into a single footprint. Southbend’s Ultimate Series 60″ range combines high-performance open burners, a raised griddle/broiler, and two full-size ovens in a rugged all-stainless chassis built for the busiest kitchens.
Highlights
- Six 27,000 BTU patented non-clog cast-iron burners with lifetime-clear ports.
- Wavy cast-iron grates improve heat transfer & let you slide heavy pots effortlessly.

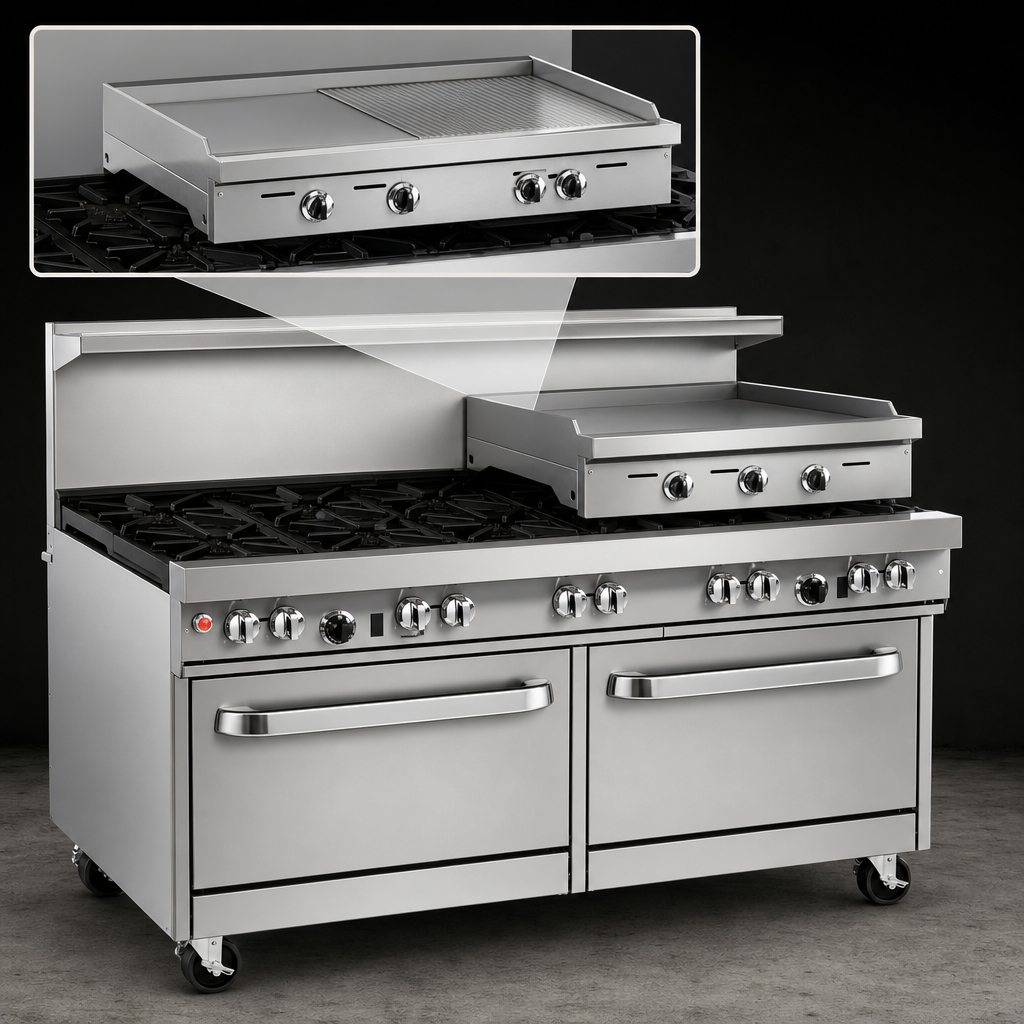

- 24″ raised griddle (½″ polished steel) with salamander-style broiler beneath — ideal for burgers, steaks and finishing.
- Two 45,000 BTU standard ovens (battery spark ignition) w/ porcelain interiors & 175–550 °F thermostats.
- Front master gas shut-off and factory regulator simplify service calls.
- 22 ½″ flue riser with heavy-duty stainless shelf keeps plates & pans close at hand.
- 6″ adjustable stainless legs (casters optional).
- Total input: 285,500 BTU/hr. ¾″ rear gas inlet (Natural or LP).
- Certified cCSAus, CSA Star, CSA Flame & NSF.
Spec Sheet
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Work-surface height | 37″ (940 mm) |
| Flue riser height | 22 ½″ (572 mm) w/ shelf |
| Open burners | 6 × 27,000 BTU non-clog |
| Griddle section | 24″ raised, 48,000 BTU, ½″ smooth steel |
| Broiler | Salamander beneath griddle |
| Ovens | 2 × 45,000 BTU standard, 175–550 °F |
| Total input | 285,500 BTU/hr |
| Gas connection | ¾″ NPT (rear) |
| Electrical | None – battery spark only |
| Construction | Stainless front, sides, shelf & legs |
| Warranty | 1 yr parts & labor (see Southbend limited warranty) |
What’s Included
- (6) removable wavy grates & two full-width drip trays
- (1) rack per oven (2-position rails)
- Factory-installed pressure regulator
Smart Design, Lower Downtime
- Lift-off grates and coved porcelain oven corners speed daily cleaning.
- All controls are front-mounted for safe, on-the-fly adjustments.
- Front gas shut-off lets techs service the entire range without pulling it from the line.
Oversized cookware (12″+ diameter) should be used on the rear burners to protect front-rail components.
Need easy monthly payments? Ask about Middleby Equipment Financing – quick approvals and potential Section 179 tax savings.
