Southbend (Middleby) 4602DD-2CR Ultimate Gas Ranges
Description

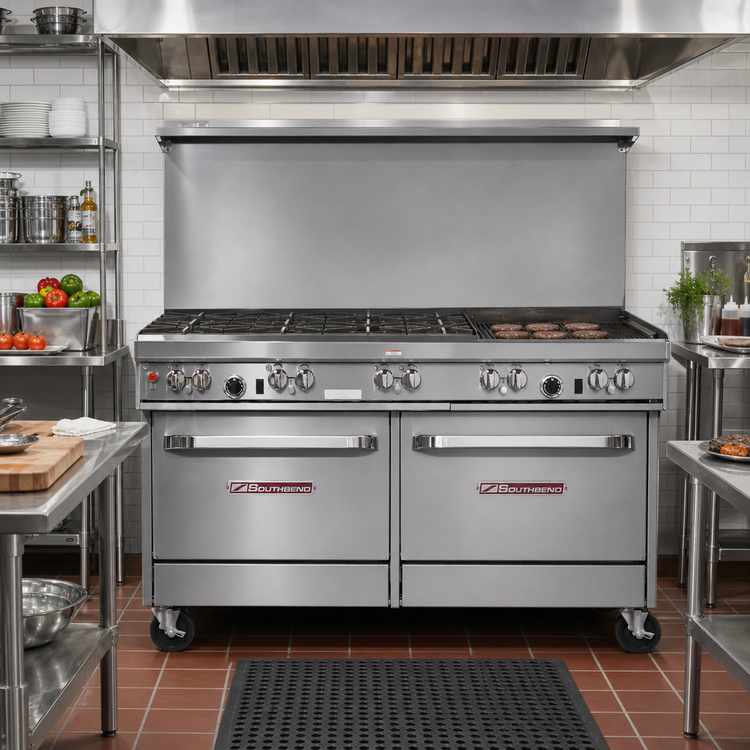

Southbend “Ultimate” 60" Gas Restaurant Range
6 Open Burners • 24" Charbroiler (Right) • Dual Standard OvensEngineered for the busiest commercial kitchens, the Southbend Ultimate Range combines rugged construction with 316,000 BTU of cooking power. Six lifetime-clog-free burners, a high-performance 24" charbroiler, and two full-size ovens give chefs the flexibility to sauté, grill and bake simultaneously—without compromising throughput or consistency.
Key Features & Benefits

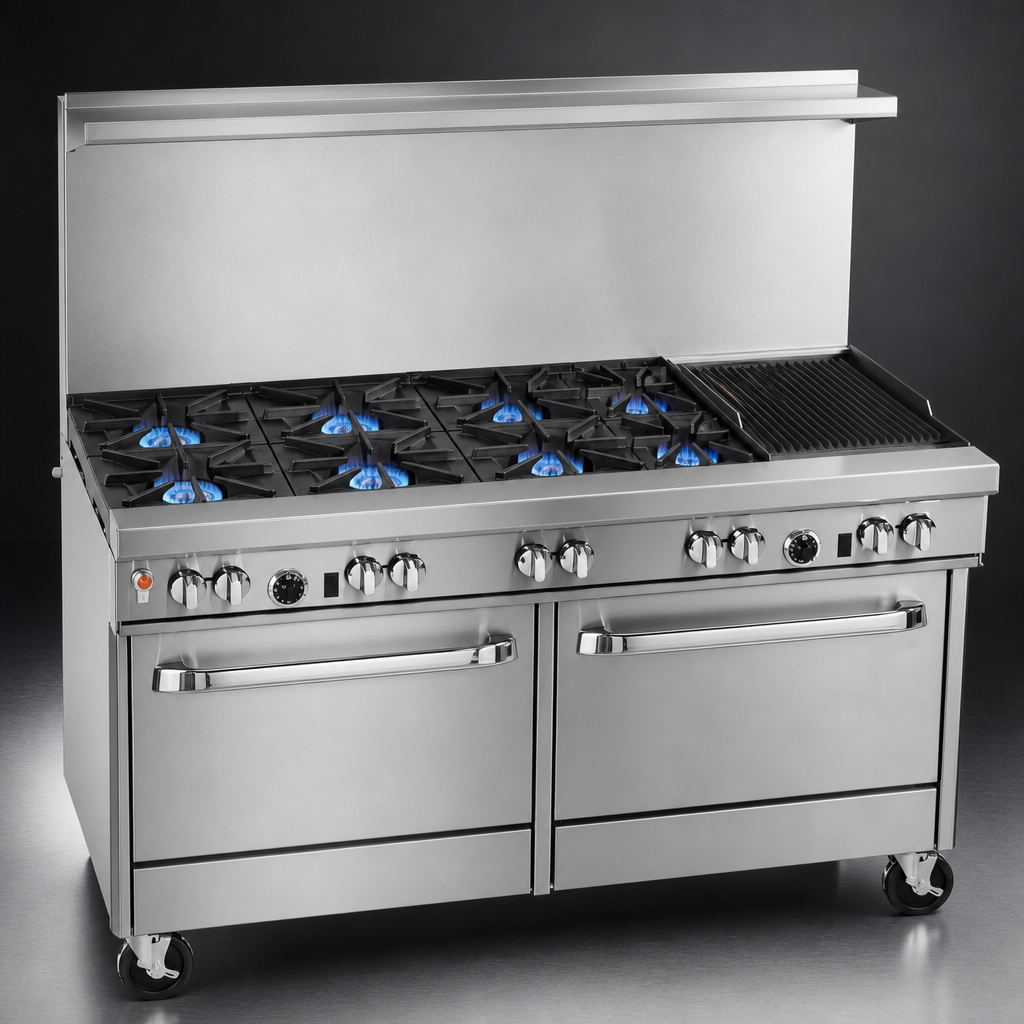

- 6 non-clog open burners (27,000 BTU each) – patented cast-iron design resists grease build-up and delivers even flame.
- Wavy cast-iron grates – bowl-shaped profile improves heat transfer and lets you slide cookware across the entire top.

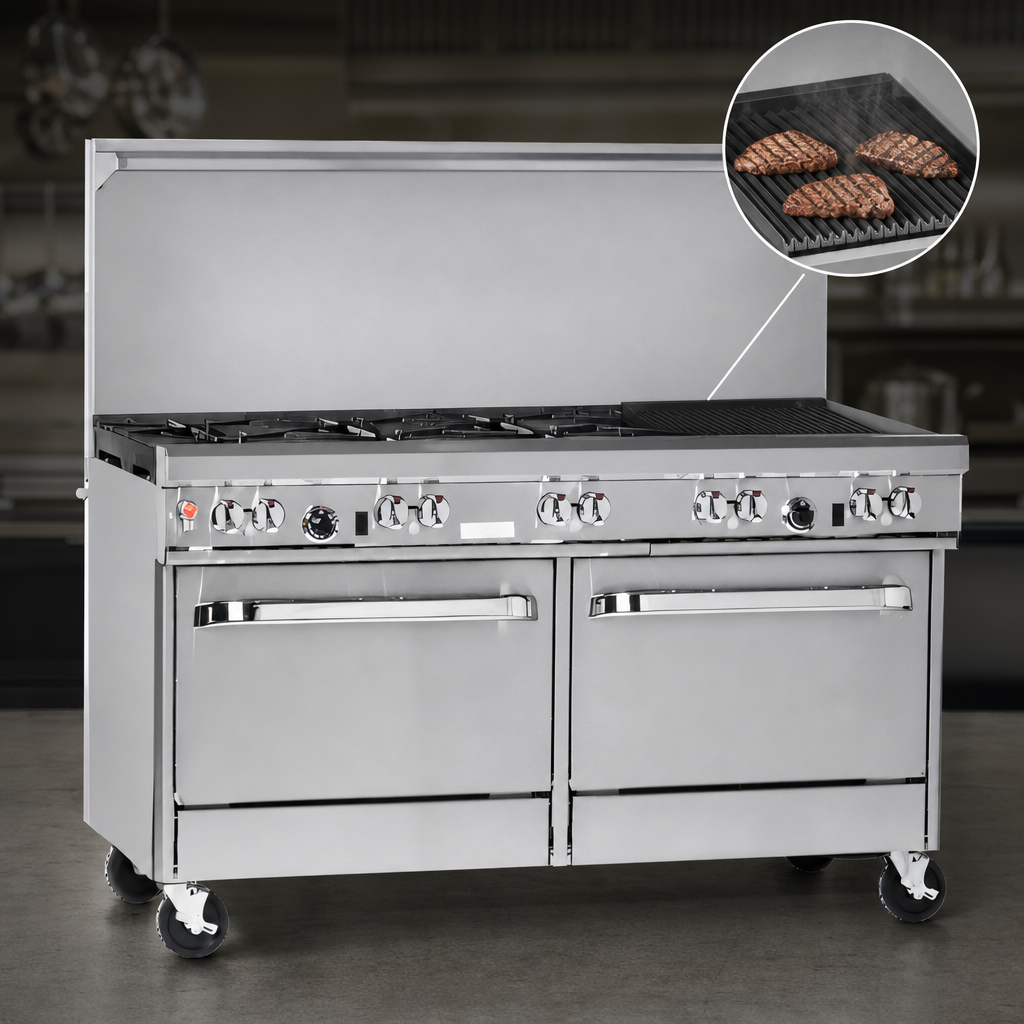

- 24" charbroiler (right-side, 64,000 BTU) – cast radiants & heavy grids produce steakhouse-quality sear marks.
- Dual standard ovens (45,000 BTU each) – porcelain-enameled cavities fit full-size sheet pans both ways; battery-spark ignition for match-free lighting.
- 22 ½" flue riser with heavy-duty shelf – convenient landing zone for plating or smallwares.
- 4" stainless steel front rail with front-mounted manual gas shut-off for the entire range.
- Stainless steel front, sides, shelf and 6" adjustable legs stand up to daily cleaning and heavy traffic.
- Factory-installed gas pressure regulator and standing pilots on the open burners for instant readiness.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
- Certified to CSA & NSF standards; commercial use only.
Specifications
| Model | 460DD-24C (Ultimate Series) |
|---|---|
| Exterior width | 60 ¾" (1543 mm) |
| Exterior depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Total BTU (Natural Gas) | 316,000 BTU/hr |
| Open burners | 6 × 27,000 BTU non-clog w/ wavy grates |
| Charbroiler | 24" right-side, 64,000 BTU |
| Ovens | 2 standard ovens, 45,000 BTU each, 175 °F – 550 °F |
| Oven racks | 1 per oven (two-position rails) |
| Gas connection | ¾" NPT (rear) |
| Shipping weight | ≈ 1,075 lb (488 kg) |
Perfect For
- Steak & chop houses needing both grill and sauté zones.
- High-volume diners, cafeterias and hotel kitchens.
- Catering halls looking to maximize menu versatility in a 60" footprint.
Warranty & Safety Notices
- One-year limited parts & labor warranty; see Southbend warranty statement for full details.
- Install under a properly sized, code-compliant vent hood.
- Charbroiler sections are approved for non-combustible locations only.
Intended for commercial use only. Images may show optional accessories such as casters.
