Southbend (Middleby) 4602DC-6R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
332,000 BTU • 3 Star/Sauté + 2 Pyromax + 4 Non-Clog Burners • Standard Oven & Cabinet BaseBuilt for chefs who need maximum power and flexibility in a single footprint, the Southbend Ultimate 60" Range combines three distinct burner styles, a high-performance oven, and a stainless storage cabinet. Whether you’re simmering sauces, searing steaks, or rolling a rapid stock boil, this NSF- & CSA-certified workhorse keeps pace with the busiest line.
Key Features
- Three 33,000 BTU cast-iron star/sauté burners (front right) for fast, even pan heating.
- Two 40,000 BTU Pyromax™ burners (rear right) deliver extreme output for large stock pots.
- Four 27,000 BTU lifetime non-clog burners (left) paired with wavy grates that let you slide cookware anywhere on the surface.
- 27"-deep cooking surface; rear grates accommodate up to 14" diameter pots.
- 45,000 BTU standard oven with battery-spark ignition, 175–550 °F thermostat, porcelain cavity & one rack (two positions).
- Right-side stainless steel cabinet base keeps sheet pans and utensils within reach (doors available at no charge).
- 22 ½" flue riser with heavy-duty utility shelf for convenient plating or small equipment.
- Front-mounted manual gas shut-off plus factory-installed regulator for quick service access.
- All-stainless front, sides & shelf with 6" adjustable stainless legs (casters optional).
- One-year parts & labor warranty; proudly built in Fuquay-Varina, NC.
At-a-Glance Specifications
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) to cooktop |
| Total gas input | 332,000 BTU/hr (natural gas) |
| Burner layout | 3 × 33 K Star • 2 × 40 K Pyromax • 4 × 27 K Non-Clog |
| Oven BTU | 45,000 BTU (standard oven) |
| Oven cavity (W × D × H) | 26" × 26.5" × 14" |
| Gas connection | 3/4" NPT rear; 7" W.C. NAT / 11" W.C. LP |
| Electrical | Battery-spark ignition (no cord required) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Why Kitchens Love the Ultimate Series
- Multiple burner types let you tackle delicate sautés, high-temp sears and long simmering stocks at the same time.
- Porcelain-lined oven cleans in minutes and resists corrosion for years of reliable service.

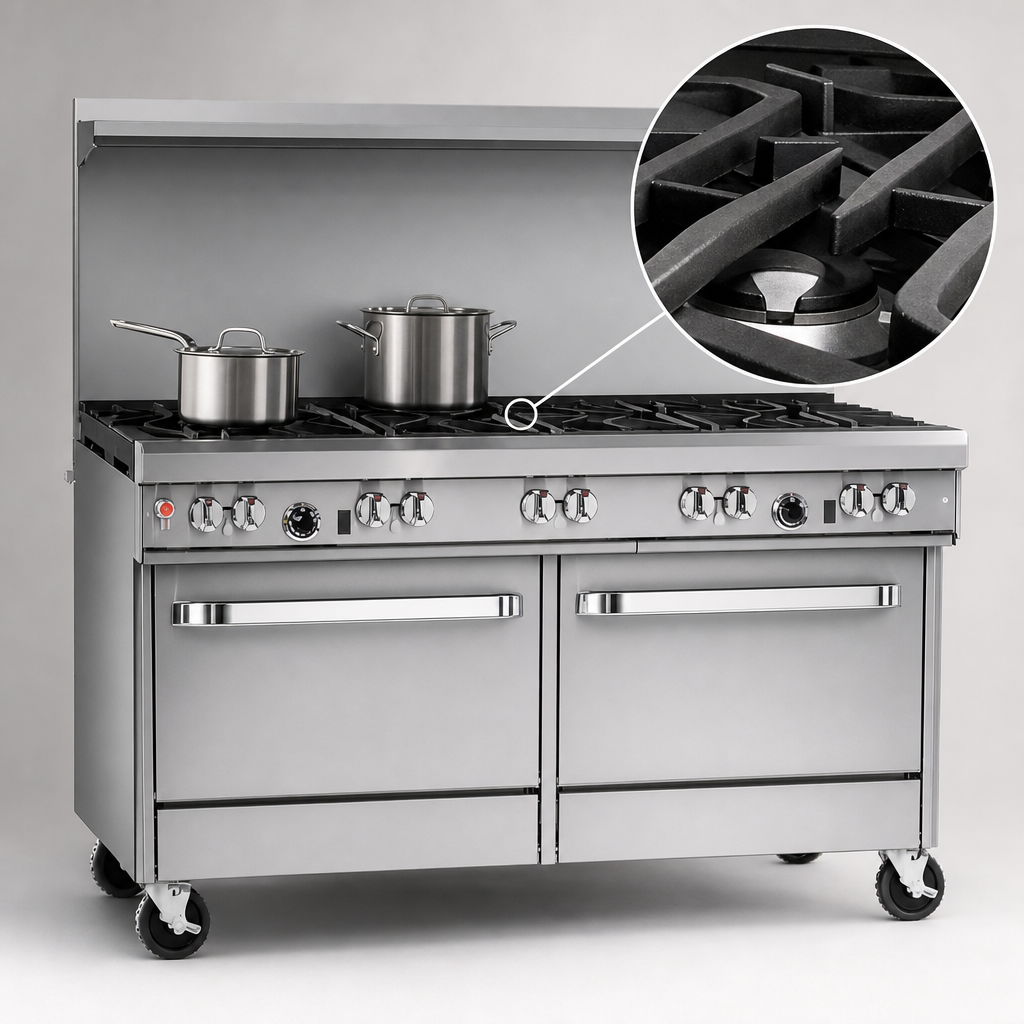

- Cast-iron wavy grates form a seamless surface—no more lifting heavy pans to reposition.
- Rugged stainless exterior shrugs off daily abuse and wipes down quickly at closing time.
Need predictable monthly payments? Ask about Middleby Equipment Financing and put this range to work without the big upfront hit to your capital.
