Southbend (Middleby) 4602DC-6L Ultimate Gas Ranges
Description

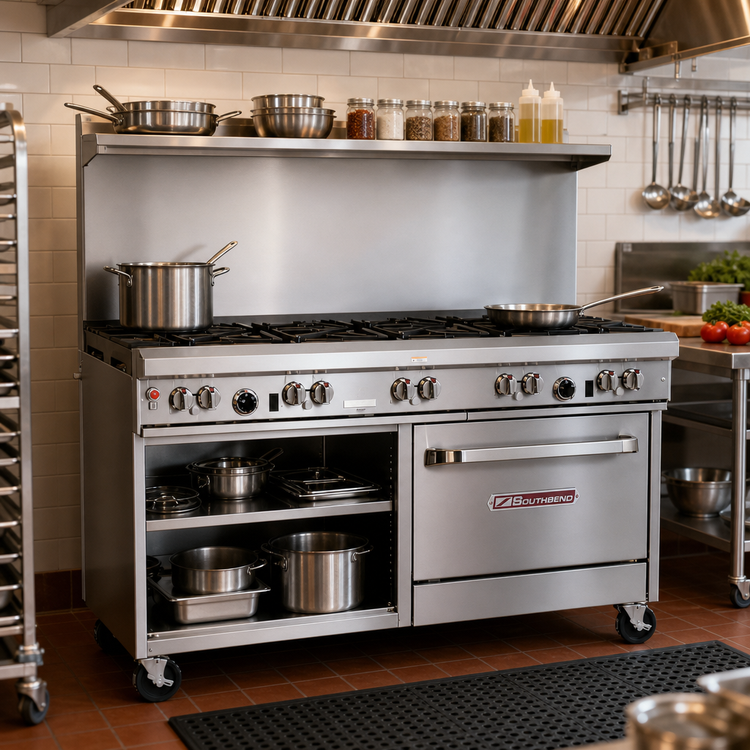

Southbend “Ultimate” 60" Gas Restaurant Range
3 Star • 2 Pyromax • 4 Non-Clog Burners | Std Oven + Cabinet BasePut maximum firepower in a single footprint. Southbend’s Ultimate Series pairs rugged, all-stainless construction with a mixed-burner top, a high-performance oven and built-in storage—delivering 332,000 BTU of cooking muscle that keeps up with the busiest kitchens.
Key Features
- 9 open-top burners, purpose-built for every station:
- 3 × 33,000 BTU Star/Sauté burners (front left) for fast, even pan work
- 2 × 40,000 BTU Pyromax power burners (rear left) for stock pots & woks
- 4 × 27,000 BTU non-clog burners with wavy grates (right side)
- Standing pilots on all burners for instant, reliable ignition

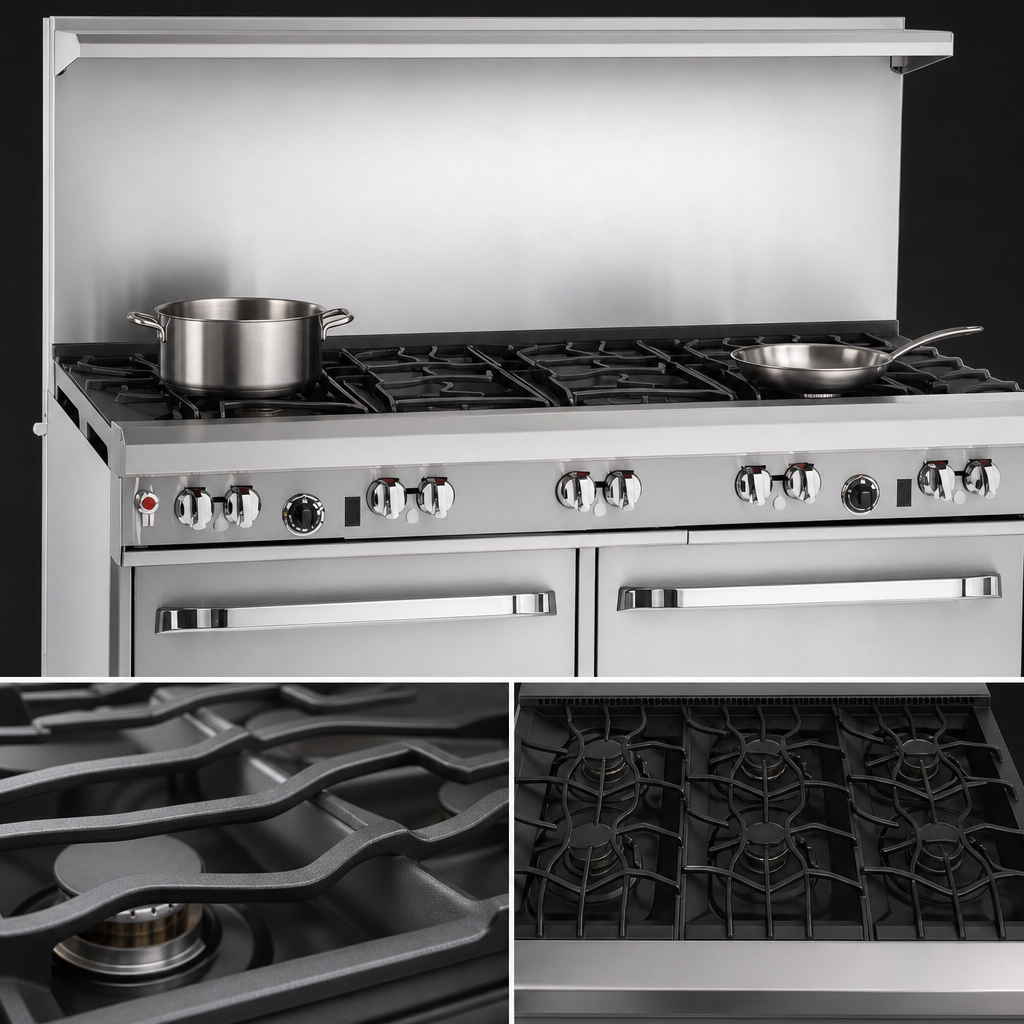

- Full 27"-deep cooking surface; wavy grates let cookware glide across the top
- 45,000 BTU standard oven with battery spark ignition & 175-550 °F thermostat
(porcelain interior, 1 rack included) - Right-side cabinet base keeps sheet pans, utensils or stock pots within reach
- 22-1/2" stainless flue riser with heavy-duty shelf for warming or plating
- 4" stainless front rail with front-mounted manual gas shut-off
- 6" adjustable stainless legs for easy leveling on uneven floors
- CSA Flame & Sanitation and NSF listed for safety and hygiene
- Factory-installed 3/4" gas pressure regulator; 1-year parts & labor warranty
Performance & Specifications
| Total BTU Input | 332,000 BTU/hr (Natural Gas) |
|---|---|
| Open-Top Configuration | 3 Star 33K • 2 Pyromax 40K • 4 Non-Clog 27K |
| Oven BTU / Temperature | 45,000 BTU • 175 °F – 550 °F |
| Cooking Surface | 60-3/4" W × 27" D |
| Exterior Dimensions | 60-3/4" W × 34" D × 59-1/2" H (to flue shelf) |
| Gas Connection | 3/4" NPT female (min. 7" W.C. inlet) |
| Shipping Weight | ≈ 1,075 lb (crated) |
| Construction | Stainless front, sides, 4" rail, shelf & legs |
| Certifications | CSA Flame • CSA Sanitation • NSF |
| Warranty | 1 year parts & labor (see warranty statement) |
Built for the Toughest Kitchens
- Lifetime cast-iron, clog-free burner design minimizes downtime
- Coved-corner porcelain oven cavity cleans fast and eliminates hot spots
- Modular Ultimate platform lets you add griddles, charbroilers or extra ovens as your menu grows
- Made in Fuquay-Varina, NC — over 125 years of commercial cooking expertise
