Southbend (Middleby) 4602DC-5R Ultimate Gas Ranges
$11,146.00
Unit price
/
Unavailable
Description

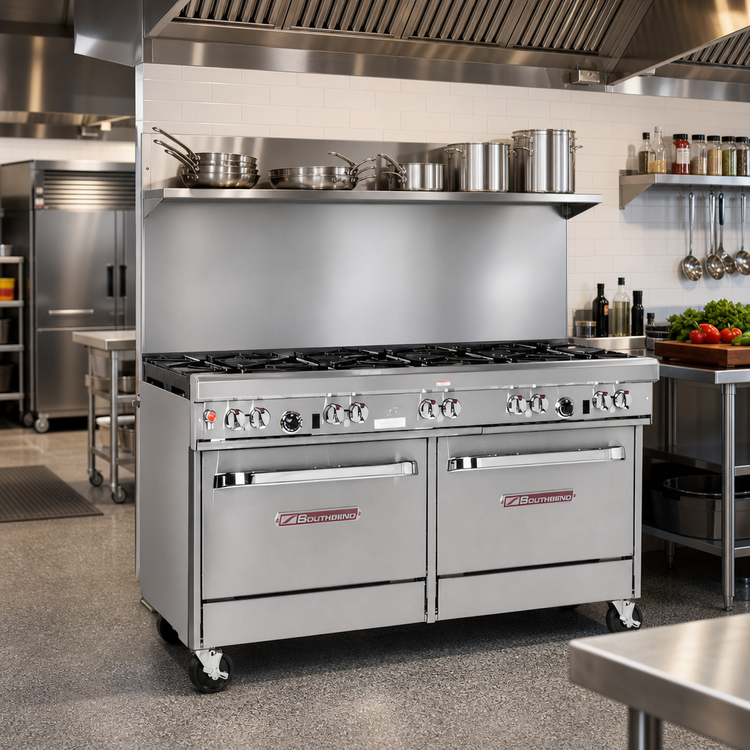

Southbend “Ultimate” 60" Gas Restaurant Range – 332,000 BTU
7 Non-Clog Burners • 2 Pyromax Burners • Standard Oven • Cabinet BaseBuilt for chefs who refuse to compromise, the Southbend Ultimate 60" range delivers premium power, rock-solid construction, and the versatility to handle every station on a busy line.
Key Advantages
- 332,000 BTU/hr combined output keeps up with the highest-volume kitchens.
- (7) patented, lifetime non-clog burners with cast-iron wavy grates—slide stock pots without lifting.
- (2) high-performance 40,000 BTU Pyromax burners in the rear right corner for rapid boiling & wok work.
- 45,000 BTU standard oven with battery-spark ignition—no external electrical connection required.
- One-touch manual gas shut-off for the entire range, located front-and-center.
- 22-1/2" flue riser with heavy-duty shelf adds convenient plating or small-wares space.
- All-stainless front, sides, 4" rail & shelf plus 6" adjustable legs built to survive years of daily abuse.
- Factory-installed regulator & standing pilots speed up installation and service.
- CSA & NSF certified for worry-free code compliance.

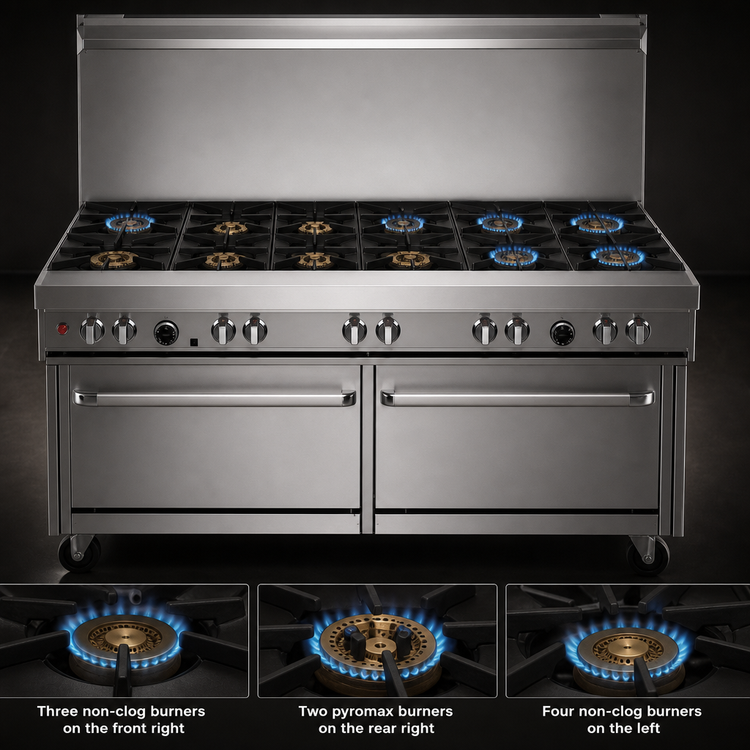

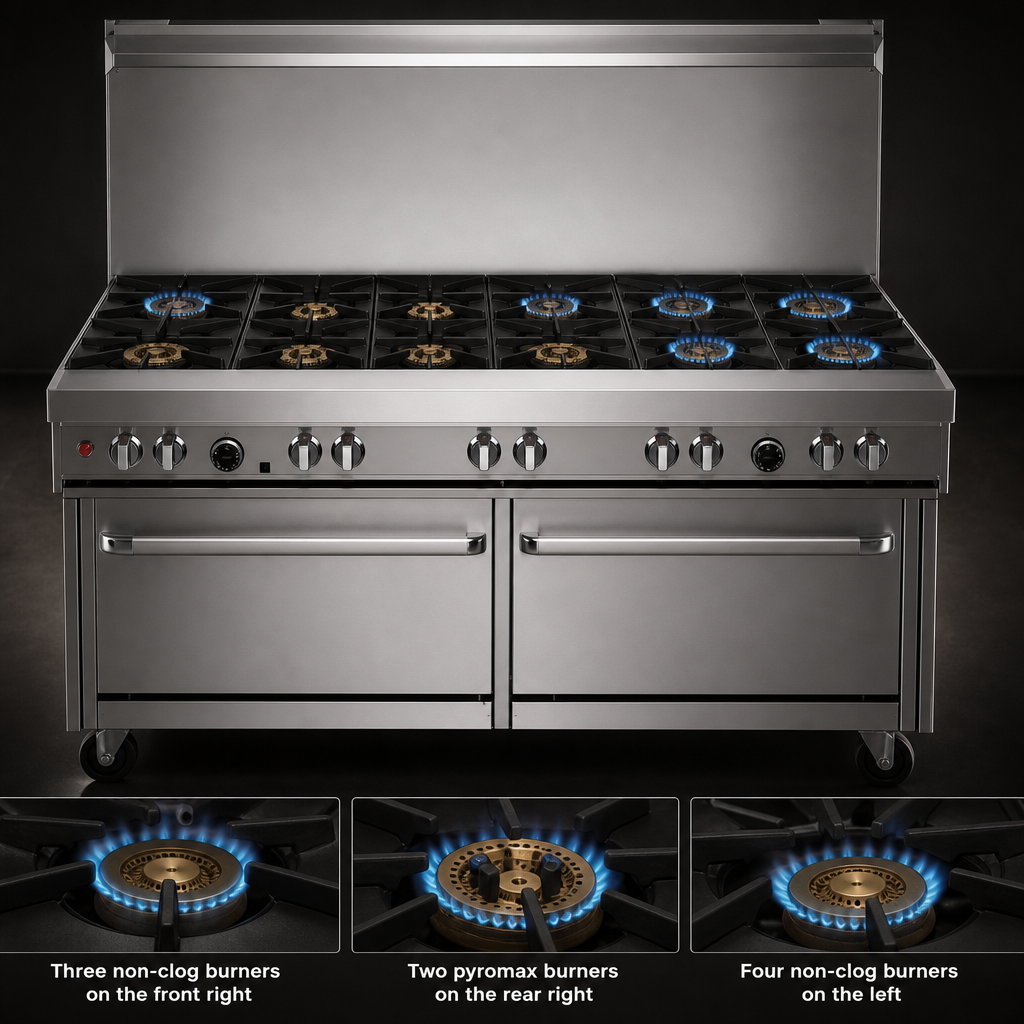

Detailed Burner Layout
| Left Section | (4) Non-clog open burners |
|---|---|
| Front Right | (3) Non-clog open burners |
| Rear Right | (2) 40,000 BTU Pyromax burners |

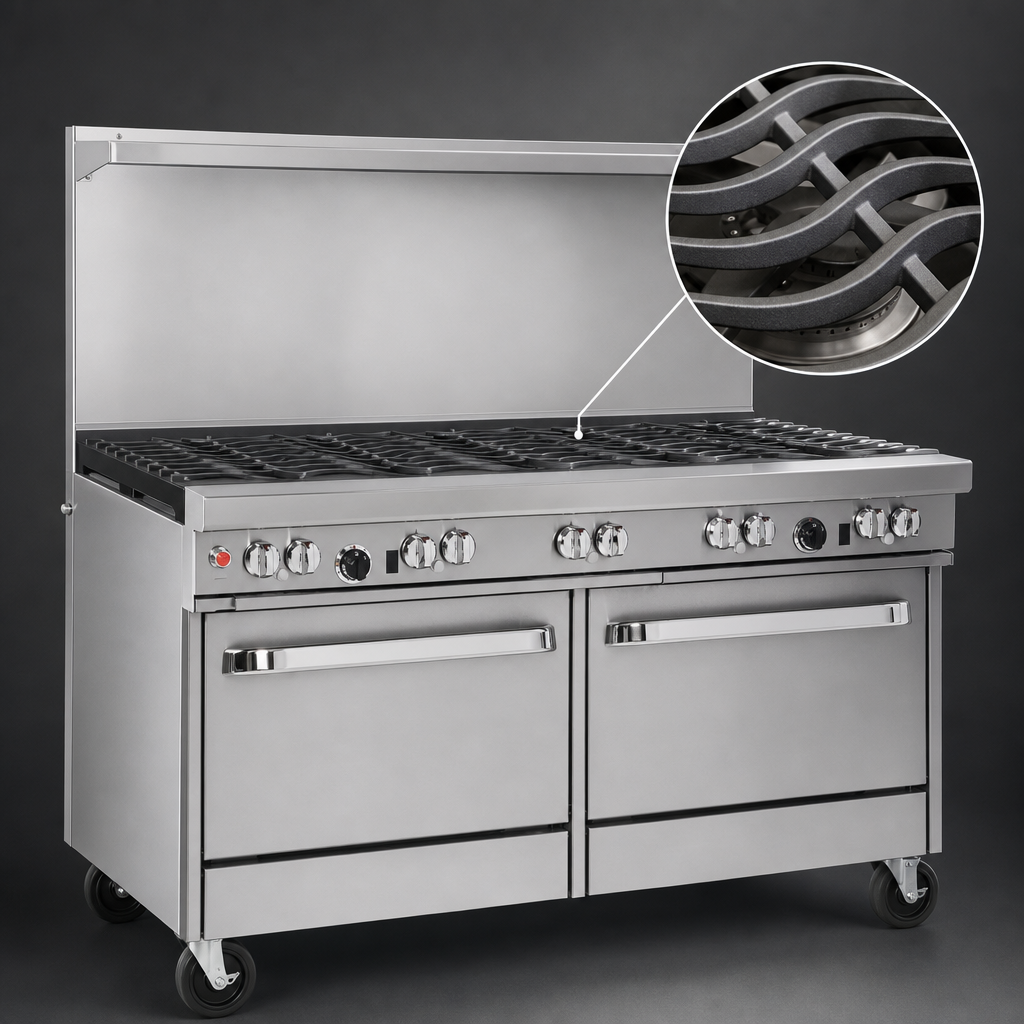

| Grates | Cast-iron wavy grates (full-top coverage) |
Oven Performance
| Type | Standard bake/range oven |
|---|---|
| Heat Output | 45,000 BTU/hr |
| Thermostat Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Interior (H × W × D) | 14" × 26" × 26.5" – fits full-size sheet pans both directions |
| Ignition | Battery-spark (battery included) |
| Rack(s) Supplied | 1 heavy-duty rack with 2-position side rails |
Construction & Utility Requirements
| Exterior Dimensions (W × D × H) | 60.75" × 34" × 37" to cooking surface |
|---|---|
| Cooking Surface Depth | 27" |
| Gas Connection | 3/4" NPT (rear), factory regulator included Inlet pressure: 7" W.C. NAT • 11" W.C. LP |
| Total Gas Load | 332,000 BTU/hr |
| Electrical | None (oven powered by battery spark) |
| Shipping Weight | Approx. 1,075 lb |
Included With Your Range
- Stainless steel open cabinet base for dry storage
- Heavy-duty oven rack
- 22-1/2" flue riser with integrated shelf
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Installation & Use Notice: This appliance is intended for commercial kitchens only and must be
installed under a properly sized vent hood. When using cookware 12" or larger, place it on the rear burners
to prevent heat damage to the front rail. Always follow local codes and Southbend’s installation manual.
Ask your sales rep about Middleby Equipment Financing for low monthly payments that keep cash flow cooking.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Top
(9) open burners
Base
(1) standard oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 60", (3) non-clog burners front right, (2) pyromax burners rear right, (4) non-clog burners left, wavy grates, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 332,000 BTU, CSA, NSF
