Southbend (Middleby)  |  Ultimate  |  SKU: 4602DC-5L

Southbend (Middleby) 4602DC-5L Ultimate Gas Ranges

$11,146.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

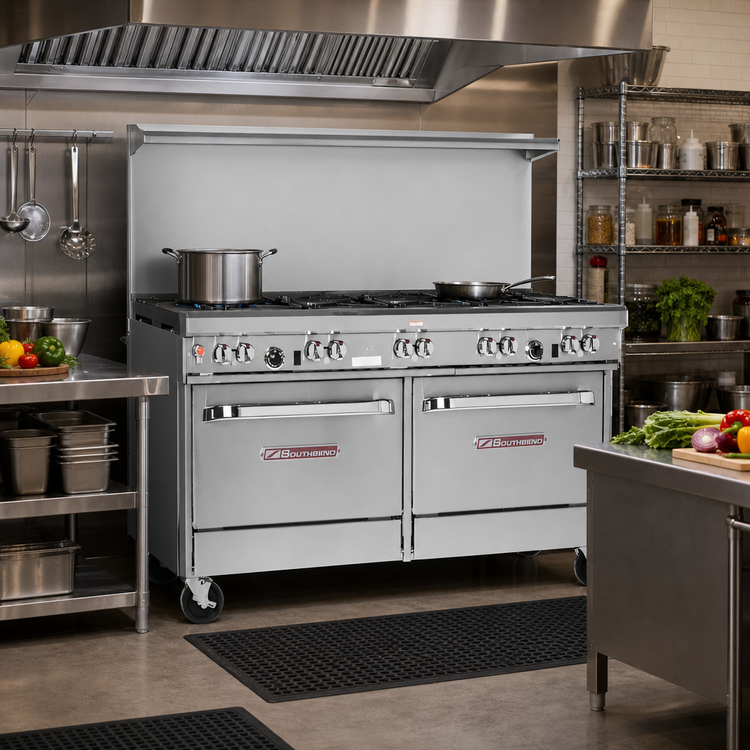

Southbend “Ultimate” 60" Gas Restaurant Range

Custom 3 + 2 Pyromax + 4 Burner Top • Standard Oven • Cabinet Base • 332,000 BTU

Built for punishing commercial schedules, the Ultimate Series from Southbend (Middleby) delivers rock-solid construction, chef-friendly ergonomics and industry-leading performance. This 60-inch model combines high-output open burners with a full-size standard oven and extra storage—all wrapped in easy-to-clean stainless steel.

Key Performance Features

  • 332,000 BTU total input for rapid recovery and all-day consistency
  • Burner layout:
    • (3) non-clog open burners – front left
    • (2) 40,000 BTU Pyromax burners – rear left (high-output)
    • (4) non-clog open burners – right side
  • Wavy, cast-iron grates span the entire top, allowing oversized stock pots to slide effortlessly
  • Standing pilots for open tops—fast, reliable lighting
  • Full-width, front-mounted manual gas shut-off for one-touch safety
  • Standard oven (45,000 BTU) with battery-spark ignition; ships with 1 rack and 2 position rails
  • Stainless steel cabinet base (open) keeps hotel pans, utensils or smallwares within reach
  • 22-1/2" flue riser with heavy-duty integrated shelf—ideal for spice blends & smallwares
  • 6" stainless steel, adjustable legs level the unit on uneven floors
  • Factory-installed regulator, CSA & NSF listed, and backed by a 1-year parts & labor warranty

Specifications

Exterior width 60 ¾" / 1543 mm
Exterior depth 34" / 864 mm
Cooking-surface height 37" / 940 mm
Overall height (with flue) 59 ½" / 1511 mm
Total BTU input 332,000 BTU/hr (Natural or LP – specify at order)
Gas connection 3/4" NPT (left or right, field-reversible)
Required inlet pressure 7" W.C. Natural • 11" W.C. LP
Oven interior (WxDxH) 26" × 26.5" × 14" (fits full-size sheet pans both directions)
Standard equipment 1 oven rack, regulator, flue shelf, leg set, user manual
Certifications CSA, NSF
Warranty 1-year parts & labor (see Southbend limited warranty for details)
Important: This appliance is intended for commercial use only and must be installed under a properly sized, code-compliant vent hood. For best results, limit oversized (12" +) cookware to rear positions to avoid excess heat on the front rail.

Need flexible payment options? Ask us about Middleby Equipment Financing for fast credit decisions and affordable monthly terms.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Top

(9) open burners

Base

(1) standard oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 60", (3) non-clog burners front left, (2) pyromax burners rear left, (4) non-clog burners right, wavy grates, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front left, sides, shelf & 6" adjustable legs, 332,000 BTU, CSA, NSF
