Southbend (Middleby) 4602DC-3TR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4 Non-Clog Burners • 36" Thermostatic Griddle (Right) • Standard Oven & Cabinet BaseBuilt for chefs who refuse to compromise, the Southbend Ultimate Range packs heavy-duty power, rock-solid construction and everyday versatility into one 60-inch workhorse. From high-heat sautéing to precision-griddling and high-volume baking, this single appliance does it all while saving valuable line space.
Why You’ll Love It
- 4 patented 27 K BTU non-clog burners with lifetime-clog-free design for consistent blue flame.
- Wavy cast-iron grates let you slide stock pots and pans across the full 27"-deep cooktop with ease.

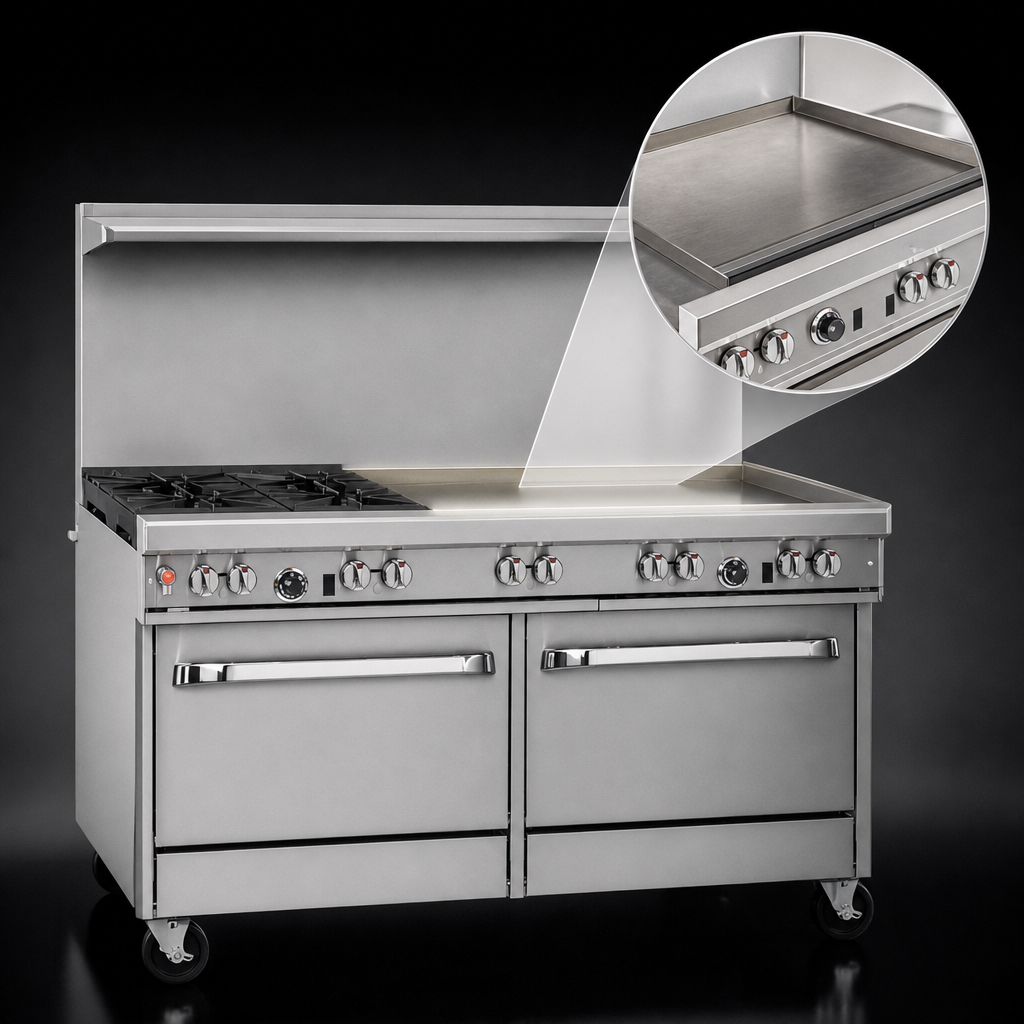

- 36" right-side griddle features a ½" smooth steel plate & thermostatic controls for ±10 °F accuracy.
- Standard oven (45 K BTU) lights fast with battery spark ignition and fits full-size sheet pans left-to-right or front-to-back.
- Integrated cabinet base keeps extra pans, spices or cleaning tools within arm’s reach.
- 22-½" flue riser with heavy-duty shelf—perfect for holding plates or smallwares while you cook.
- Front-mounted manual gas shut-off plus factory-installed regulator for quick, safe service.
- All-stainless front, sides, shelf & 6" adjustable legs stand up to daily commercial abuse and make wash-downs fast.
At-a-Glance Specifications
| Overall width | 60 ³⁄₄" (1543 mm) |
|---|---|
| Cooking surface height | 37" (940 mm) |
| Open burners | 4 × 27 K BTU non-clog, standing pilot |
| Griddle | 36" right-side, 64 K BTU, ½" polished plate, thermostatic |
| Oven type / capacity | Standard oven, 45 K BTU • 14" H × 26" W × 26.5" D 1 rack included, 2-position rails |
| Base | Left-side cabinet (doors optional at no charge) |
| Total output | 217,000 BTU/hr (Natural gas) |
| Gas connection | ¾" NPT (factory regulator supplied) |
| Compliance | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
| Shipping weight | Approx. 1075 lb (488 kg) |
Included with Your Range
- 1 oven rack
- 22-½" flue riser with shelf
- Factory pressure regulator & battery for spark ignition
Intended for commercial use only. Ventilation hood and gas connection by others. Specifications subject to change without notice.
