Southbend (Middleby) 4602DC-2GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
6 Open Non-Clog Burners • 24" Right-Hand Griddle • Standard Oven + Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Ultimate Range lets you sear, sauté, grill and bake from a single, heavy-duty platform. Lifetime non-clog burners, polished steel griddle and a porcelain-lined oven deliver unmatched durability and performance shift after shift.
Why You’ll Love It
- 255,000 BTU Total Output — powers through high-volume service without a hiccup.
- Six 27,000 BTU Non-Clog Cast-Iron Burners with wavy grates for even heat and full-top pan movement.

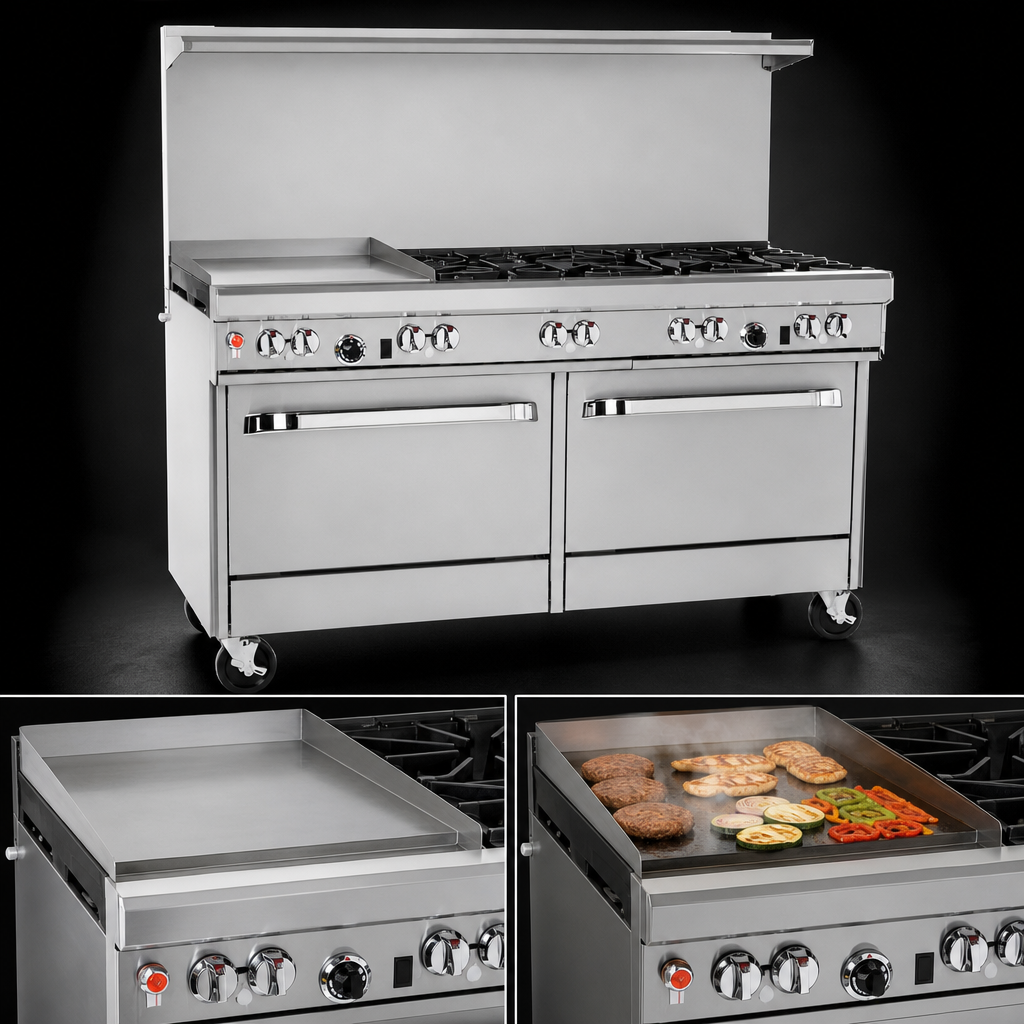

- 24" x 27" Griddle (right) — ½" smooth, polished steel plate with raised sides; perfect for breakfast, burgers or tortillas.
- 45,000 BTU Standard Oven — battery-spark ignition, 175 °F–550 °F thermostat, porcelain interior and (1) heavy rack.
- Stainless Steel Construction — front, sides, 22 ½" flue riser/shelf and 6" adjustable legs stand up to daily abuse.
- Front-Located Master Gas Shut-Off and factory-installed regulator for quick, safe service.
- 1-Year Parts & Labor Warranty backed by Southbend’s nationwide service network.
- Certified cCSAus, CSA Flame, CSA Star & NSF.
At-a-Glance Specs
| Cooking Width | 60 ⅞" (1543 mm) |
|---|---|
| Depth (including rail) | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Burners | 6 × 27,000 BTU non-clog cast iron |
| Griddle | 24" wide, ½" plate, 48,000 BTU |
| Oven Type / Capacity | Standard bakery depth – 14"H × 26"W × 26.5"D |
| Oven BTU / Temp Range | 45,000 BTU | 175 °F–550 °F |
| Total BTU (Natural Gas) | 255,000 BTU/hr |
| Gas Connection | ¾" NPT (rear), 7" W.C. NAT / 11" W.C. LP |
| Crated Weight | Approx. 1,075 lb (488 kg) |
| Included Accessories | (1) oven rack, 22 ½" flue riser shelf, factory regulator |
Popular Add-Ons (sold separately)
- Swivel casters with front locks
- Quick-disconnect hose (3 – 5 ft)
- Shelf- or range-mount salamander / cheesemelter
- Cabinet doors for the open base
- Extra oven racks
Contact our team to have options pre-installed before delivery.
Warranty & Safety Notes
- 1-year parts & labor coverage when serviced by an authorized Southbend agency.
- If installing on floors other than quarry tile, consult the factory to prevent damage not covered by warranty.
- Use oversized (12"+ diameter) pots on rear burners to protect the front rail components.
Need easy monthly payments? Ask us about Middleby Equipment Financing and keep cash flow strong.
