Southbend (Middleby) 4602DC-2CR Ultimate Gas Ranges
Description

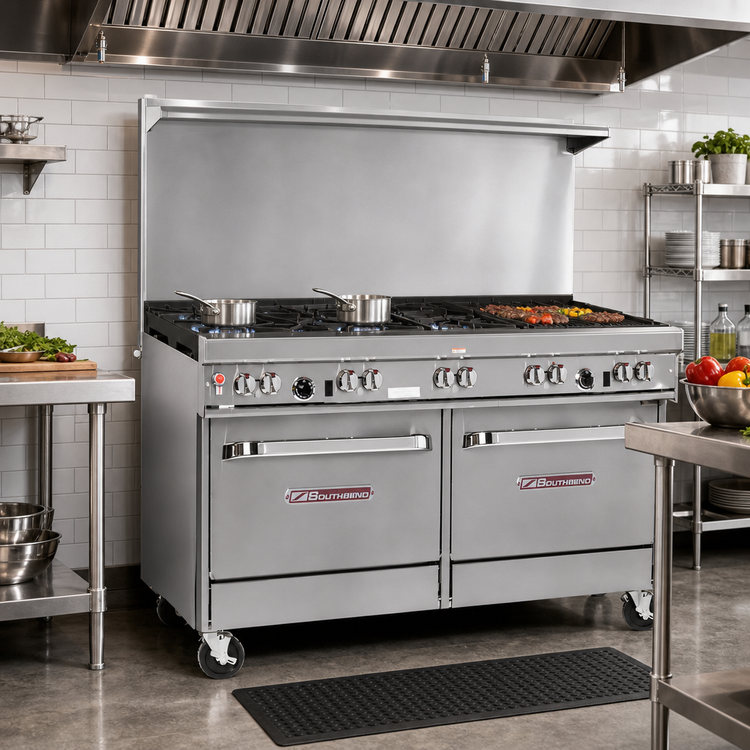

Southbend Ultimate 60″ Gas Restaurant Range – 6 Burners, 24″ Charbroiler, Standard Oven
271,000 BTU | Natural Gas | CSA & NSF CertifiedPair high-volume sauté power with true charbroiler flavor in one rugged, 60-inch footprint. Southbend’s Ultimate Series unites six clog-free burners, a right-side 24″ charbroiler and a full-size oven under an all-stainless chassis designed for the toughest commercial kitchens.
Why You’ll Love It
- Six 27,000 BTU non-clog cast-iron burners with patented wavy grates for superior pan stability and even flame spread.

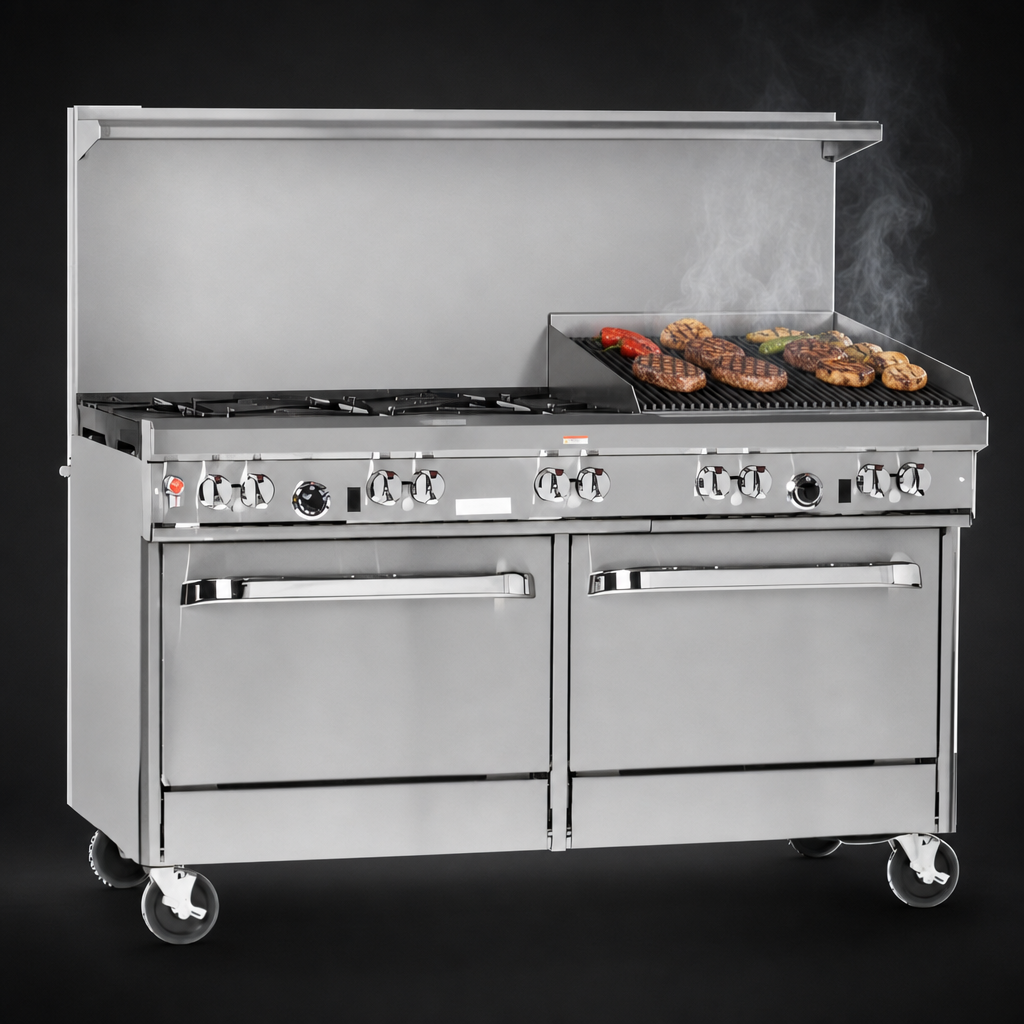

- Right-hand 24″ charbroiler (64,000 BTU) delivers authentic grill marks with heavy-duty cast-iron radiants.
- 45,000 BTU standard oven with battery spark ignition; thermostat range 175 °F–550 °F and one rack (2 positions).
- 22.5″ flue riser with built-in shelf keeps plates and seasonings within arm’s reach.
- Front-mounted manual gas shut-off and factory-installed regulator for fast, code-compliant hook-ups.
- 4″ stainless front rail plus 6″ adjustable stainless legs for safe, ergonomic line work.
- Total input: 271,000 BTU/hr – all the heat you need in a single, space-saving appliance.
- Stainless steel front, sides, shelf and cabinet base stand up to daily heavy use and high-heat wash-downs.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Technical Specs
| Cooktop Width | 60 3/4″ (1543 mm) |
|---|---|
| Configuration | 6 open burners + 24″ charbroiler (right) |
| Total BTU Input | 271,000 BTU/hr (Natural Gas) |
| Open Burners | (6) 27,000 BTU cast-iron, non-clog with wavy grates |
| Charbroiler Section | 24″, 64,000 BTU, cast-iron radiants & grates |
| Oven | Standard, 45,000 BTU; battery spark ignition; 1 rack / 2 positions |
| Cooking Surface Depth | 27″ |
| Overall Depth × Height | 34″ D × 59.5″ H (top of flue); 37″ H cooking surface |
| Gas Connection | 3/4″ NPT (minimum 7″ W.C. NG / 11″ W.C. LP) |
| Clearances – Combustible | 10″ rear & sides (charbroiler requires non-combustible installation) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Need a different top or oven style? Ultimate ranges are configurable with griddles, Pyromax burners, convection ovens and more – contact us for details.
