Southbend (Middleby) 4602CC-7R Ultimate Gas Ranges
Description

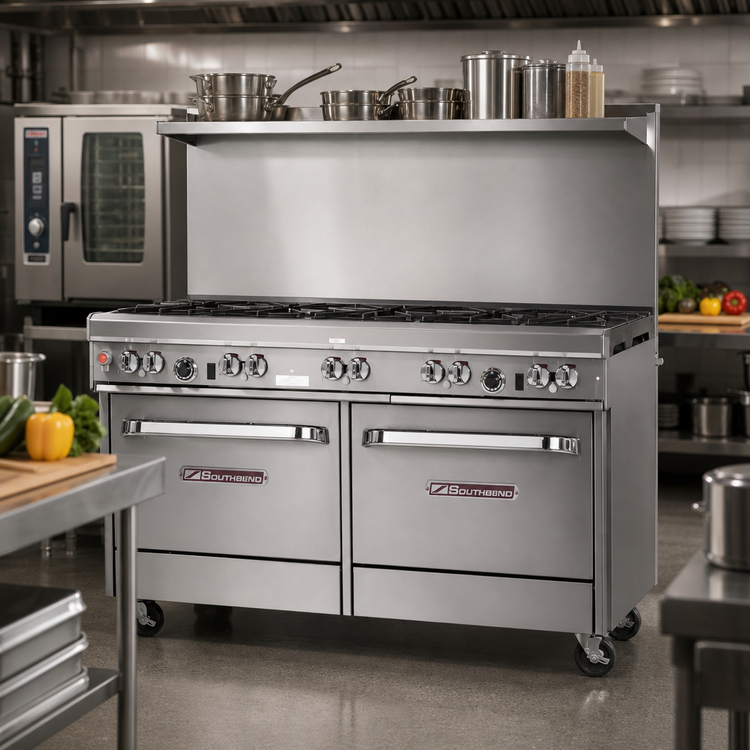

Southbend Ultimate 60" Gas Restaurant Range
Model 460-CC | 4 Non-Clog Burners w/ Wavy Grates + 4 Pyromax Burners | 268,000 BTUGive your line cooks the firepower and workspace they crave. Built on Southbend’s heavy-duty Ultimate platform, this 60-inch range delivers a combined 268,000 BTU across eight open burners, a rugged stainless exterior, and two full-width cabinet bases for dry storage—all in one high-performance package.
Key Features

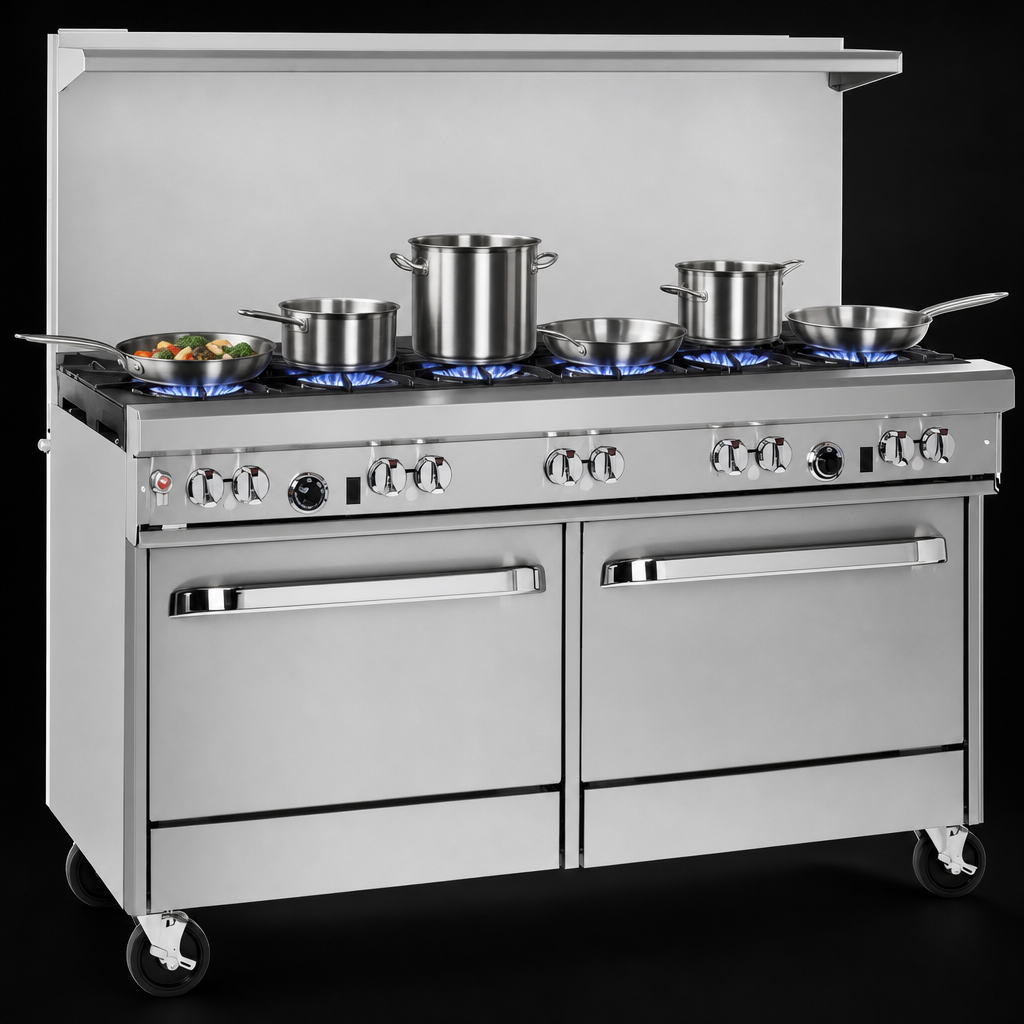

- Eight open top burners

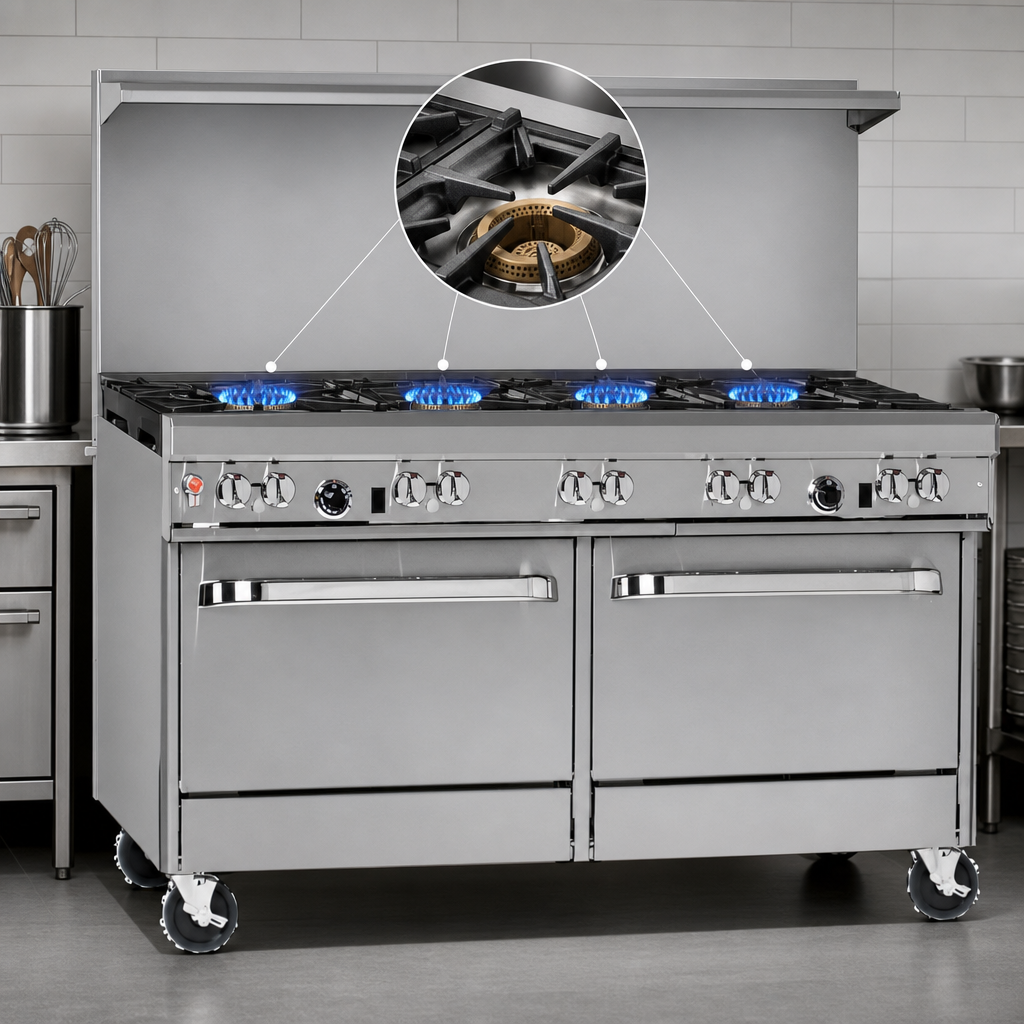

- (4) 27,000 BTU lifetime non-clog burners with cast-iron wavy grates for full-surface pan support
- (4) 40,000 BTU Pyromax power burners on the right—perfect for woks, stock pots & rapid boils
- Standing pilots for instant, reliable ignition
- 4" deep stainless front rail with front-mounted manual gas shut-off
- 22-1/2" flue riser with heavy-duty shelf—ideal for keeping plates and smallwares warm
- (2) full stainless cabinet bases for sheet pans, hotel pans or dry goods (doors available at no charge)
- 6" adjustable stainless legs—level the range on uneven floors or add optional locking casters
- Factory-installed pressure regulator; 3/4" rear gas connection
- Durable stainless steel front, sides and high-shelf resist daily abuse and speed clean-ups
- 1-year limited parts & labor warranty, backed by Southbend’s nationwide service network
- Certified to CSA & NSF standards for commercial kitchens
At-a-Glance Specs
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Burner configuration | (4) 27 K BTU non-clog + (4) 40 K BTU Pyromax |
| Total input | 268,000 BTU/hr (Natural gas) |
| Gas connection | 3/4" NPT (Min. 7" W.C. NG inc. regulator) |
| Base type | Dual stainless storage cabinets |
| Flue riser | 22 1/2" with integrated plate shelf |
| Exterior | Stainless steel front, sides, high-shelf & rail |
| Legs | 6" stainless, height-adjustable |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see Southbend terms) |
• Commercial installation under a ventilating hood is required.
• If cookware 12" or larger is used, place it on rear grates to avoid overheating the front rail.
• Range is intended for professional food-service operations only.
