Southbend (Middleby) 4602CC-7L Ultimate Gas Ranges
Description

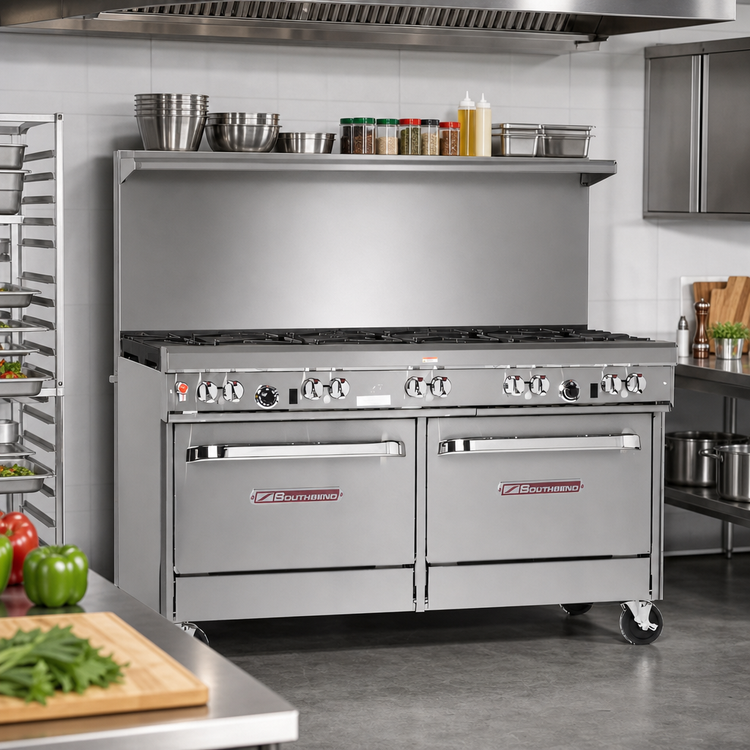

Southbend Ultimate 60” Gas Restaurant Range
4 Non-Clog + 4 Pyromax Burners • 268,000 BTUEngineered for high-volume kitchens, the Ultimate Series delivers the muscle and durability you expect from Southbend. This 60-inch model couples lightning-fast Pyromax burners with versatile non-clog burners set in efficiency-boosting wavy grates, while two stainless cabinet bases keep your line clutter-free.
Power & Performance

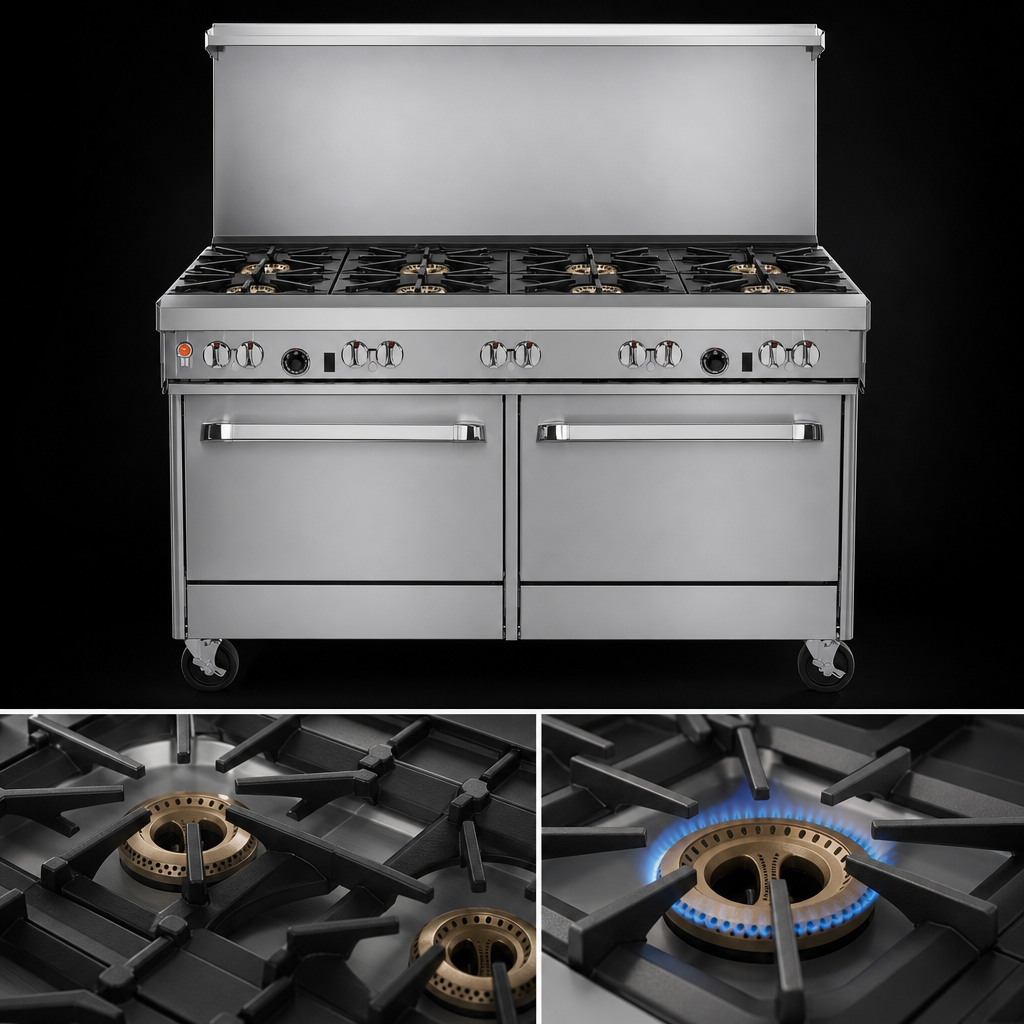

- 8 open-top burners:

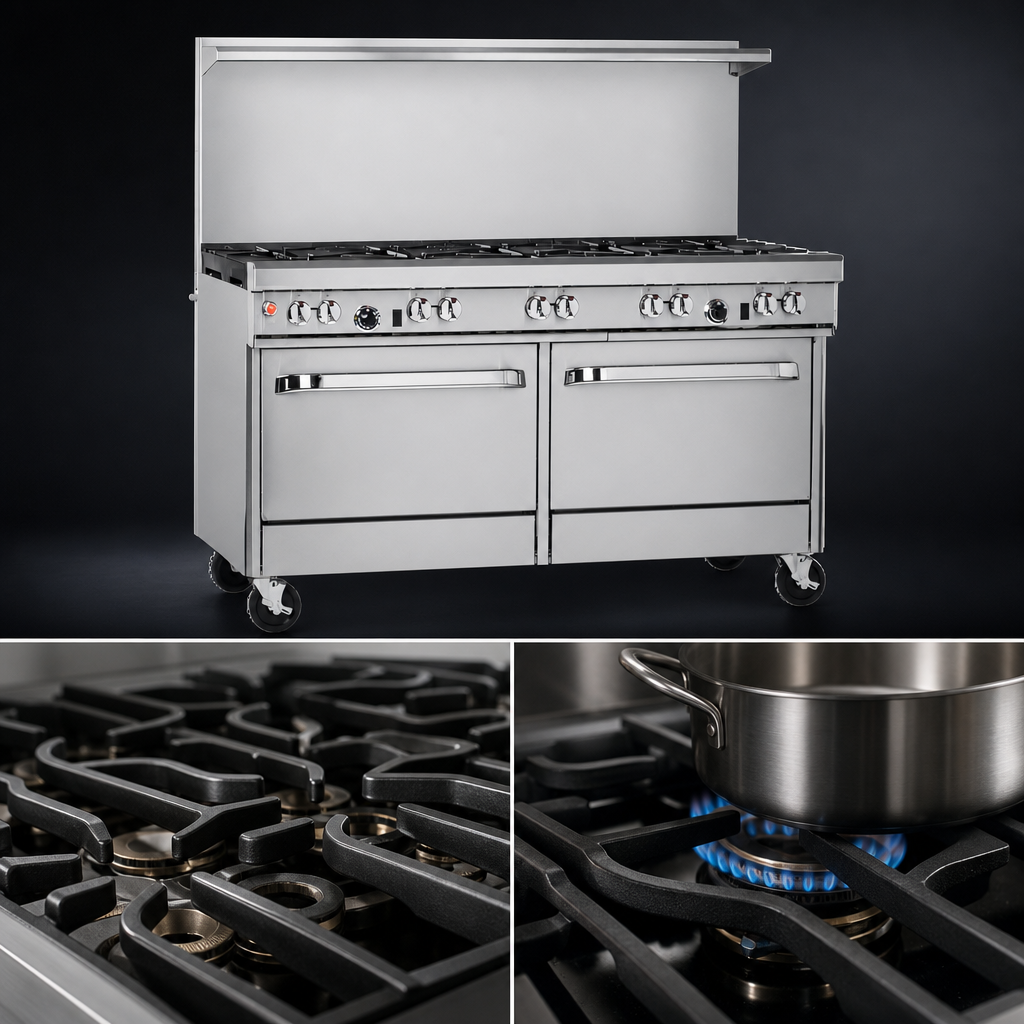

- 4 × 27,000 BTU non-clog cast-iron burners with wavy grates for superior pan contact
- 4 × 40,000 BTU patented Pyromax burners (left side) with built-in drip rings
- Total input: 268,000 BTU/hr (natural gas)
- Standing pilots for instant lighting and a front-mounted master gas shut-off
- 27″-deep cooking surface handles up to 14″ stock pots on the rear grates
Built to Last
- 22-1/2″ stainless flue riser with heavy-duty shelf for pans, spices and smallwares
- 4″ stainless front rail and full-width removable drip trays simplify cleanup
- All-stainless front, sides and shelf plus 6″ adjustable stainless legs
- Factory-installed 3/4″ pressure regulator; CSA & NSF certified
- 1-year parts & labor warranty backed by nationwide Southbend service
Technical Specifications
| Overall width | 60-3/4″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Cooking surface height | 37″ (940 mm) |
| Cooking surface depth | 27″ (686 mm) |
| Burner layout | 4 × 27K non-clog w/ wavy grates | 4 × 40K Pyromax (left) |
| Total input | 268,000 BTU/hr (Natural Gas) |
| Gas connection | 3/4″ NPT (rear); min. inlet 7″ W.C. NAT |
| Flue riser | 22-1/2″ with integrated shelf |
| Base | Two stainless storage cabinets (no ovens) |
| Legs | 6″ stainless, height-adjustable (casters optional) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Looking for a different top or accessory? Southbend can factory-fit griddles, charbroilers, hot tops, salamander mounts and more—just ask!
- For non-quarry tile floors, obtain approved leg or curb mounting solutions from Southbend.
- Limit oversized (12″+) cookware to rear burners to avoid excess heat on the front rail.
- Commercial, vent-hood installation required; not for household use.
