Southbend (Middleby) 4602CC-5R Ultimate Gas Ranges
Description

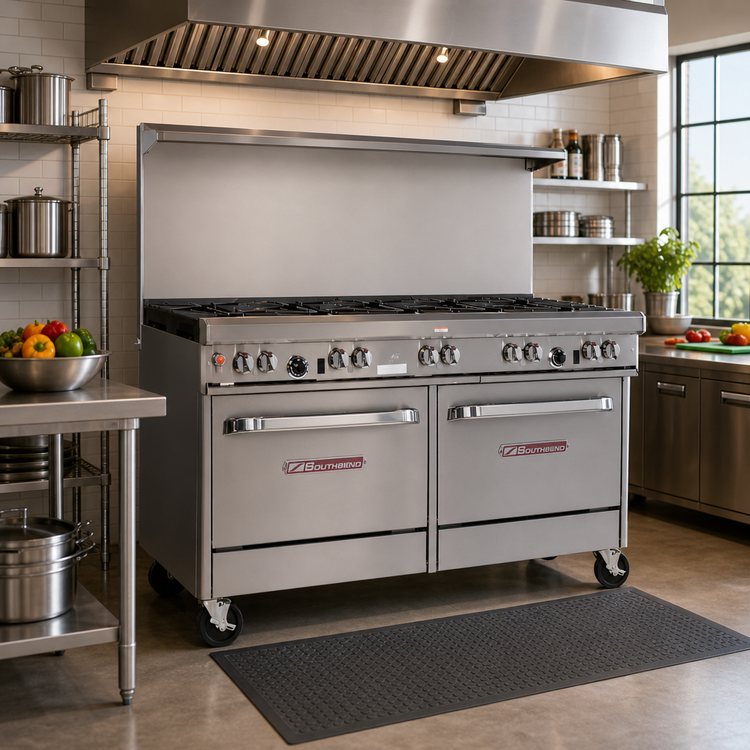

Southbend Ultimate 60" Restaurant Range – Custom 9-Burner Top
Model 460 Series | Natural Gas | 287,000 BTUPurpose-built for high-volume kitchens that refuse to compromise, the Southbend Ultimate Range combines rugged construction with a flexible burner layout that lets you sear, sauté, simmer and stock-pot-boil – all at the same time. Stainless steel everywhere you need it and Southbend’s lifetime clog-free burner design mean more cooking and less cleaning.
Why You’ll Love It

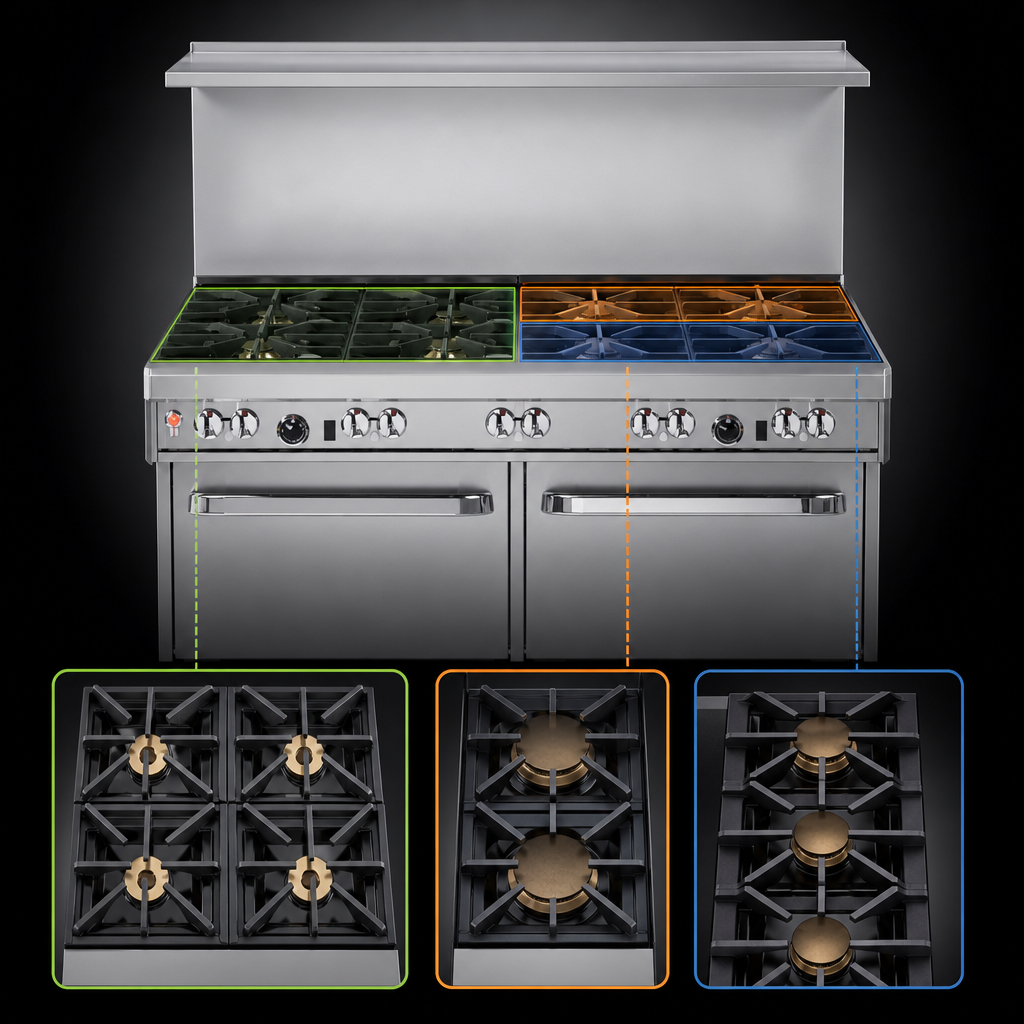

- Custom 9-burner configuration – 3× 33 k BTU non-clog open burners (front right), 2× 40 k BTU Pyromax™ power burners (rear right) & 4× 27 k BTU non-clog burners (left).
- Patented wavy cast-iron grates maximize pan contact and let you slide heavy stock pots effortlessly across the full top.
- All-stainless exterior (front, sides, 4" front rail & high-capacity shelf) stands up to daily abuse and wipes clean fast.
- Full-width, 22 ½" flue riser with integrated shelf keeps plated food warm and handy.
- (2) stainless steel cabinet bases provide dry, heated-free storage – no ovens to clean or pilot lights to maintain.
- Front-mounted manual gas shut-off for the entire range for instant safety control.
- Standing pilots for open tops – always ready to light without electrical requirements.
- 6" adjustable stainless legs make leveling quick on any commercial floor.
- Certified to CSA • NSF standards for gas safety and sanitation.
Tech Specs
| Cooking surface | 60 ⅞" W × 27" D cast-iron grate top |
|---|---|
| Total BTU input | 287,000 BTU/hr (natural gas) |
| Burner layout | 3 × 33 k non-clog (front R) · 2 × 40 k Pyromax (rear R) · 4 × 27 k non-clog (left) |
| Base | Dual stainless cabinet (doors open from center) |
| Overall dimensions | 60 ¾" W × 34" D × 59 ½" H* *Height includes flue riser & shelf |
| Cooking height | 37" |
| Gas connection | ¾" NPT female, 7" W.C. minimum inlet (natural gas) |
| Clearances | 0" sides • 0" rear to non-combustible surfaces 10" to combustibles |
| Certifications | CSA Gas, CSA Sanitation, NSF Listed |
| Warranty | 1 year parts & labor (see Warranty tab for details) |
Peace-of-Mind Warranty
Southbend backs every Ultimate Range with a 1-year limited parts & labor warranty when serviced by an authorized agency. Full policy available at southbendnc.com/service-and-parts.
- For non-quarry tile floors, consult factory for approved leg/caster options.
- Limit cookware over 12" Ø to the rear grates to protect the front rail components.
- Always install under a properly sized, vented hood per local codes.
