Southbend (Middleby) 4602CC-5L Ultimate Gas Ranges
Description

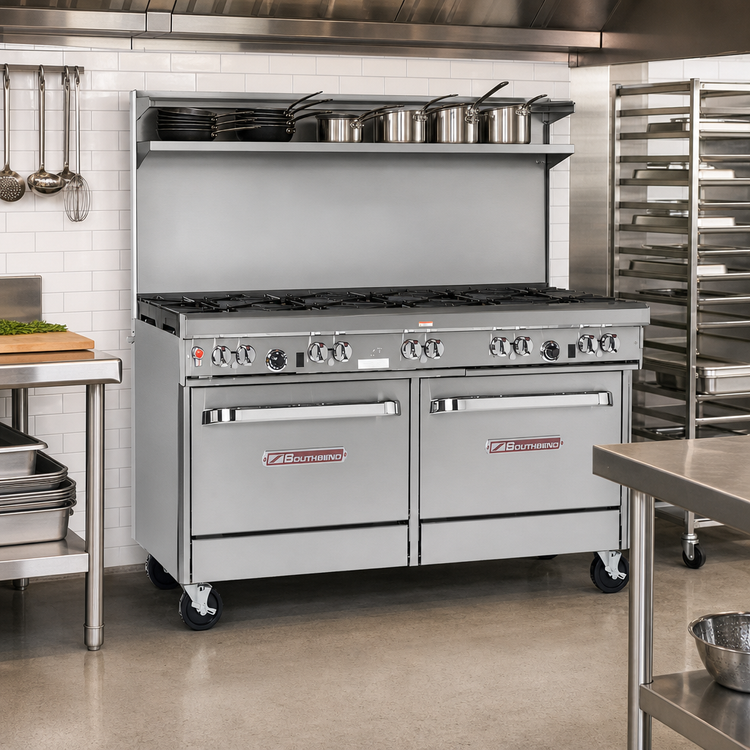

Ultimate 60" Gas Restaurant Range
Southbend-Middleby | CSA & NSF Certified | 287,000 BTUEngineered for the busiest commercial kitchens, the Southbend Ultimate 60" Restaurant Range delivers heavyweight cooking power, exceptional durability, and the flexible burner mix chefs ask for most. With wavy cast-iron grates spanning a spacious 27"-deep cook surface and two stainless-steel cabinet bases below, this range is ready for everything from rapid wok work to simmer-all-day sauces—while keeping sheet pans and mise-en-place right where you need them.
Why You’ll Love It

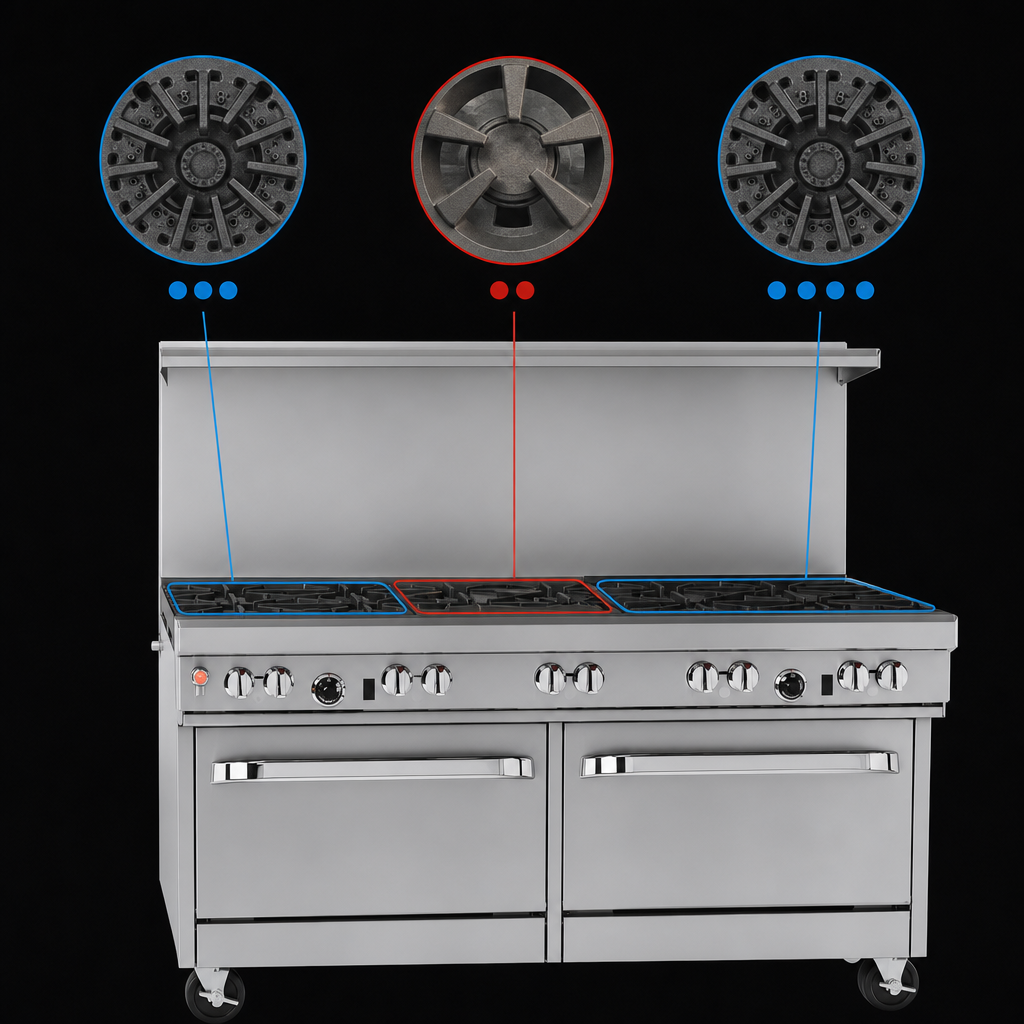

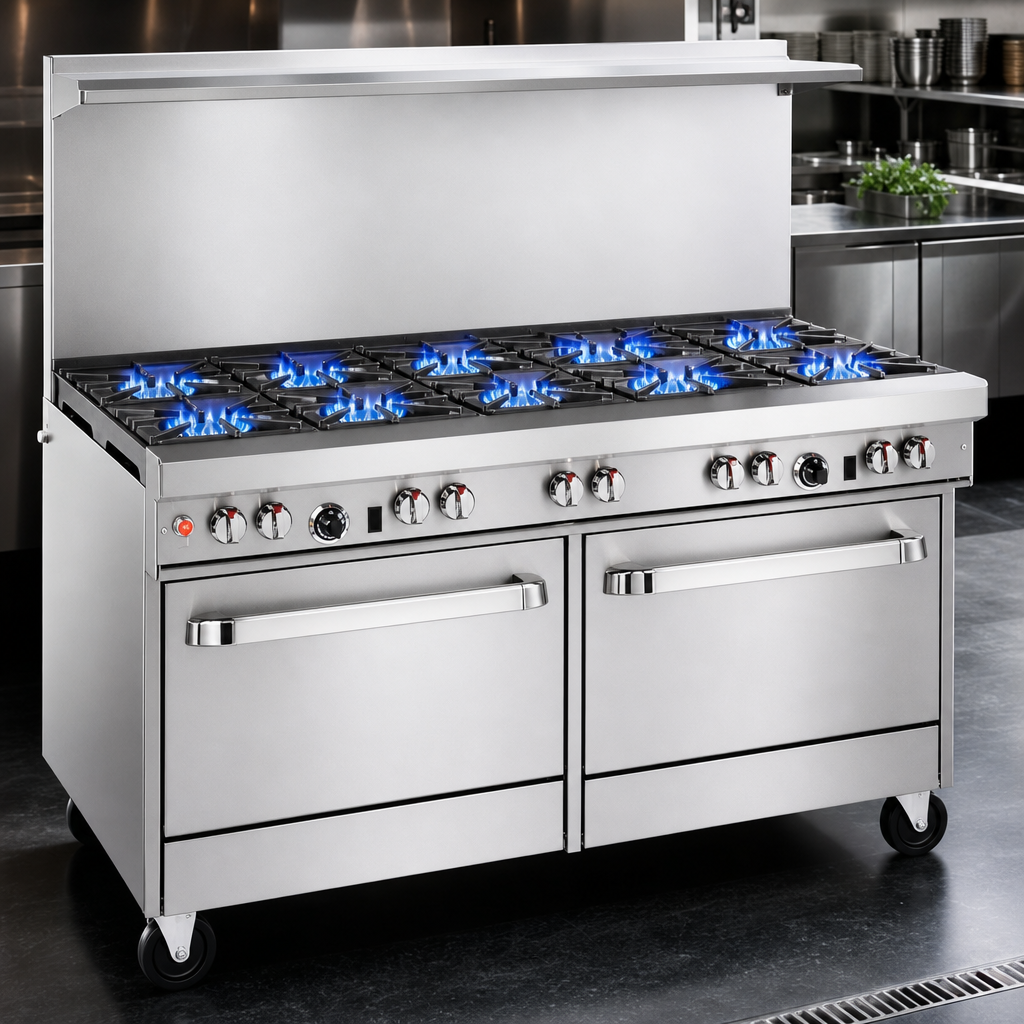

- 9-burner power platform – (3) 27 K BTU non-clog burners (front left), (2) 40 K BTU Pyromax™ high-output burners (rear left) and (4) 27 K BTU non-clog burners (right side).
- Wavy cast-iron grates maximize pan stability and let you slide cookware across the entire top without lifting.
- 22 ½" flue riser with heavy-duty shelf keeps plates, spices or smallwares warm and within reach.
- Stainless steel construction on front, sides, shelf and 6" adjustable legs for unmatched kitchen-grade durability and easy wipe-down cleaning.
- Front-located manual gas shut-off for fast, safe service access.
- Standing pilots provide reliable instant ignition on every open burner.
- Factory-installed ¾" regulator—arrives ready for quick hook-up.
- Twin cabinet bases offer ventilated, stainless storage for hotel pans, stock pots and utensils.
- 1-year parts & labor warranty backed by Southbend’s nationwide authorized service network.
Technical Specifications
| Overall width | 60 ³⁄₄" (1543 mm) |
|---|---|
| Cook surface depth | 27" (686 mm) |
| Cooking height | 37" (940 mm) to grate surface |
| Total BTU input | 287,000 BTU/hr (natural gas) |
| Burner layout |
• 3 × Non-clog open burners, 27 K BTU each (front left) • 2 × Pyromax™ burners, 40 K BTU each (rear left) • 4 × Non-clog open burners, 27 K BTU each (right side) |
| Base configuration | (2) Stainless steel storage cabinets with optional no-charge doors |
| Flue riser | 22 ½" with integrated heavy-duty overshelf |
| Gas connection | ¾" NPT, rear (factory regulator included) |
| Certifications | CSA, NSF |
| Shipping weight | Approx. 1,075 lb (488 kg) |
| Warranty | 1 year parts & labor (see Southbend limited warranty) |
