Southbend (Middleby) 4602CC-4GR Ultimate Gas Ranges
$12,684.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4602CC-4GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4602CC-4GR Ultimate Gas Ranges
$12,684.00
Unit price
/
Unavailable
Description

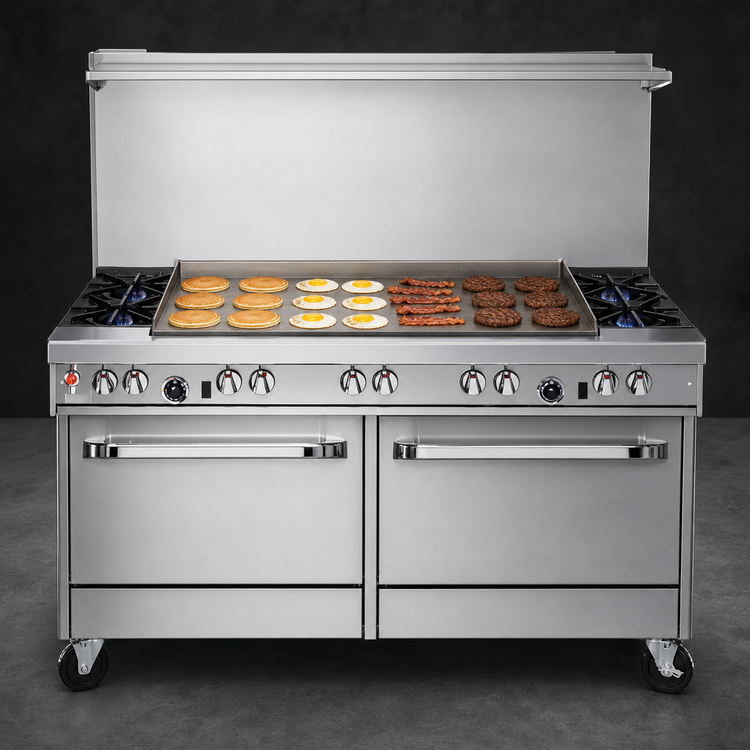

Southbend Ultimate Series 60" Gas Restaurant Range w/ 48" Right-Side Griddle & 2 Non-Clog Burners
134,000 BTU | Cabinet Base | Natural or LP GasBuilt for kitchens that live on their flat-top, this Ultimate Series range unites a massive 48" griddle with two high-output open burners—giving you the speed, flexibility, and rugged construction Southbend is famous for.
Key features

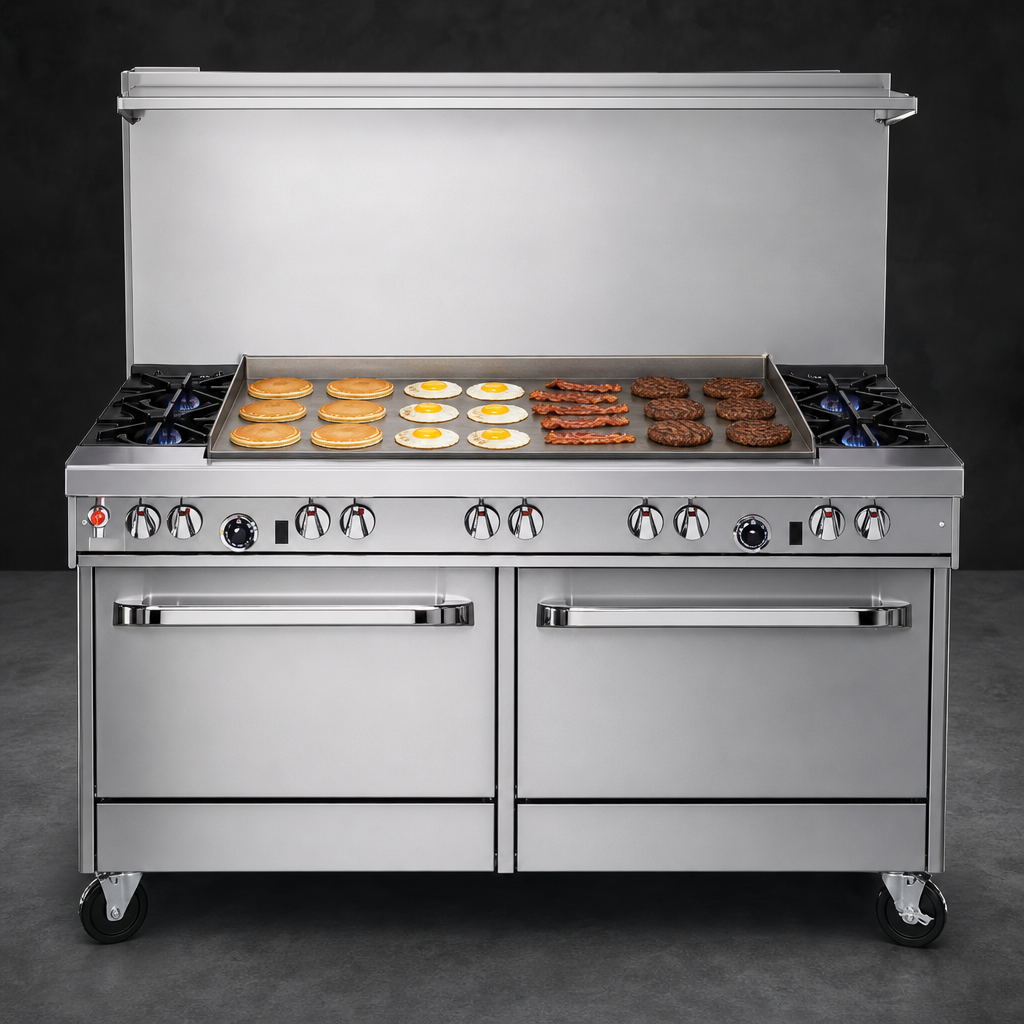

- 1" polished steel griddle (48" W × 27" D) for even, consistent heat across burgers, breakfast or stir-fry.
- (2) 27,000 BTU non-clog burners with cast-iron wavy grates—virtually plug-proof and perfect for 14" stock pots.
- Total input: 134,000 BTU/hr keeps pace with peak-hour demand.
- All-stainless exterior with 4" deep front rail and 22-1/2" flue riser featuring a handy storage shelf.
- Front-mounted 3/4" gas shut-off & factory regulator for quick, safe hookups.
- (2) full-size stainless cabinet bases store pans, utensils and dry goods—optional doors included at no charge.
- 6" adjustable stainless legs make leveling simple on any floor.
- Standing pilots for open burners—no electricity needed.
Technical specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Height w/ flue | 59 1⁄2" (1511 mm) |
| Griddle plate | 48" W × 27" D × 1" thick, polished steel |
| Open burners | (2) 27,000 BTU non-clog, standing pilot |
| Total BTU input | 134,000 BTU/hr |
| Gas connection | 3/4" NPT female (left side; moves to right if griddle ordered left) |
| Min. inlet pressure | 7" W.C. Natural / 11" W.C. LP |
| Base configuration | Dual stainless storage cabinets |
| Construction | Stainless front, sides, shelf & flue; cast-iron tops; porcelain drip trays |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (details) |
Perfect for
- Diners & breakfast houses needing maximum griddle real estate
- Food trucks and ghost kitchens looking for an all-in-one cook station
- High-volume restaurants that prep burgers, fajitas, eggs and sides simultaneously
Installation tip: When using cookware 12" or larger, place it toward the rear grate and never let pots overhang the 4" front rail. This prevents heat build-up and protects front-mounted components.
Designed for commercial use only. Must be installed under a code-compliant vent hood with adequate make-up air.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
34.0in
Shipping Weight
1075.0lbs
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Top
(2) open burners, (1) 48" griddle
Base
(2) cabinets
Specifications
Ultimate Restaurant Range, gas, 60", (2) non-clog burners, wavy grates, (1) 48" griddle right, standing pilot, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 134,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
